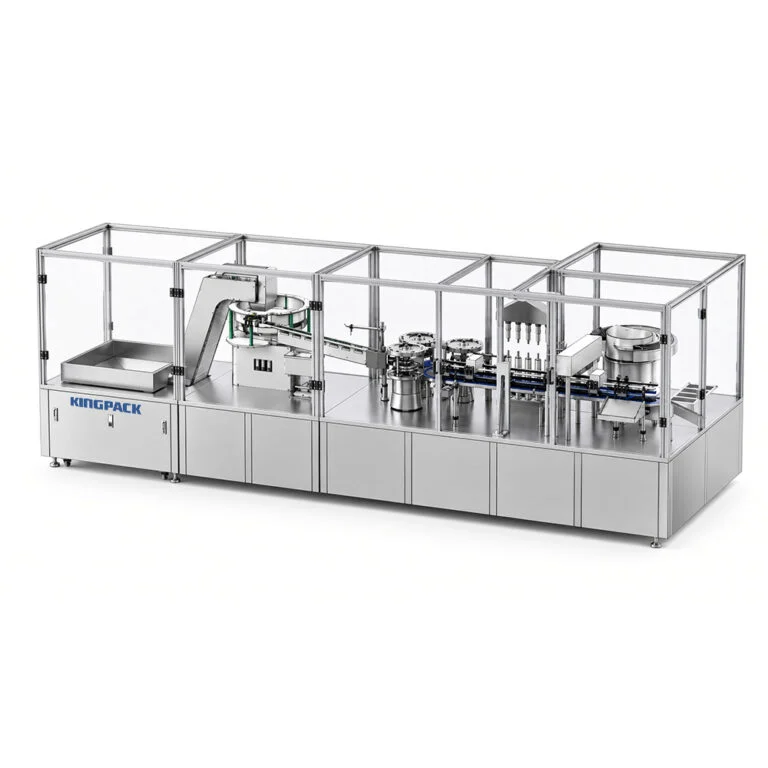

Build a fine-tip filling line around your intramammary syringe format.
A focused machine page for intramammary syringe manufacturers who need fine-tip entry, controlled dosing, clean cut-off, stopper handling and format changeover across 5–13 mL package sizes.
Match the line to your package drawing
Send the syringe format, fine applicator-tip geometry, target dose and closure sequence. The proposal is built around your approved package set and production target.
Why this format-specific line?
This page is about the intramammary syringe package and its station sequence—not a general veterinary filling platform. The key engineering questions are nozzle access, fill cut-off, stopper placement and repeatable format changeover.
Intramammary syringe format fit
Product scope for this page
Designed for intramammary veterinary products such as mastitis treatments, dry cow therapy and teat sealants that require fine applicator-tip entry, controlled dosing, clean cut-off and reliable stopper or plunger placement.
- Dairy cattle intramammary syringes
- Mastitis treatment and dry cow therapy formats
- Teat sealant and veterinary infusion products
- Single-dose dairy animal health formats
- Fine-tip front filling and stoppering
Intramammary syringe formats to test

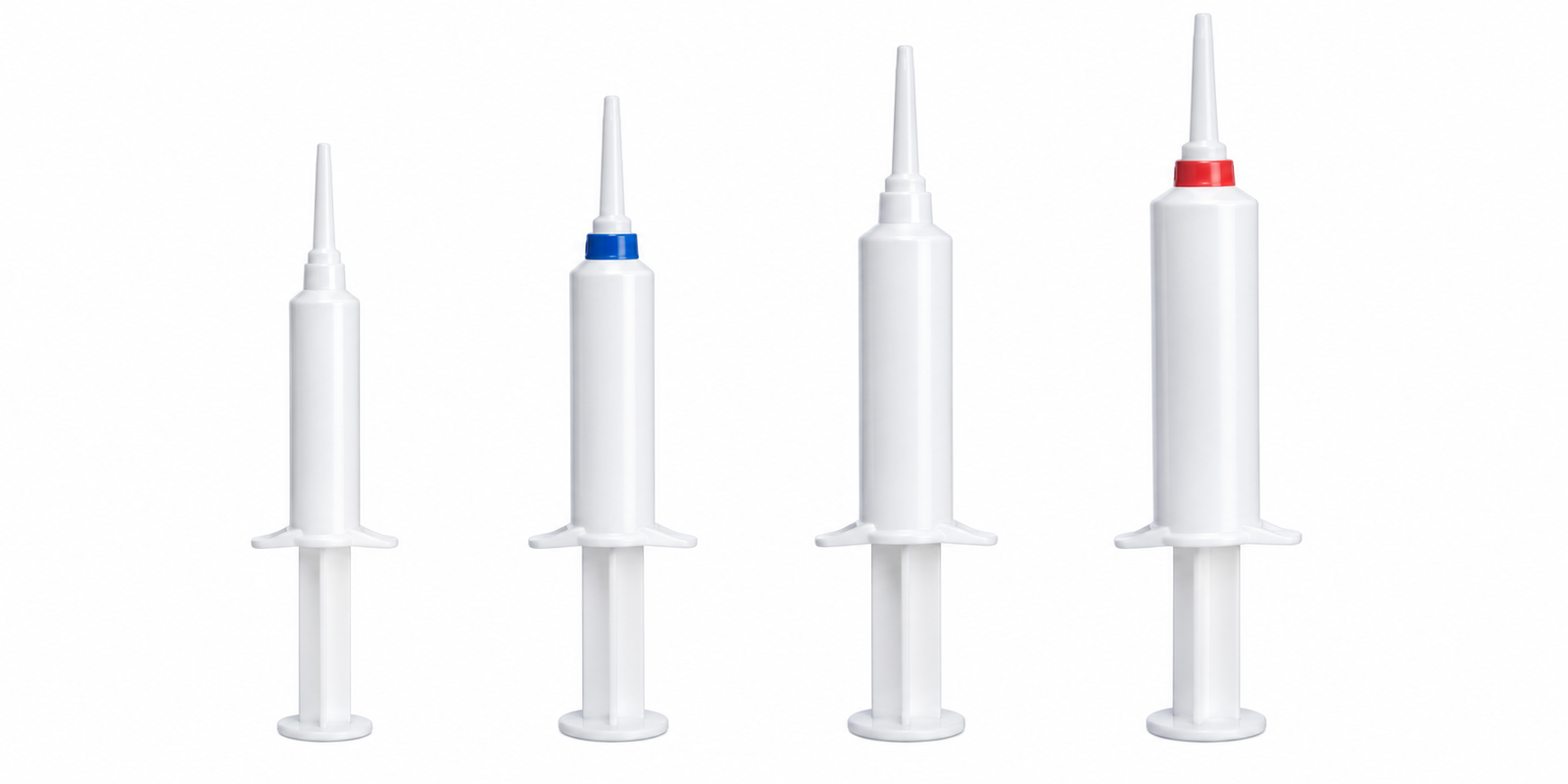

- Shown reference sizes: 5 mL, 8 mL, 10 mL and 13 mL
- Nozzle, barrel, plunger and closure fit
- Format-specific fixtures and change parts
- Fill weight, cut-off and stopper position checks
- Final acceptance based on supplied drawings and samples
Intramammary syringe station sequence
The page follows the package journey from empty syringe to closed, inspected unit. The exact station count depends on the supplied components and target output.
1. Orient and support
Index the syringe mouth-up and stabilize the barrel before product entry.
2. Fill through the mouth
Dose the intramammary product through the fine applicator tip and tune withdrawal or cut-off for a clean tip.
3. Insert stopper / plunger
Control seating depth, venting and insertion force for the selected format.
4. Inspect and discharge
Check fill presence, closure position, residue and reject conditions.
Machine options to define
5–13 mL changeover
Confirm barrel diameter, nozzle, stopper and fixture parts.
Product flow behavior
Provide product viscosity, temperature, air sensitivity and filling behavior.
Stopper sequence
Define stopper type, insertion depth and downstream cap handling.
Target production
Set cycle target, batch size and inspection requirements.
Inputs for a format-specific quotation
| Input | Examples | Used to define |
|---|---|---|
| Package | 5, 8, 10 or 13 mL; drawing and tolerances | Fixtures, indexing and change parts |
| Nozzle | Tip ID, length, cap and closure geometry | Entry tooling and cut-off motion |
| Product | Viscosity, temperature, stringing and air behavior | Transfer and dosing setup |
| Stopper | Type, insertion depth and acceptance limit | Stoppering station and inspection |
| Target | Dose tolerance, output and batch profile | Cycle design and FAT criteria |
Format trial and FAT acceptance
Testing for this page is centered on the intramammary syringe format, not a generic veterinary line demonstration.
Intramammary syringe machine details
The following detail views show the same fine-tip intramammary syringe package through indexing, filling, stopper insertion and discharge positions.

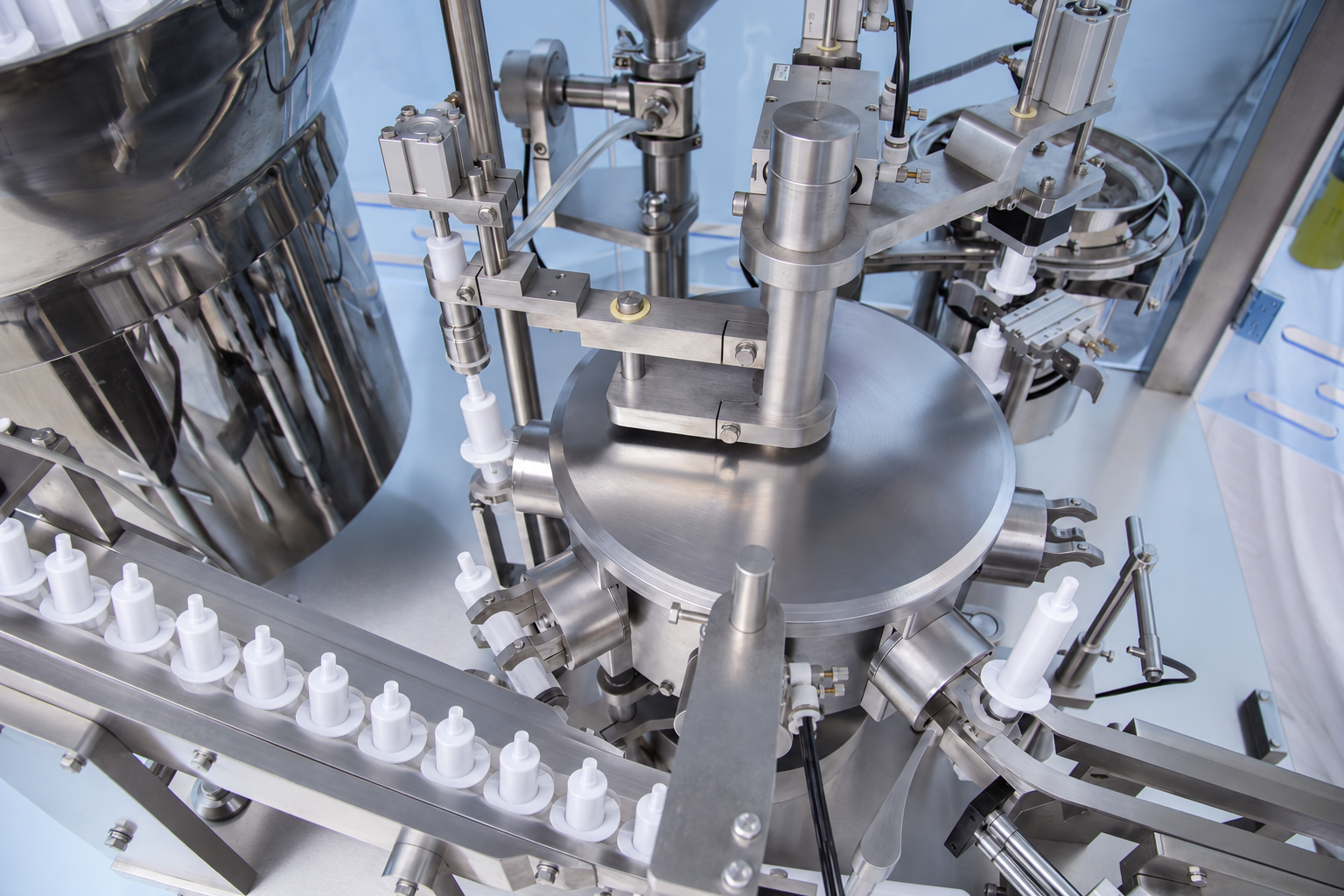

Indexing and package feeding
Fine-tip intramammary syringes are oriented and transferred into the rotary filling station.

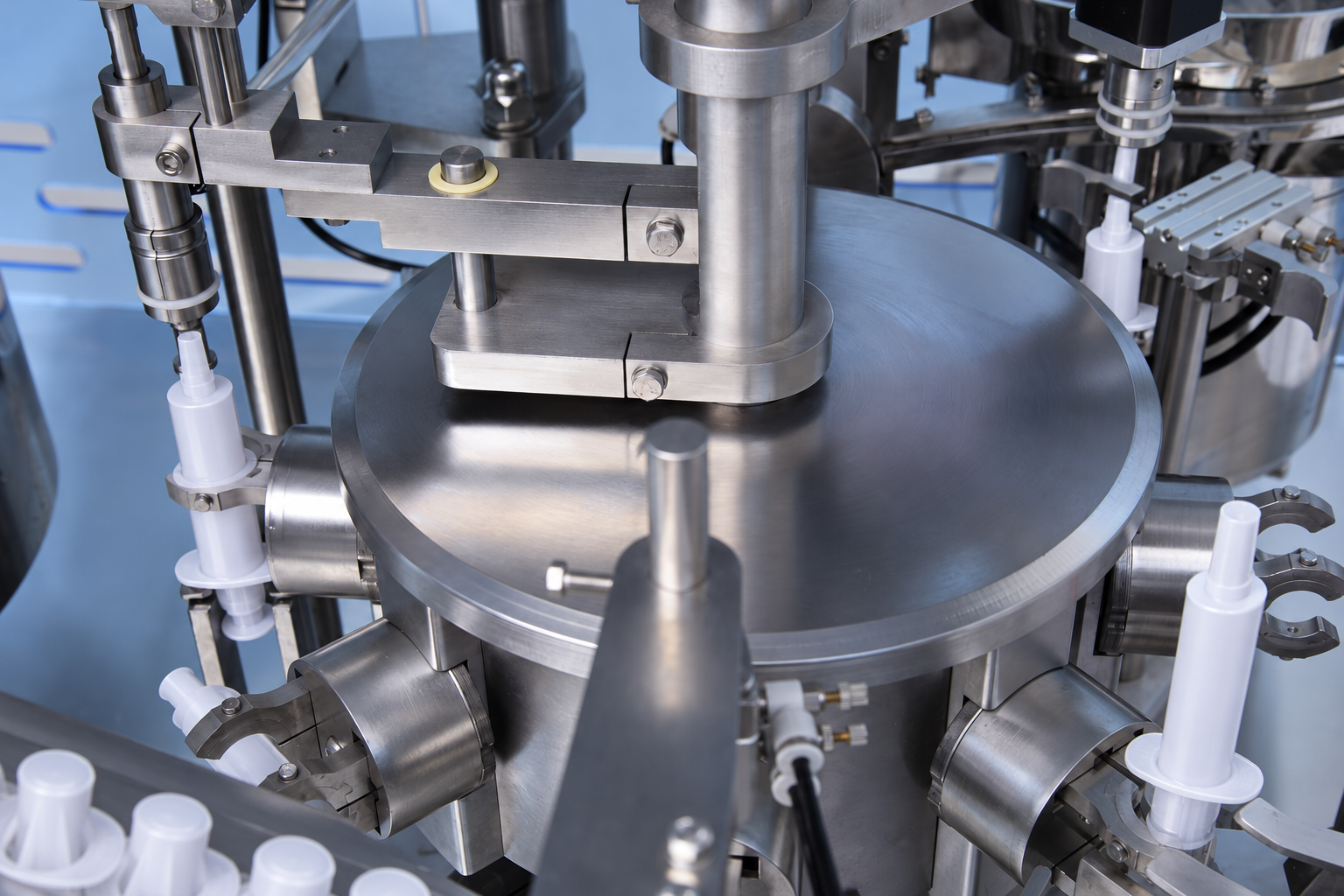

Fine-tip entry and dosing position
Fixtures support the syringe mouth while the fine-tip dosing head enters the package path.

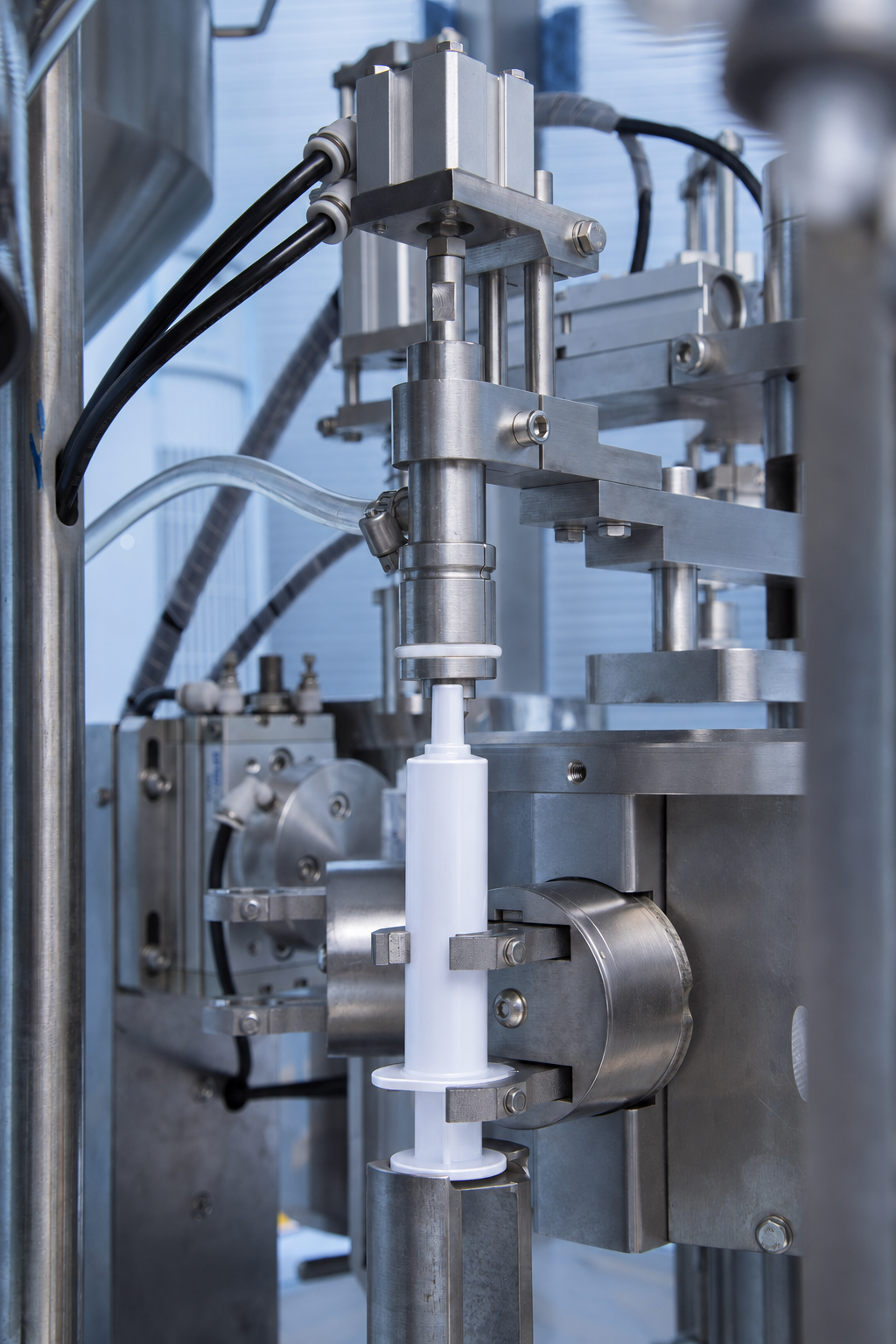

Stopper / plunger insertion
Vertical motion controls seating depth and alignment for the selected fine-tip syringe format.

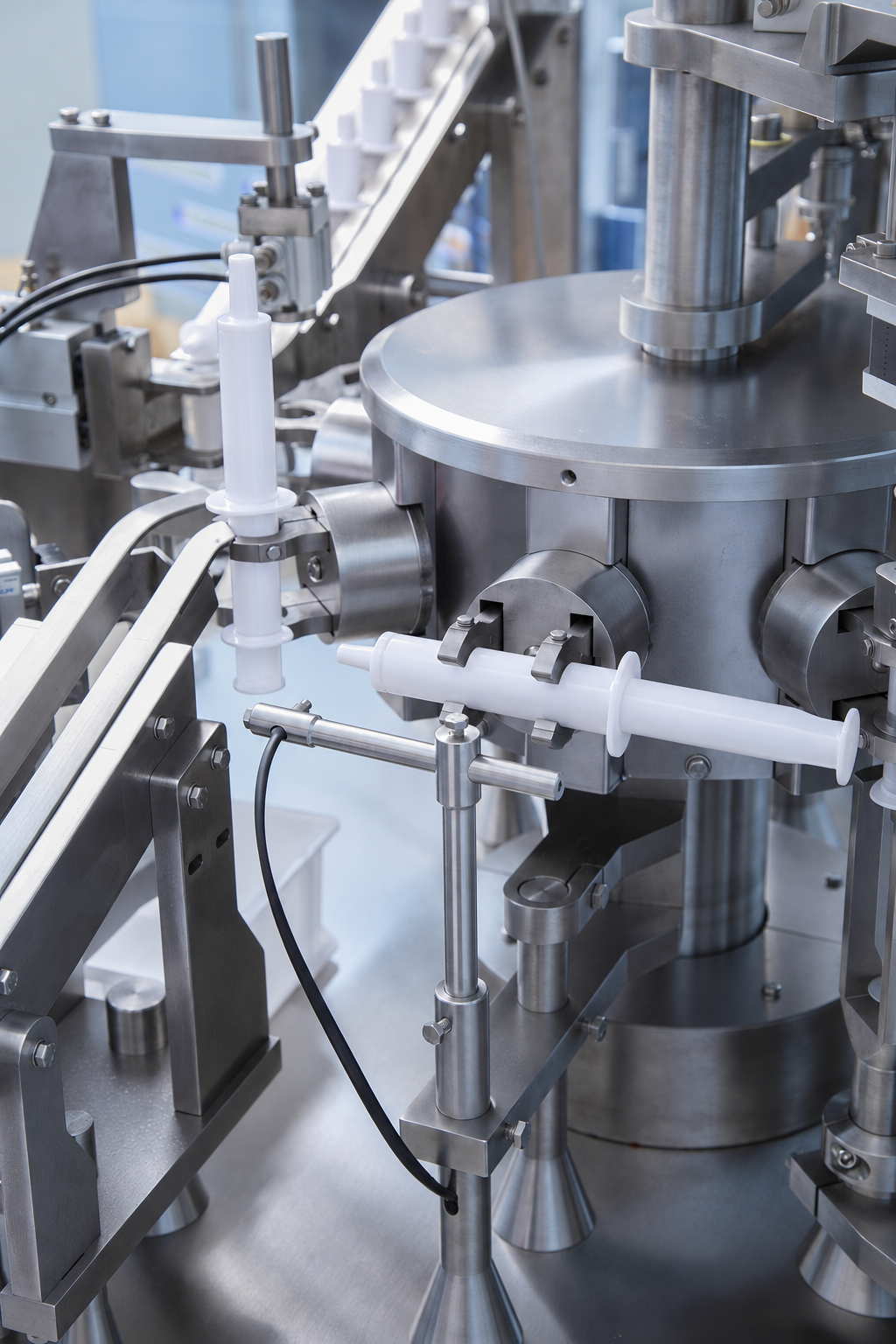

Transfer and discharge
Filled and assembled intramammary syringes move to the next packaging or inspection step.
More about veterinary syringe filling
Practical guides for intramammary products and other veterinary syringe formats, from package drawings to filling and stopper testing.
Veterinary Oral Paste Syringe Filling Machine Guide
How nozzle entry, high-viscosity product flow behavior and plunger placement shape the package sequence.
Read the guide →
Intrauterine Infusion Syringe Filling Line Guide
Prepare package drawings, dose targets, product flow data, stopper details and sample requirements.
Read the guide →
IQ OQ PQ Evidence Matrix for Veterinary Filling Lines
Review fine-tip dosing path, cut-off motion, residue control and format-specific testing.
Read the guide →Intramammary syringe format FAQ
Can the line cover 5–13 mL intramammary syringes?
That range can be evaluated when the barrel, nozzle, stopper and fixture dimensions are compatible. Confirm with drawings and samples.What does nozzle entry change?
It changes the support tooling, product path, cut-off motion and the order of stopper or plunger assembly.What should we send for a quotation?
Provide the complete syringe set, format drawings, product flow data, target dose, tolerance and output.Can stopper insertion be included?
Yes, when the stopper type, insertion depth and inspection criteria are part of the approved package sequence.Need support for your intramammary syringe line?
