Compare automated vs manual tube filling:

• Speed and productivity

• Accuracy of filling

• Labor costs

• Packaging consistency

The three most commonly used types of tube filling machines are:

1. The Fully Automatic Tube Filling Machine, which is an excellent choice for high-
volume manufacturing;

2. The Semi-automatic Tube Filling Machine, which is best suited for small-scalemanufacturing and is the most cost-effective option;

3. The Rotary Tube Filling Machine, which is a sort of machine that is available in bothfully and semi-automatic configurations, making it simple for companies to choosethe exact approach that best meets their production requirements.

The tube filler is designed to fill and seal semi-solid product tubes made of plastic, aluminum, and laminate.

This machine automatically fills laminate, aluminum, or plastic tubes with products like ketchup, gel, ointment and seals the bottom using a heat sealer or crimper. The tube feeder receives tubes manually. A single transfer crank will flip a tube upright on the holder. The indexing mechanism indexes the tube to the transfer port where the pusher will transport semi-solid materials to the pump delivery of the filling machine. The sealed design requires vacuum or sanitary pumping delivery of semi-solid materials into the tube. It fills the tube to a controllable volume. Heat sealer or laminate crimper seals the bottom of the filler tube at the seat station. The transport arm transfers the sealed tubes from the machine discharge.

Critical Process Parameters (CPP)

The system must allow for the configuration of oil CPPs. Parameter values, such as conducted, may be defaulted to the parameter to reduce data repetition. Also give are initial and default CPP values. The system will monitor continuously with digital display, audio alarms, and HM alarm messages.

Production Capacity

The Tube Filling Machine is expected to achieve the following filling weights and speeds. Different models provide filling rates from 30 to 60 tubes per minute.

Critical Quality Attributes (CQA)

Critical quality attributes unique to the system must be met at all times by the tube filler.

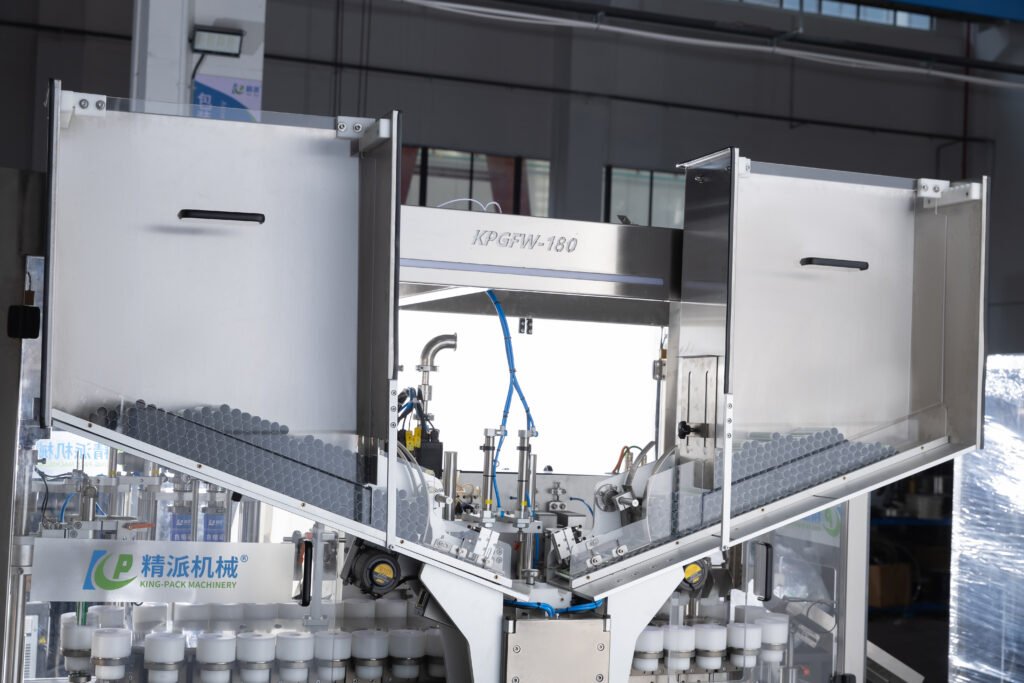

Tube Feeding

Convenient essential loading into the magazine and automatic tube feeding into the dosing station is essential for the tube filler. A vertical position at the dosing station is necessary for the supplying tubes. The tubes open bottom is up.

Tube Dosing

• Flexible air blow or vacuum dust application must clean the tube inside. The cleaning station’s pressurized air duct operates with a terminal filter.

• The filling machine’s vacuum or sanitary pump will transfer products from a movable container or tank to the heated hopper with minimal product left in the temperature.

• A jacketed hopper equipped with a scraper will maintain product uniformly and temperature.

• Modify the central dosage volume using the adjuster. The operational terminal adjusts dosage amount and speed.

• The dosing system will immediately notify the user if a tube is missing.

Tube Sealing

• Tube closure devices must seal aluminum and laminate tubes for regular, double, and saddle folds.

• Thermoseal with high-frequency heated jaws and hot air seal plastic tubing. Designer set customization.

• This terminal will allow for outer tube encoding.

King Pack is a well-known manufacturer of tube filling and sealing machines in China, developing excellent relationships with more than 100 clients globally. King Pack offers an excellent model and a variety of modifications of tube filling and sealing machines to successfully fulfill the needs of clients’ businesses and projects effectively.

King Pack supports OEM/ODM tube filling and sealing machine services. Therefore, the machine’s dimensions, widths, lengths, ranges, structural design, power tolerance, speed, and volume are highly customizable, designed to meet the clients’ specific needs.

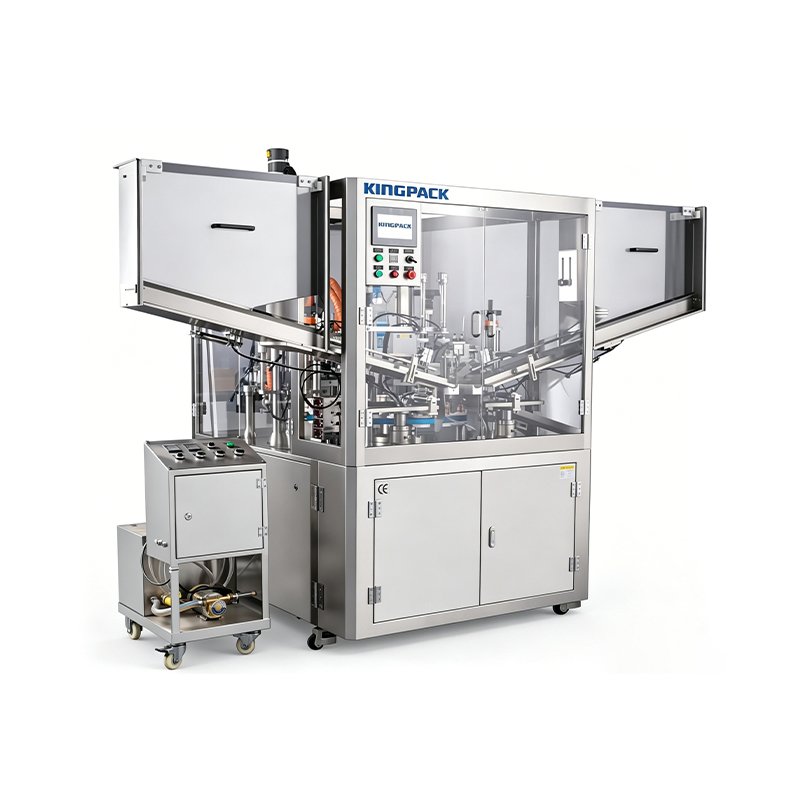

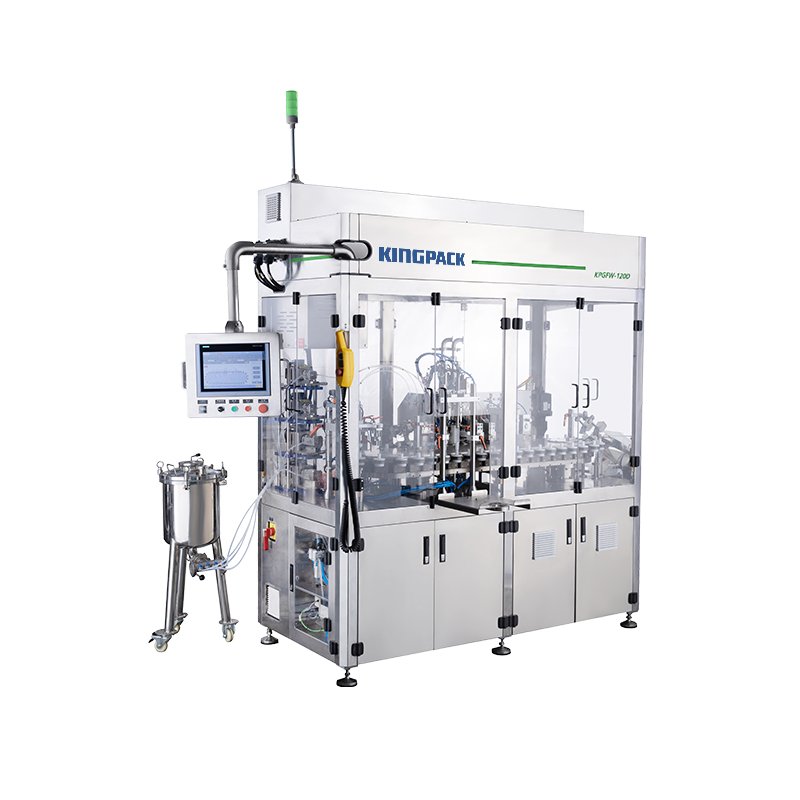

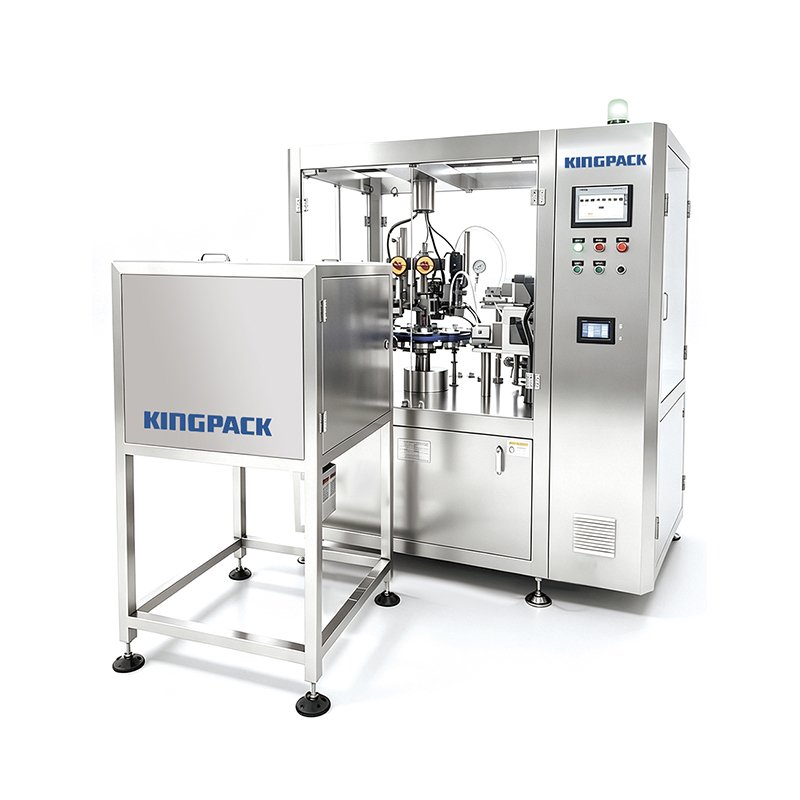

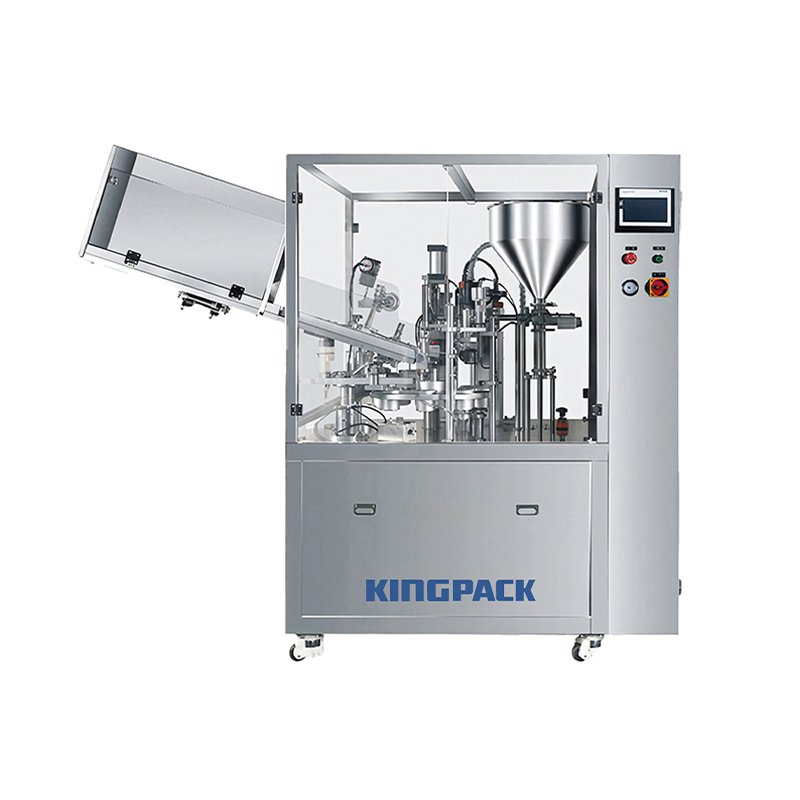

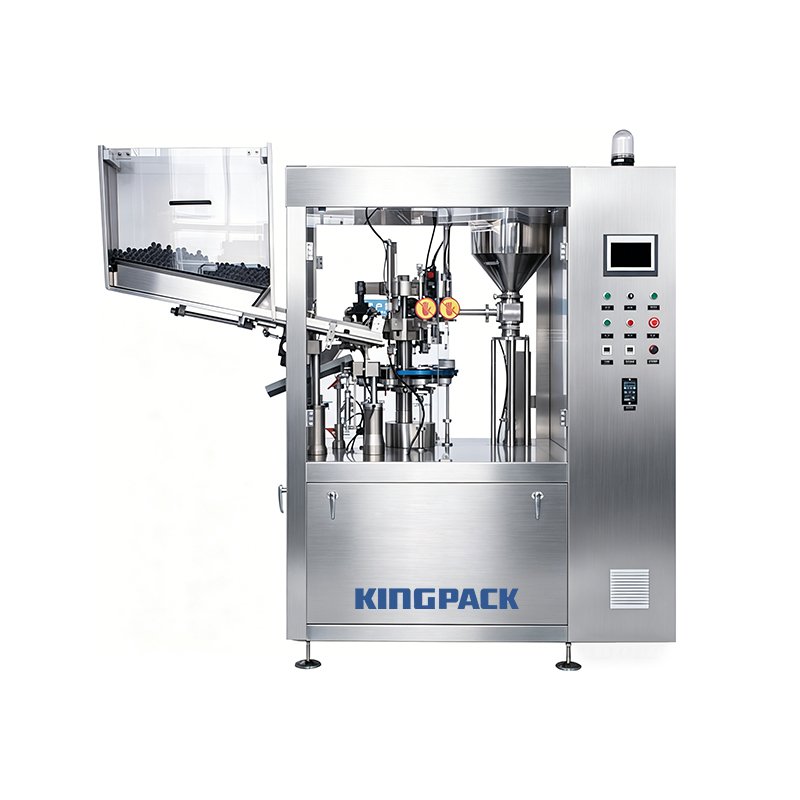

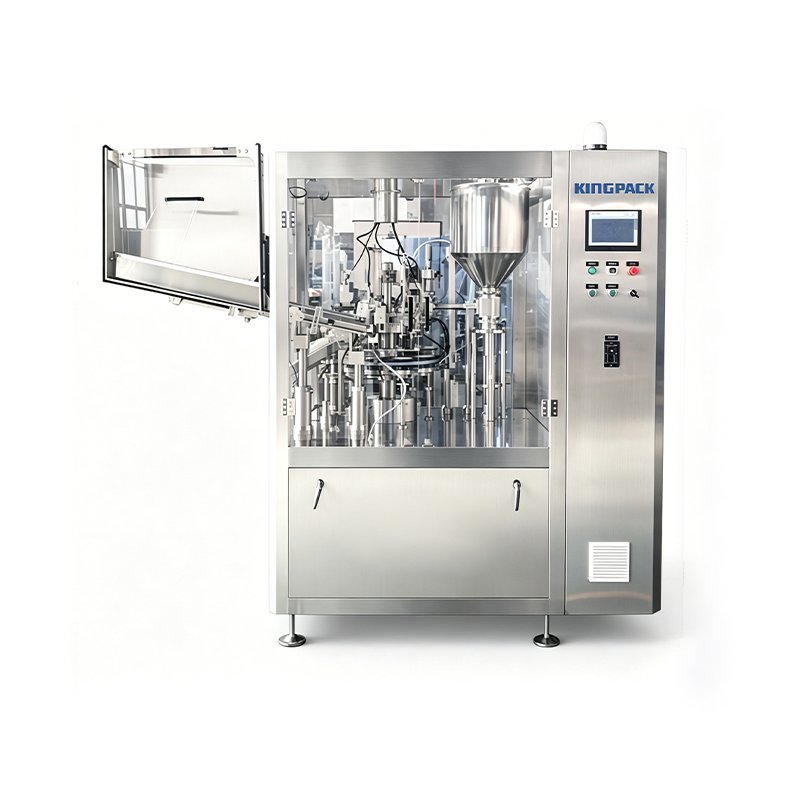

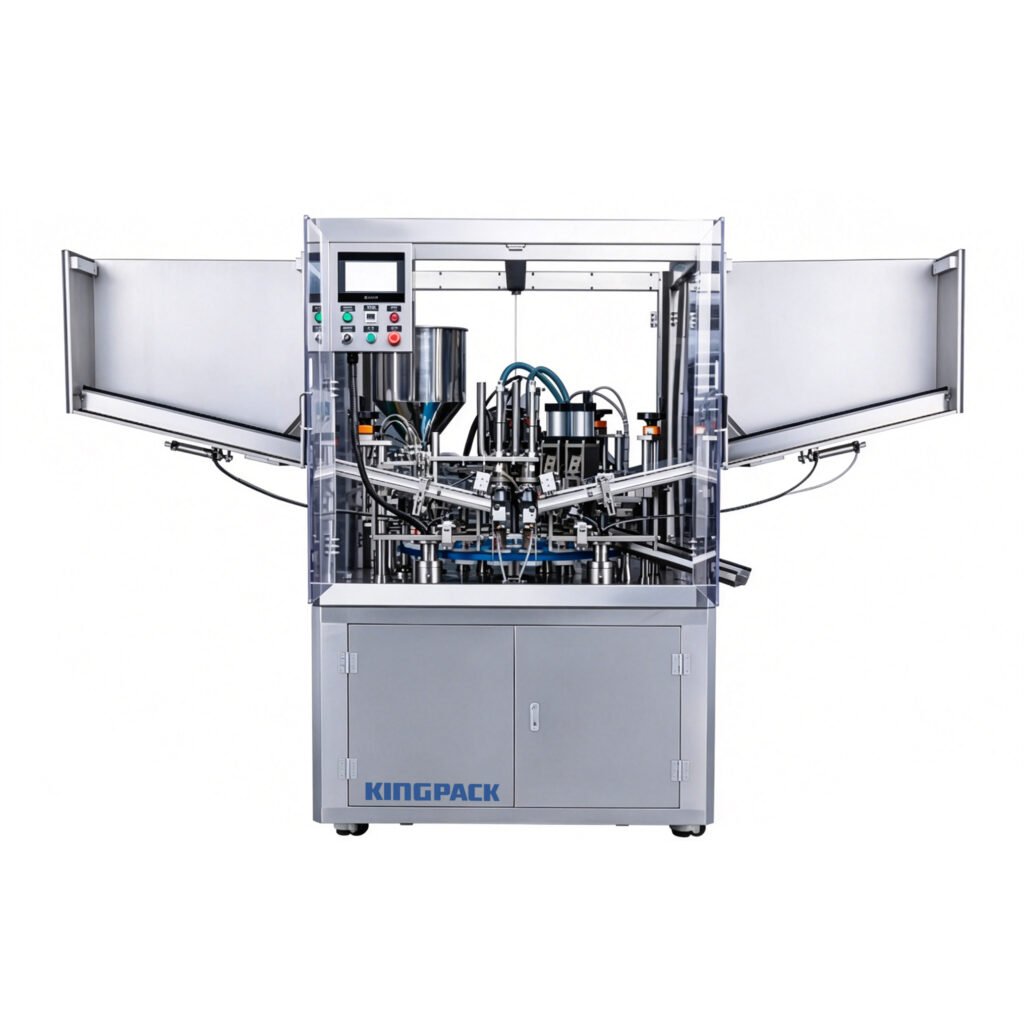

King Pack Tube Filling and Sealing Machine

How Our Automatic Tube Filling and Sealing Machine Meets Your Tube Packaging Needs

Our tube filling and sealing machines fill and seal polyethylene and laminated tubes. These machines can handle different products in tubes such as:

• Toothpaste

• Shampoo

• Ointment

• Cream

• Gel

• Adhesives, sauces, and grease

Tube filling and sealing machines are used to pack substances with varying flow and viscosity properties. The machines are built to GMP standards and are perfectly suited for filling and sealing aluminum and laminated tubes.

The Different Types of Tubes for Tube Filling and Sealing Machines

During the filling and sealing operation, the machine utilizes parameters optimized for the specific tube type and product being filled. Supported tube types include:

• Plastic co-extruded tubes

• Laminated tubes

• Metal collapsible tubes

• Aluminum tubes

The tube filling and sealing machine works fully automatically to load, fill, seal, label dates, and discharge finished tubes seamlessly.

The Advantages of Using a King Pack Tube Filling and Sealing Machine

• Increased Manufacturing Productivity: The tube filling lines enable companies to process products rapidly. Due to its high speed and precision, it significantly improves manufacturing efficiency.

• Strategic Cost Reduction: Operating an automated tube filling and sealing machine minimizes unnecessary manual labor expenditures, offering a cost-saving production solution.

• Enhanced Consistency and Reliability: The filling machinery delivers exceptional uniformity and dependability throughout the entire production cycle.

• Minimized Product Waste: Highly effective and precise dosing systems drastically reduce raw material waste and overfills.

Tube Filling and Sealing Machine Operation

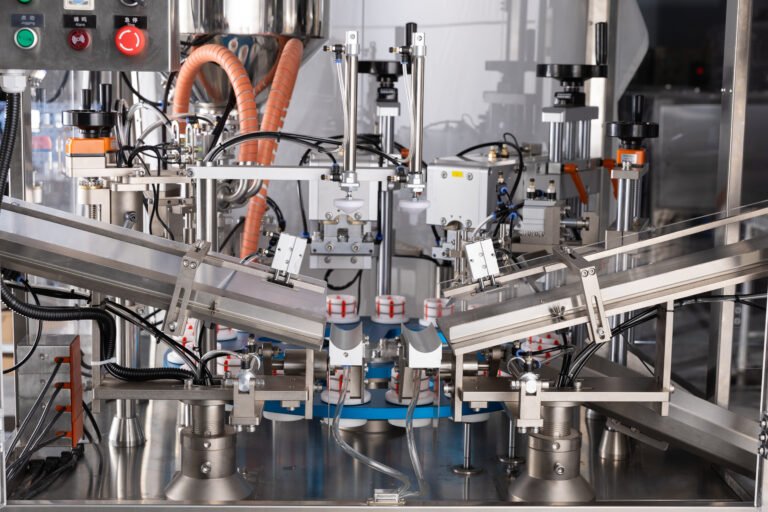

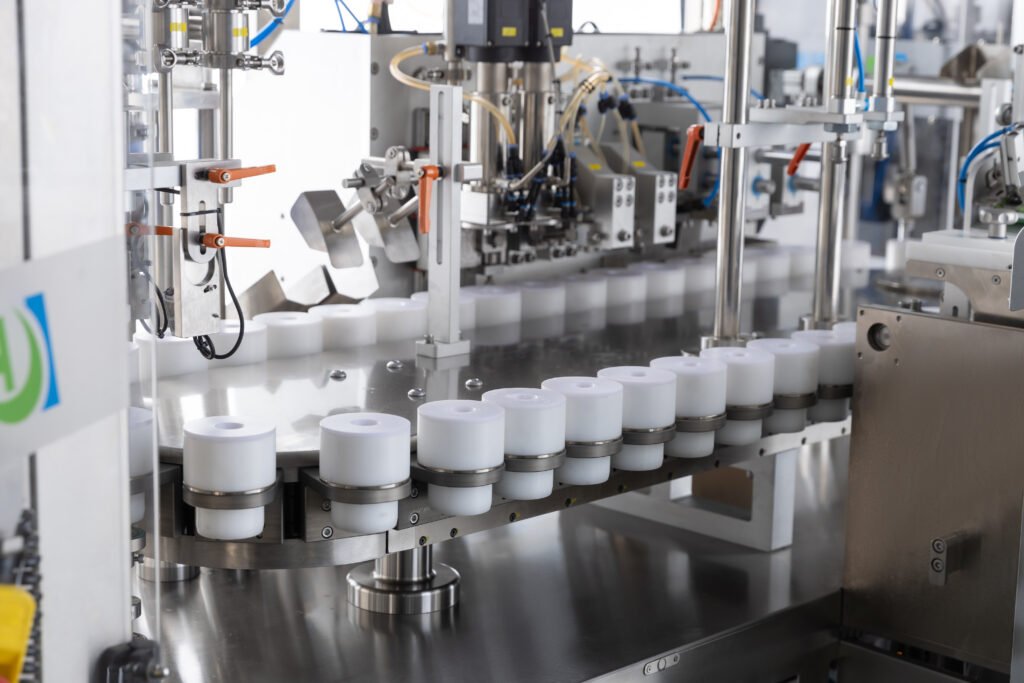

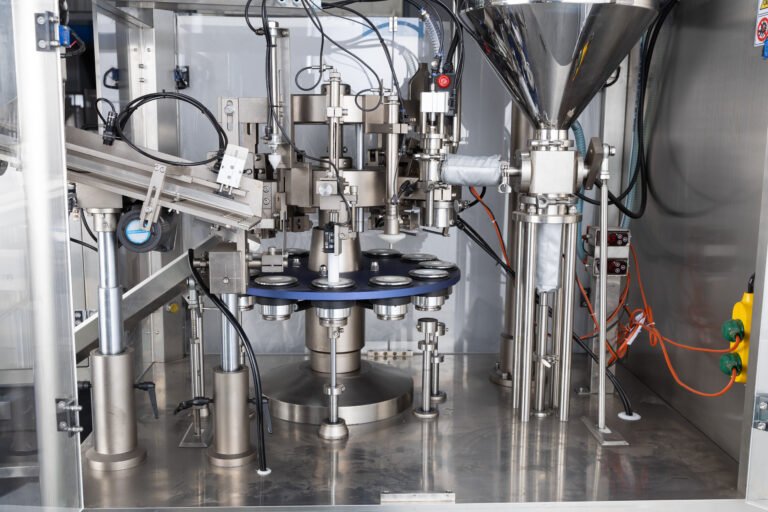

The tube filling machine operates in a fully automated manner. At the starting station, tubes are securely mounted onto a circular index plate. Following precise volumetric filling, the tubes advance to the next stage for tail sealing or folding (depending on material). Once sealed, they proceed directly to the coding station for batch embossing before being cleanly discharged as finished, retail-ready products.

Tube Filling and Sealing Machine Process

Plastic Tube Filling and Sealing Machine dispenses cream, gel, and ointment into aluminum and plastic tubes; these tubes are then sealed with a sealing device.

Starting by manually feeding tubes into the tube feeder, then a single chute transfers tubes and turns the bottom up.

From there, rotation wheels move the tubes to the dosing station, while a mobile vessel will transfer the semi-fluid product to the filling machine. A vacuum or sanitary pump will supply the filling machine with semi-fluid products to fill the tube using adjustable volume, then travel to the sealing station. Finally, the sealed tube moves onward.

The tube filling and sealing machine works fully automatically. Discharge hoses automatically, fill, seal, label dates, and run other functions.
