A toothpaste filling machine doses paste into preformed tubes, removes product from the sealing area, closes the tube tail, applies a batch code and discharges the finished package. A complete toothpaste packaging machine must match the paste rheology, tube material, fill range, seal method, output and cleaning plan. For equipment configurations, see our tube filling and sealing machines.
Toothpaste Filling Machine Selection at a Glance
| Application requirement | Common starting point | What to verify |
|---|---|---|
| Standard plastic or laminate toothpaste tube | Automatic tube filler with internal hot-air sealing | Tube structure, seal window, cooling and trimming quality |
| Aluminum toothpaste tube | Tube filler with folding and crimping station | Fold pattern, coating damage, code position and leak resistance |
| Very thick or abrasive paste | Servo-controlled piston or suitable positive-displacement dosing | Product path, pressure, nozzle cut-off, wear and cleaning access |
| Striped or multi-component toothpaste | Validated multi-channel filling arrangement | Stripe definition, component ratio, start-up waste and changeover |
| Many tube sizes or frequent SKU changes | Recipe-controlled machine with dedicated change parts | Changeover time, holder sizes, nozzle setup and coding adjustment |
How Toothpaste Tubes Are Filled and Sealed
- Tube loading: empty tubes are loaded manually or fed from a magazine into indexed holders.
- Orientation: an eye-mark sensor rotates the printed tube so the seal and code align with the artwork.
- Paste supply: prepared toothpaste is transferred from a holding vessel to the filling system under controlled conditions.
- Dosing: the nozzle enters or approaches the tube and dispenses the target amount while controlling air pockets and tailing.
- Seal-area protection: the product level and nozzle cut-off must keep the tube tail clean enough for reliable sealing.
- Closing: plastic and laminate tubes are heat-sealed or sealed by another validated process; aluminum tubes are folded and crimped.
- Coding and trimming: the machine forms the finished tail, applies the required code and removes excess material where applicable.
- Inspection and discharge: finished tubes are checked against defined filling, seal, appearance and coding criteria.
Product Preparation and Paste Feeding
Stable filling starts upstream. Toothpaste viscosity and flow behavior can change with temperature, aeration, formulation and shear history. The holding and transfer system should deliver paste consistently without introducing excessive air or separating components. Hopper geometry, pipe diameter, hose length and transfer pressure can affect the filler even when the dosing unit itself is unchanged.
Projects involving vacuum mixing or deaeration should coordinate the preparation vessel, transfer pump and filler as one process. Our guide to vacuum emulsifying and mixing equipment explains the upstream principles.
Choosing the Toothpaste Dosing System
Servo piston filling
Servo-controlled piston dosing is commonly considered for viscous toothpaste because the dose can be adjusted through controlled piston movement. Cylinder size, valve design, nozzle diameter and product path must suit the fill range and paste. A catalog accuracy statement is not enough; repeatability should be tested with the actual product over the intended operating range.
Positive-displacement pump filling
A suitable positive-displacement pump can support continuous product supply and recipe control. Pump type should be selected with attention to viscosity, abrasiveness, entrained air, allowable shear, pressure and cleanability. The supplier should also explain how the system behaves at start-up and near the end of a batch.
Striped toothpaste filling
Striped toothpaste requires more than a standard single-product nozzle. Multiple components must arrive at the correct ratio and position without losing visual definition. Trials should cover start-up, steady production and restart conditions. See our separate explanation of striped toothpaste filling and rheology.
Tube Materials and Sealing Methods
| Tube type | Typical closing method | Main process checks |
|---|---|---|
| Plastic tube | Internal hot-air sealing or another validated heat process | Heating window, pressure, cooling, trimming and appearance |

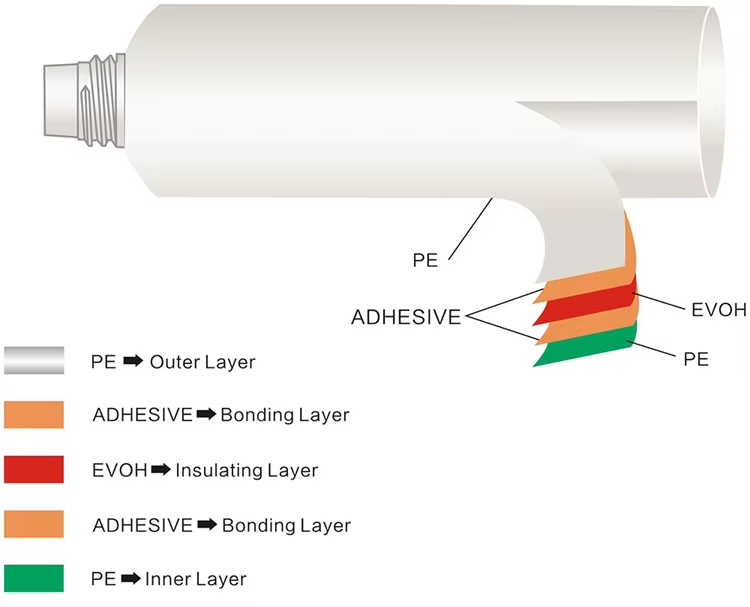

| Plastic barrier laminate tube | Heat sealing | Layer construction, delamination risk and seal strength |
| Aluminum barrier laminate tube | Validated heat-sealing setup | Barrier structure, edge condition and supplier trial results |
| Aluminum tube | Folding and crimping | Fold geometry, internal lacquer condition and leak performance |
One toothpaste tube filling machine may handle several formats, but “compatible” should mean demonstrated with the actual tube construction and dimensions. Different tube diameters normally need holders and other change parts. A switch between heat-sealed and aluminum folded tubes may require different stations or a different machine configuration.
What Causes Toothpaste Tube Seal Failures?
| Defect | Possible causes to investigate |
|---|---|
| Weak or leaking seal | Product contamination in the tail, insufficient heat or pressure, short dwell time, incompatible tube structure |
| Burning or distortion | Excessive heat, poor cooling, incorrect station height or unstable tube positioning |
| Wrinkles or uneven tail | Misalignment, variable tube dimensions, incorrect tooling or uneven pressure |
| Paste strings or product on the tube wall | Nozzle cut-off, withdrawal timing, product aeration or unsuitable nozzle geometry |
| Code or seal misalignment | Eye-mark detection, tube rotation, holder play or recipe setup |
Troubleshooting should use measured settings and retained samples rather than changing several parameters at once. Record temperature, pressure, dwell time, product condition, tube lot and machine station so the cause can be isolated.
Filling and Seal Quality Checks
- Net content: define the target, permitted variation, sampling plan and measurement method.
- Seal integrity: agree on a suitable leak or seal-strength test for the product and tube.
- Appearance: set limits for wrinkles, burn marks, tail shape, trimming and print alignment.
- Code quality: confirm position, legibility and data accuracy.
- Product cleanliness: inspect the cap, tube shoulder, exterior and sealing area for paste contamination.
Cleaning, Changeover and GMP Planning
Cleaning requirements depend on the formulation, factory procedures and risk assessment. Review every product-contact part, including hopper, pump, cylinder, valves, hoses, nozzles and seals. Ask how parts are drained, removed, inspected and reassembled, and how cleaning effectiveness will be verified. “CIP-ready” should be translated into a documented cleaning sequence with defined coverage and limits.
For regulated or quality-controlled production, equipment design is only one part of compliance. User procedures, qualification, maintenance, calibration and records also matter. Read our overview of GMP planning for toothpaste filling and packaging equipment.
Semi-Automatic vs Automatic Toothpaste Packaging Machines
| Configuration | Suitable situation | Trade-off |
|---|---|---|
| Semi-automatic filler and sealer | Development, small batches or frequent manual changeovers | Lower investment but greater operator dependence |

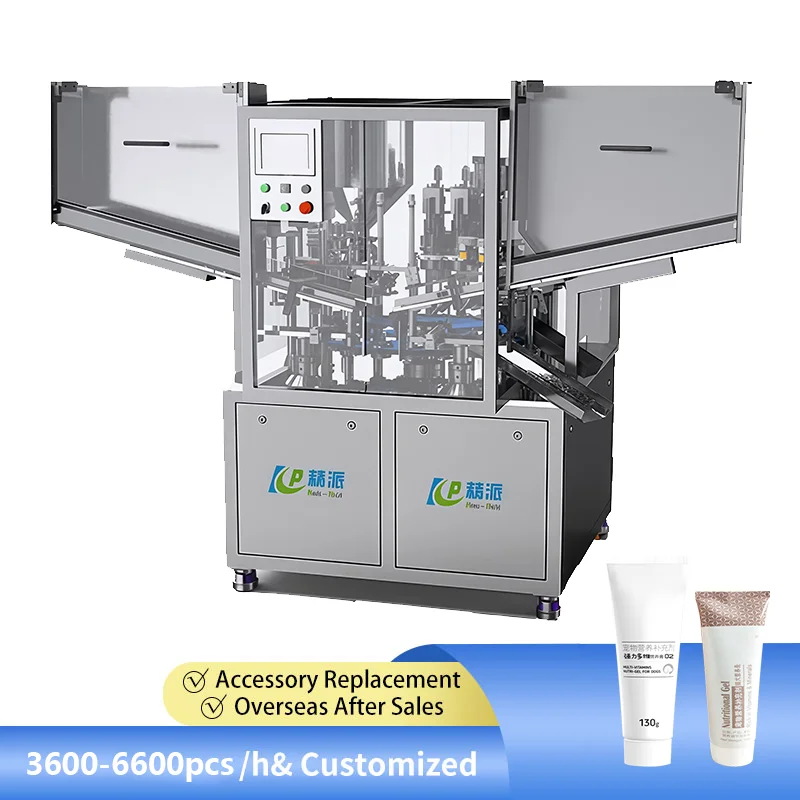

| Automatic rotary tube filler | Stable commercial production with repeatable formats | Higher output, but more engineering and change parts |
| Integrated packaging line | Projects requiring cartoning, coding, inspection or case packing | Better flow, but line balancing and interfaces must be validated |
Compare suppliers using sustained accepted output, not a theoretical maximum. The test should include tube loading, orientation, filling, sealing, coding and rejection with the actual product and packaging components. If downstream cartoning is slower than the tube filler, the system output is limited by the slower station.
Information to Include in Your RFQ
- Tube material, layer structure, diameter, length, cap and print mark
- Smallest and largest fill weights or volumes
- Paste viscosity range, temperature, density, abrasiveness and aeration tendency
- Single-color, striped or multi-component product requirement
- Target accepted output for each format and the number of shifts
- Seal, code, trimming and appearance acceptance criteria
- Cleaning procedure, changeover frequency and target changeover time
- Utilities, factory layout and upstream or downstream interfaces
Factory Acceptance Test Checklist
Use normal production tubes and the actual paste, or an agreed surrogate with similar relevant behavior. Run each required format long enough to evaluate stable operation. Record output, fill results by station, tube-orientation errors, seal defects, rejects, changeover time, alarm recovery and cleaning observations. Any deviation should have an agreed corrective action before shipment.
Toothpaste Filling Machine FAQ
Can one machine fill both plastic and aluminum tubes?
Possibly, but the closing methods differ. Plastic and laminate tubes are generally heat-sealed, while aluminum tubes are folded and crimped. The machine must be designed with the correct stations and change parts, and both formats should be tested.
Which filler is suitable for thick toothpaste?
Servo piston and suitable positive-displacement systems are common starting points. Final selection depends on viscosity, abrasiveness, aeration, fill range, required output and cleaning method.
How is toothpaste prevented from entering the sealing area?
The correct fill level, nozzle insertion and withdrawal, nozzle cut-off and tube handling keep paste below the tail area. Process stability and tube dimensions still need verification during trials.
What determines the output of an automatic toothpaste filling machine?
Output depends on the number of stations, dose, product flow, tube loading, sealing cycle, coding, inspection, reject rate and downstream equipment. Ask for accepted line output using your actual format.
Plan Your Toothpaste Tube Filling Line
KING PACK can configure product feeding, tube filling, sealing or folding, coding and downstream packaging around your tube and process. Explore our packaging solutions, review the industries we support, or send your tube and toothpaste requirements for a technical proposal.
