Veterinary syringe filling specialist

Veterinary Syringe Filling Solutions, Built Around the Product

KINGPACK engineers the filling route, syringe handling, plunger insertion and inspection around your formulation and package—not around one fixed machine.

Paste · Gel · CreamMaterial-specific feeding and cut-off
Suspension · LiquidStable dosing and air control
Sample-to-FATConfiguration confirmed with real materials
Discuss Your ApplicationSee Filling Routes
Veterinary syringe filling line machineMulti-head front filling line · machine reference
Filling direction

Front Filling or Rear Filling?

The correct direction follows the syringe structure, component supply state and product behavior.

Veterinary syringe front filling station
Machine reference
Nozzle-end entry

Front Filling

Product enters from the nozzle end before the remaining package components are assembled.

IntramammaryUterine applicatorsGel bait
Rear filling and plunger insertion for oral paste syringe
Machine reference
Barrel-tail entry

Rear Filling

Product enters through the open barrel tail, followed by controlled venting and plunger insertion.

Oral pasteNutrition gelToothed plunger
Rear-filling machine reference

One Platform Reference, Configured by Application

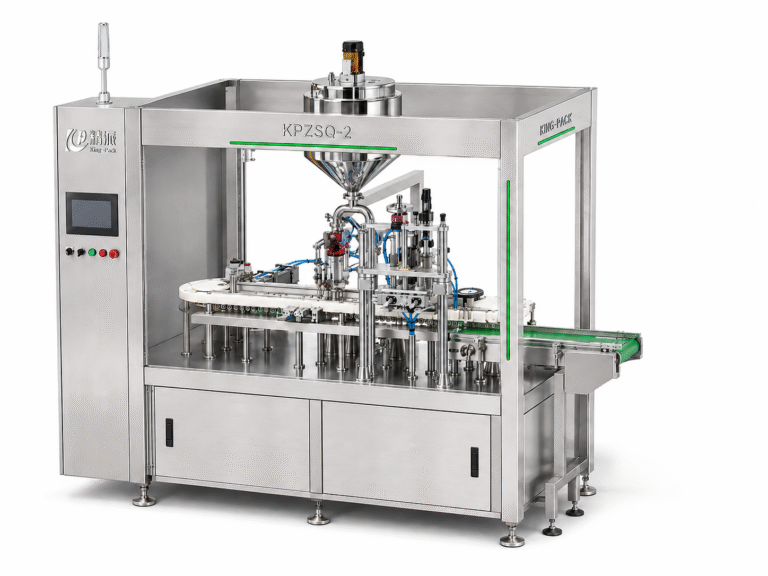

The KPZSQ-2 illustrates a rear-filling platform for high-viscosity paste. It is a machine reference—not the definition of the complete veterinary syringe range.

Material pathFeeding and dosing selected after product trials
Package pathFixtures and insertion sequence built from approved samples
Acceptance pathFinal settings confirmed through sample tests and FAT
KPZSQ-2 rear filling machine reference for high-viscosity paste
Modular engineering

Your Solution Is a Combination of Process Modules

Only the modules required by the formulation, syringe and quality criteria are integrated.

Product-led

Viscosity, temperature, settling, foam and stringing determine the contact path.

Package-led

Tip, barrel, plunger and closure determine orientation and assembly.

Evidence-led

Samples and acceptance criteria determine what is tested and recorded.

Veterinary syringe filling line sample testingSample test reference
Media-library reference image. No customer name or project claim is implied.
Sample-to-FAT validation

What We Confirm Before Acceptance

Professionalism is shown through documented trials with the actual product and package.

Filling ResultRepeatability, air residue, stringing and nozzle cleanliness.
Package CompatibilityPosition, deformation, insertion force, orientation and leakage.
FAT RecordApproved samples, line behavior, changeover and cleaning points.
Technical FAQ

Questions We Resolve Before Recommending Equipment

Is the product a liquid, suspension, cream, gel or paste?

This determines the dosing principle, hopper, transfer method, nozzle and whether heating or agitation should be evaluated.

Should the syringe be filled from the front or rear?

The route depends on how the barrel, tip closure, piston and plunger are supplied and assembled. We confirm it from samples.

What package samples are required?

Please provide the complete syringe set, drawings, tolerances, bulk packing and the supply state of each component.

What determines final speed and accuracy?

Formulation behavior, target dose, package tolerances, feeding stability and the agreed quality criteria.

Talk to engineering

Tell Us About Your Veterinary Syringe Project

Share your formulation, syringe samples and production target. Our engineering team will recommend a practical filling route and sample-test plan.

Contact Our Engineering Team
Dosage-form engineering

Different Formulations Need Different Process Routes

We start with how the material behaves, then configure the contact path, dosing and assembly modules.

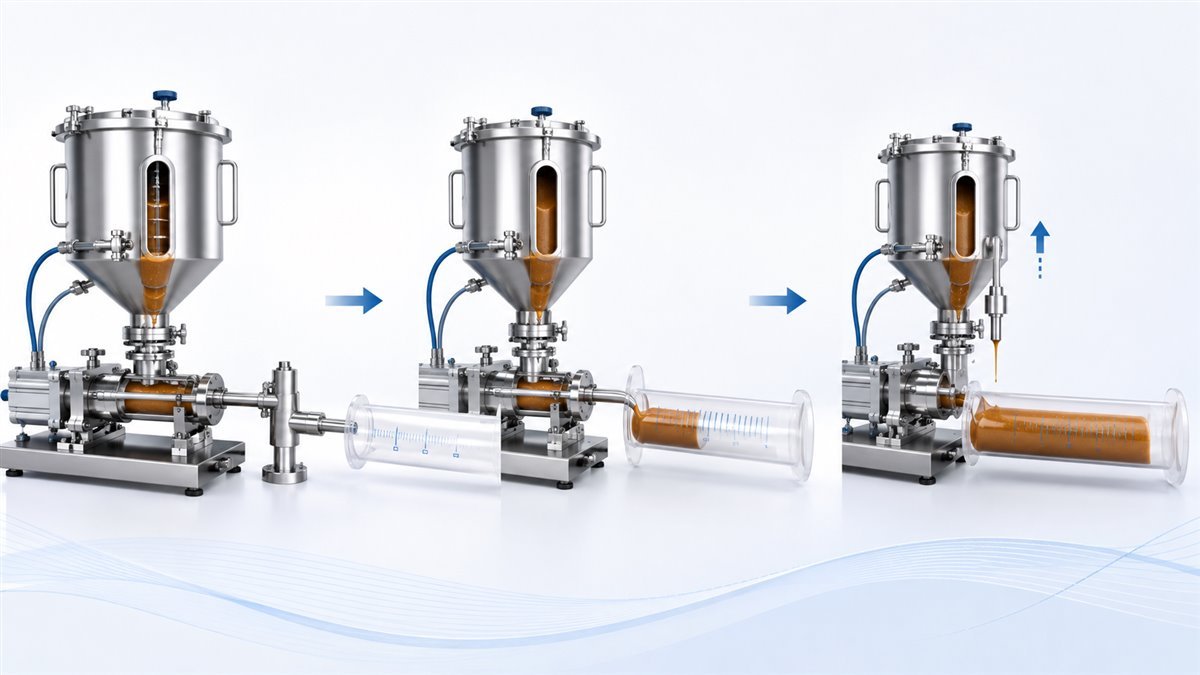

High-viscosity veterinary paste rear filling process diagramProcess diagram
A
Paste · Gel · Cream · Sealant

High-Viscosity Paste Route

  • Evaluate the product at its real filling temperature
  • Match hopper, transfer and dosing to material resistance
  • Tune nozzle withdrawal, cut-off and plunger venting

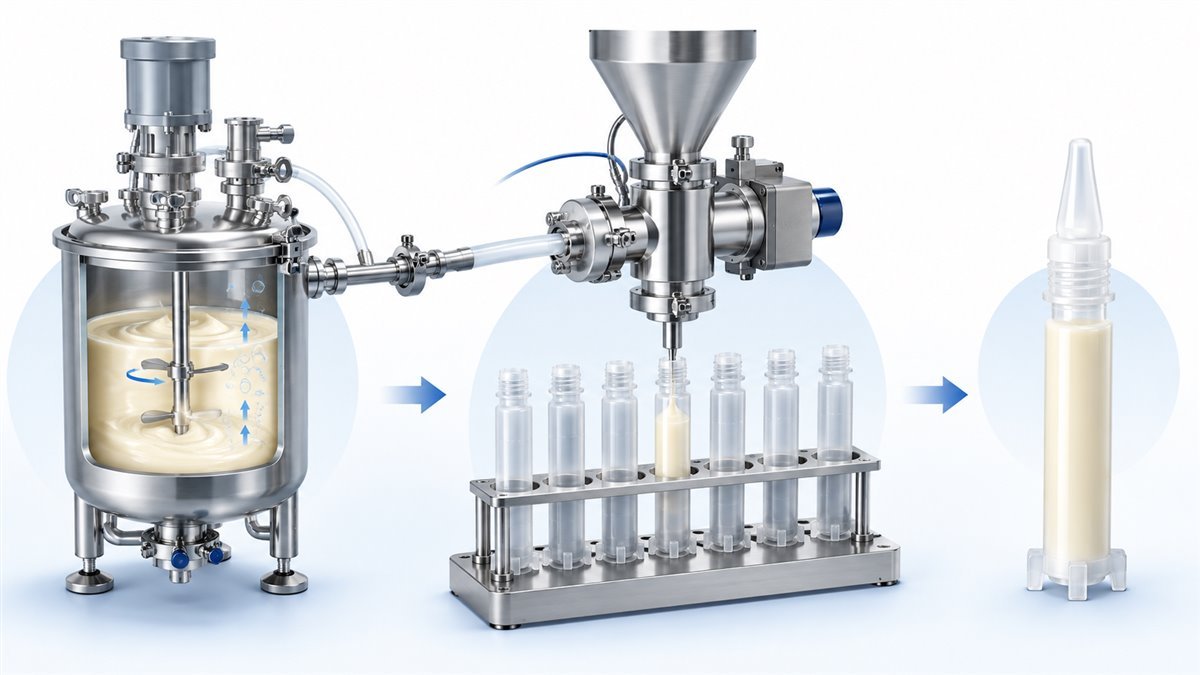

Veterinary suspension and cream precision filling process diagramProcess diagram
B
Suspension · Cream

Suspension & Cream Route

  • Check settling, separation and bubble sensitivity
  • Protect narrow tips and flexible package geometry
  • Confirm dose repeatability, venting and cleanability
Application categories

One Industry. Four Syringe Applications.

Each application combines a different dosage form, barrel structure and assembly sequence.

Related insights

More About Veterinary Syringe Filling

Practical notes on dosage control, material handling and line configuration.

View More Articles

Technical configuration guide

How to Choose a Veterinary Syringe Filling Route

Veterinary syringe filling equipment should be selected from the formulation, dose, syringe geometry, component supply state and closure sequence. Front filling and rear filling are different process routes; the appropriate route depends on access to the syringe, product behavior, plunger or cap handling and the acceptance criteria agreed for the project.

Technical points to confirm before quotation

Compare the veterinary syringe RFQ checklist, intramammary selection guide and FAT checklist before requesting a proposal. Speed and accuracy should be published only when tied to the verified configuration and agreed test method.

— Contact US—

You just let us know your daily capacity and we select the machine models for you.
