Packaging efficiency depends on the full production line, not only individual machines. Automating filling through palletizing may reduce manual handling and improve throughput, but the result depends on product, package, layout, staffing, and validation.
This guide explains how integrated systems can streamline workflows from filling to palletizing and how to evaluate quality, capacity, labor, and return-on-investment assumptions.

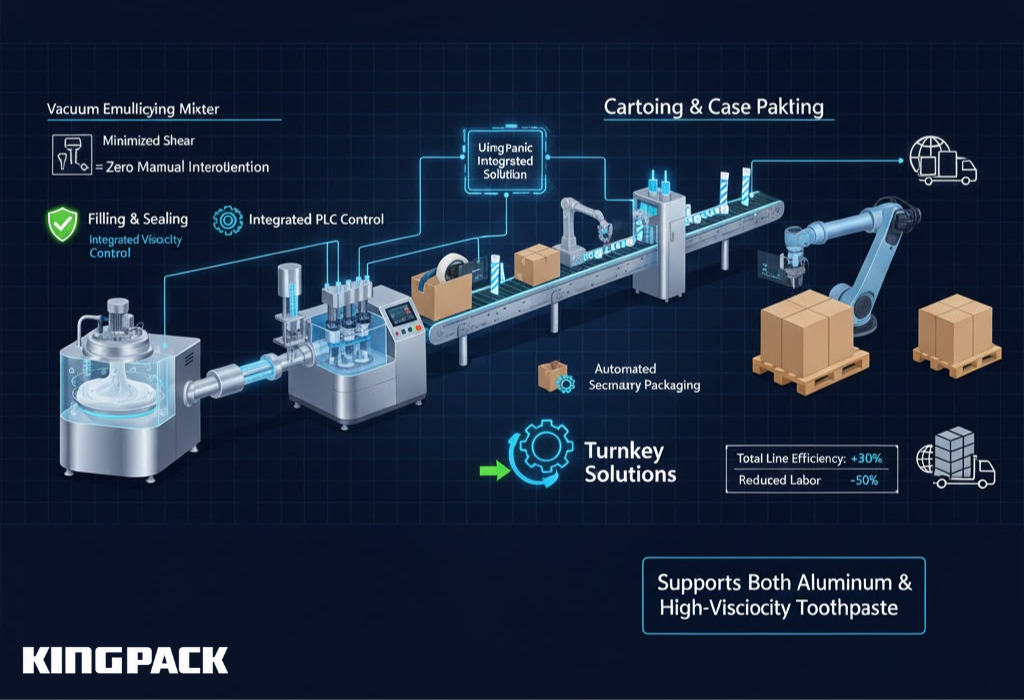

Defining Full Automation: Beyond the Filler – Understanding End-to-End Integration
Full automation connects selected stages such as filling, capping, labeling, case packing, and palletizing. The amount of manual intervention depends on the line design, changeovers, replenishment, inspection, and site procedures.
This seamless integration requires careful coordination between equipment, control systems, and material handling components.
King Pack supplies integrated packaging solutions for selected pharmaceutical, cosmetic, food, and beverage applications. Final equipment scope, compatibility, capacity, and service commitments should be confirmed in the technical specification and acceptance plan.
Recommended Reading: Automatic Honey Sachet Packing Machine – King Pack Efficient Liquid Sachet Solutions – King Pack Machinery
Structured Definition: The Core Components (Primary, Secondary, and Tertiary Packaging)

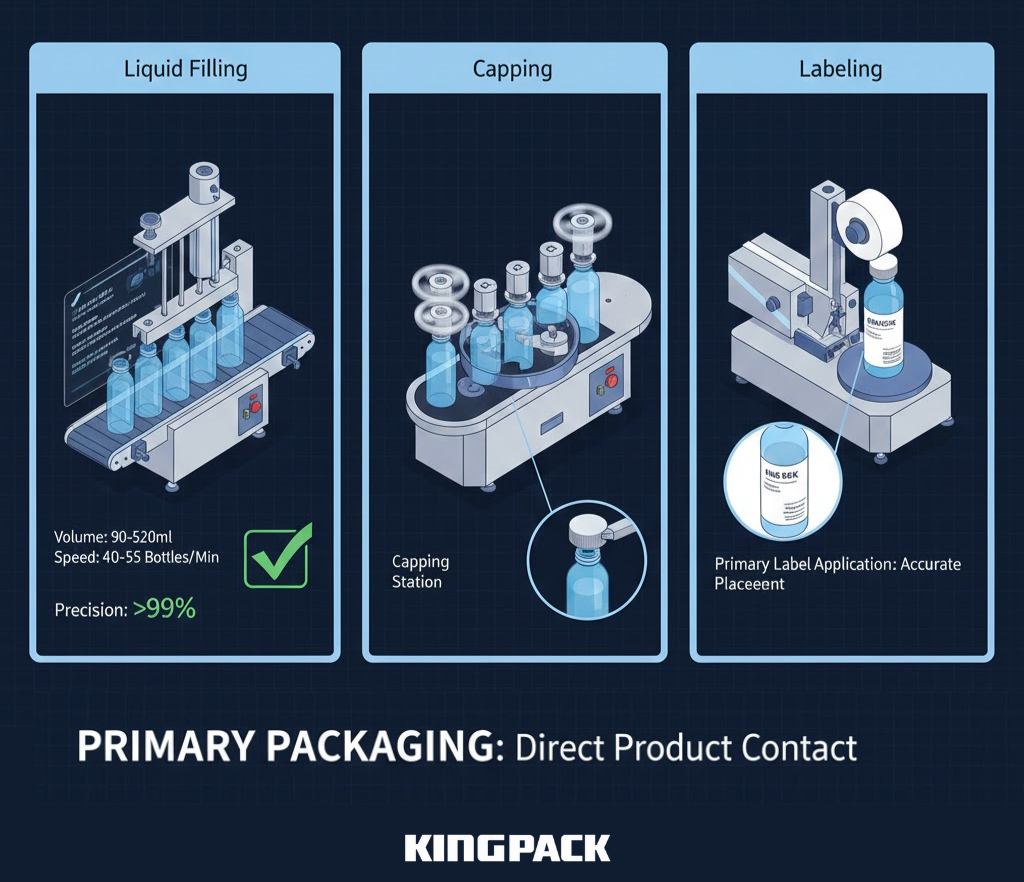

Primary Packaging
Primary packaging includes the container that contacts the product, plus filling, capping, and labeling operations. Example volume, speed, and accuracy ranges are machine-specific; confirm tested values for the intended formulation and package.

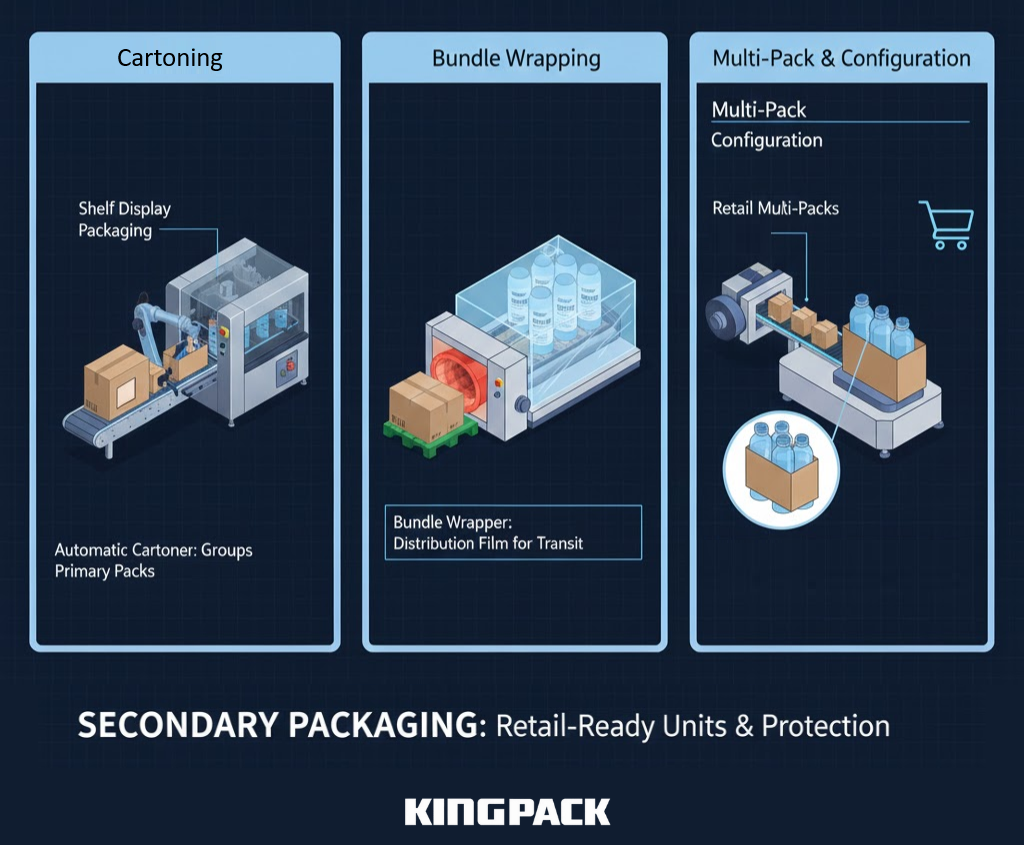

Secondary Packaging
Secondary packaging groups primary packages into retail-ready units. This includes cartoning, bundle wrapping, and multi-pack configurations. Equipment at this stage prepares products for shelf display and protects primary packaging during distribution.

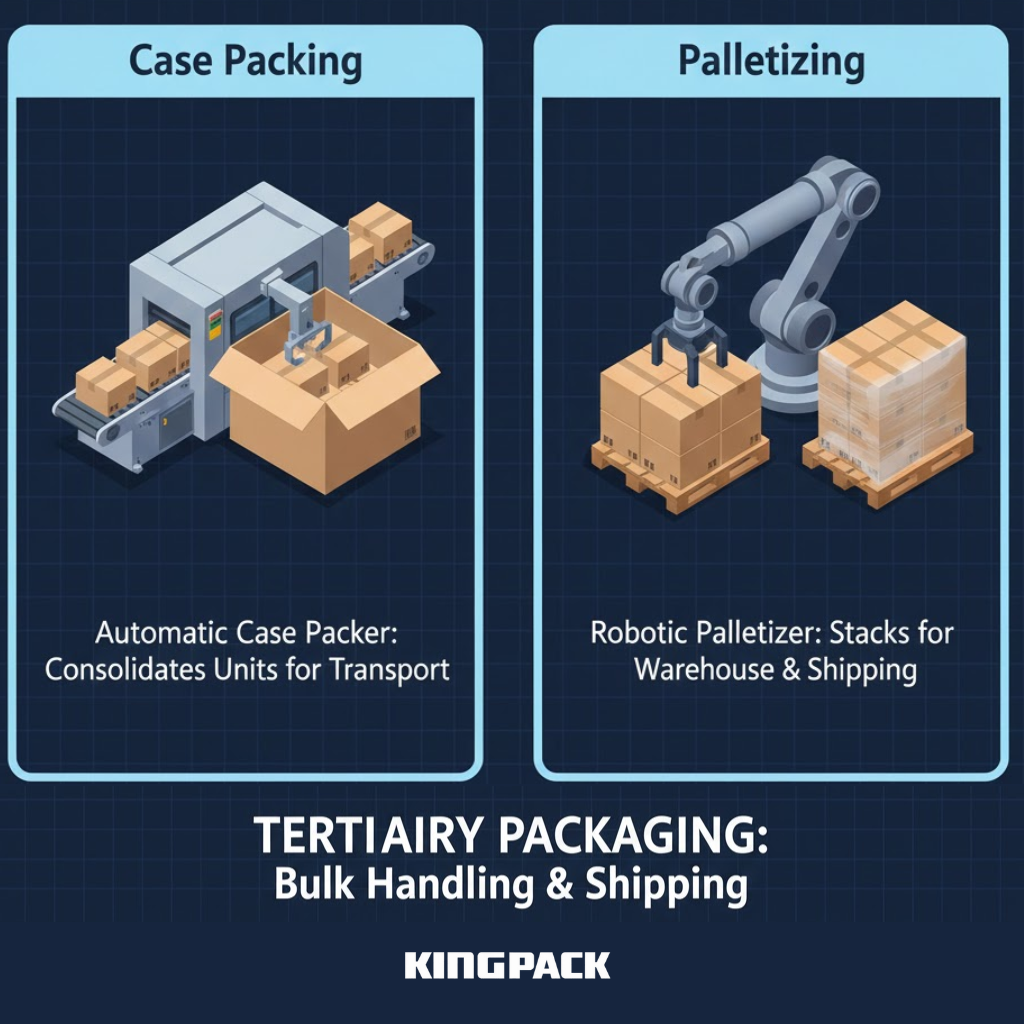

Tertiary Packaging
Tertiary packaging focuses on bulk handling and transportation. Case packing systems consolidate multiple units into corrugated cases, while palletizing equipment stacks cases onto pallets for warehouse storage and shipping. This final stage prepares products for long-distance transportation and warehouse handling.
Key Performance Indicator (KPI): What is Overall Equipment Effectiveness (OEE) and Why is it the Automation Metric?
Overall Equipment Effectiveness (OEE) measures manufacturing productivity by combining three critical factors: availability, performance, and quality. The formula is straightforward:
OEE = Availability × Performance × Quality
- Availability measures uptime against scheduled production time
- Performance compares actual production speed to ideal speed
- Quality tracks the percentage of good units produced
OEE combines availability, performance, and quality. Published benchmark ranges vary by industry and measurement method, so use a consistent site baseline instead of assuming that automation will reach a particular score.
| OEE Component | Manual Line Performance | Automated Line Performance | Improvement |
| Availability | Example baseline only; actual availability depends on scheduled time, changeovers, maintenance, and staffing. | Example target only; verify with a site trial and agreed OEE definition. | +15% |
| Performance | Example baseline only; performance depends on product, format, and operator process. | Example target only; confirm with representative production data. | +25% |
| Quality | Example baseline only; quality depends on the inspection method and acceptance criteria. | Example target only; validate detection and reject performance. | +6% |
| Total OEE | Illustrative example only; do not use as a forecast. | Illustrative example only; do not use as a forecast. | Illustrative comparison only; calculate from site-specific data. |
Phase I: Primary Packaging Integration (Filler to Sealer)
Primary packaging integration connects filling, capping, and labeling operations into a synchronized system. Success at this stage depends on managing speed variations between machines and implementing quality checks that catch defects before products advance to secondary packaging.

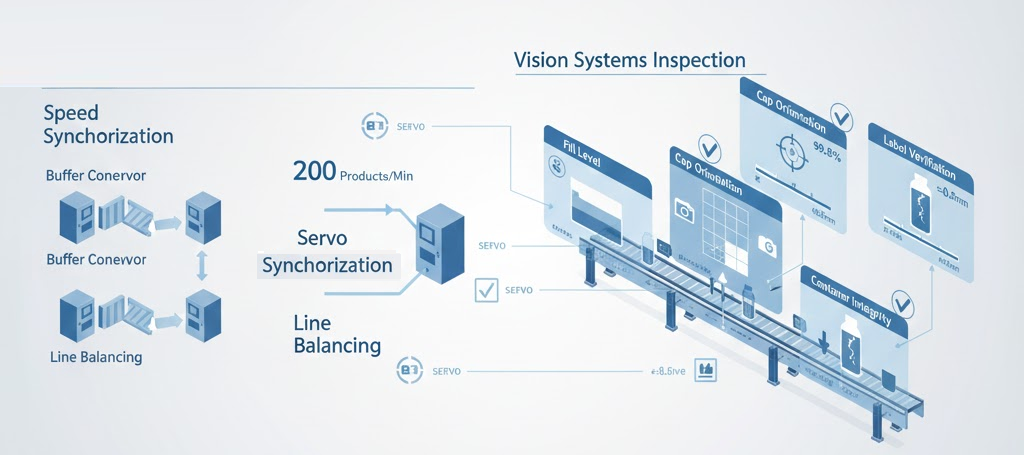

Transition Points: Integrating Fillers, Cappers, and Labelers (Addressing Speed Mismatches)
A filler and capper running at different rates can create a bottleneck. The actual loss depends on buffers, control logic, changeovers, downtime, and product flow.
The following three approaches address this challenge:
- Buffer Conveyors: Accumulation zones between machines absorb temporary speed differences, allowing upstream equipment to continue operating when downstream equipment pauses
- Servo Synchronization: Modern control systems coordinate multiple machines to run at matched speeds, with automatic speed adjustments based on real-time line conditions
- Line Balancing: Strategic equipment selection places machines with compatible speeds in sequence, minimizing the need for buffering
King Pack examples may include servo-driven coordination and food or beverage lines. Output and fill tolerance are application-specific; confirm the tested range, package format, and acceptance criteria for the proposed line.
Recommended Reading: Vertical Automatic Flour Packaging Machine – King Pack Powder Packing Solutions – King Pack Machinery
Technology Focus: Vision Systems and Quality Checks for Flawless Primary Packaging
Automated vision systems perform multiple inspection tasks in milliseconds:
- Fill Level Verification: Cameras measure product height in containers, rejecting under-filled or over-filled units before they reach capping stations
- Cap Presence and Orientation: Vision systems confirm caps are present, properly seated, and correctly oriented before applying torque
- Vision systems may check label position and print or barcode readability. Tolerance and detection performance depend on camera, label, lighting, speed, and the validated inspection setup.
- Container Integrity: Systems detect cracked containers, damaged threads, and foreign material contamination
Rejected products divert to separate collection bins, triggering alerts when rejection rates exceed programmed thresholds. Data logging tracks rejection causes, enabling targeted process improvements.
Phase II: End-of-Line (Secondary & Tertiary) Automation
End-of-line automation can reduce repetitive manual handling, but staffing remains necessary for replenishment, changeovers, inspection, cleaning, and maintenance. The actual labor effect must be measured for the site.

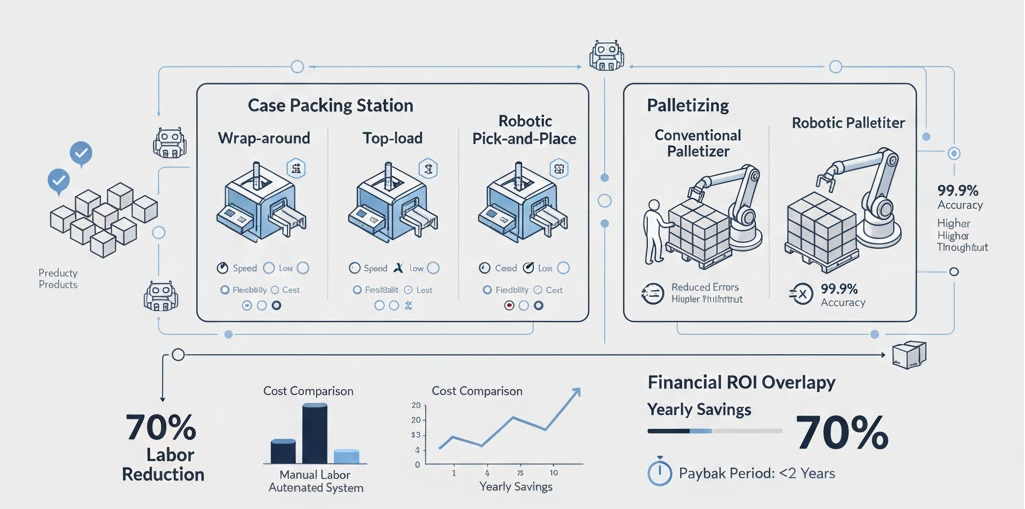

The Case Packer: Choosing Between Wrap-Around, Top-Load, and Robotic Pick-and-Place Systems
Case packing technology selection depends on product characteristics, production volume, and packaging requirements:
| Case Packer Type | Best Applications | Speed Range | Flexibility | Capital Cost |
| Wrap-Around | Stable products in uniform groups | Illustrative speed range only; confirm the tested case rate for the product, case size, and line configuration. | Low (dedicated to one case size) | $ |
| Top-Load | Fragile or irregular products | Illustrative speed range only; confirm the tested case rate for the product, case size, and line configuration. | Medium (adjustable lanes) | $$ |
| Robotic Pick-and-Place | Mixed SKUs, varied configurations | Illustrative speed range only; confirm the tested case rate for the product, case size, and line configuration. | Flexibility varies by tooling, programming, changeover time, and product mix; do not assume unlimited pattern options. | $$$ |
Wrap-around case packers form corrugated cases around product groups already arranged in the correct pattern. These systems offer high speeds and minimal product handling but require pre-arranged product groups and uniform case sizes.
Top-load case packers drop products into pre-formed cases from above. Side guides arrange products into proper patterns before loading. These systems handle delicate products gently but operate at lower speeds than wrap-around systems.
Robotic pick-and-place systems use vision-guided robots to pick products from conveyors and place them in cases following programmed patterns. These systems handle multiple SKUs on the same line and accommodate frequent product changes without mechanical adjustments.
The Palletizer: Achieving High-Volume Throughput with Conventional vs. Robotic Palletizing
Palletizing represents the final step in packaging automation, stacking cases onto pallets in stable patterns that withstand transportation stresses.
Two technologies dominate this space:
| Feature | Conventional Palletizers | Robotic Palletizers |
| Footprint | Illustrative footprint; confirm the actual layout and safety clearances. | Illustrative footprint; confirm the actual layout and safety clearances. |
| Capital Cost | Budgetary example only; obtain a current quotation. | Budgetary example only; obtain a current quotation. |
| Speed | Illustrative rate; verify against the proposed equipment. | Illustrative rate; verify against the proposed equipment. |
| Pattern Flexibility | Flexibility depends on tooling and changeover requirements. | Flexibility depends on programming, gripper design, and changeover requirements. |
| Product Range | Optimized for single product type | Handles multiple sizes and weights |
| Maintenance | Higher (more mechanical components) | Lower (fewer moving parts) |
| Setup Time | Illustrative setup time; confirm with the supplier and site trial. | Illustrative setup time; confirm with the supplier and site trial. |
Conventional palletizers use mechanical layer-forming systems to arrange cases into complete layers before transferring them to pallets. These high-speed systems excel in single-product, high-volume operations where pattern changes are infrequent.
Robotic palletizer availability depends on maintenance, application, safety systems, and operating conditions. Request site-specific references or acceptance data instead of relying on a generic uptime percentage.
Robotic or conventional palletizing can suit different product mixes. Select using tested capacity, pattern requirements, changeover time, service support, and total cost of ownership.
Recommended Reading: Automatic Sauce Packaging Machine – King Pack High-Precision Sachet Filling Solutions – King Pack Machinery
Maximizing ROI: The Financial Case for Automation
Packaging automation requires substantial capital investment. Understanding the financial return helps justify expenditure and guides equipment selection decisions.
Data Point Focus: Calculating the 40% Labor Reduction: A Breakdown of Labor Cost vs. Machine Investment
This is an illustrative cost model, not a market benchmark. Replace labor, throughput, waste, maintenance, energy, and quality assumptions with site-specific data.
Here’s Manual Operation Costs (Annual)
- Illustrative assumption only; replace with verified site data.
- Illustrative assumption only; measure actual waste and rework.
- Illustrative assumption only; measure actual quality cost.
- Total Annual Cost: $1,305,000
Here’s Automated System Investment
- Budgetary example only; confirm a current quotation.
- Budgetary example only; confirm a current quotation.
- Budgetary example only; confirm a current quotation.
- Budgetary example only; confirm a current quotation.
- Budgetary example only; confirm a current quotation.
- Total Capital Investment: $900,000
Here’s Automated Operation Costs (Annual)
- Illustrative scenario only; actual staffing depends on line design, changeovers, inspection, and site procedures.
- Maintenance and parts: $65,000
- Energy costs: $40,000
- Illustrative assumption only; validate material usage and rejects with production data.
- Total Annual Cost: $765,000
Annual Savings: $1,305,000 – $765,000 = $540,000
ROI Calculation Formula:
Payback Period = Total Capital Investment ÷ Annual Savings
Payback Period = $900,000 ÷ $540,000 = 1.67 years (approximately 20 months)
Payback varies with utilization, labor cost, product mix, financing, maintenance, and changeover requirements. Build the calculation from verified site data and sensitivity ranges.
Accessing Government Incentives and Subsidies for Factory Automation
Many regions offer financial incentives to support automation upgrades and manufacturing investment. These programs often apply to semi-automatic machines, packaging upgrades, and new manufacturing equipment used across different industries.
Common incentive programs include:
- Tax credits and investment programs vary by jurisdiction and eligibility. Confirm current rules with a qualified local advisor.
- Accelerated Depreciation: Faster write-offs for capital investments like an Ink Jet Coding Machine, Domino Ax150i, or Vial Packaging Machine, improving early cash flow
- Workforce Development Grants: Funding for training operators on upgraded systems used in sectors like 3PL industries or the wet wipes industry
- Energy Efficiency Rebates: Incentives tied to lower power use, waste management improvements, or reduced material usage
Potential incentives and effective price reductions vary by jurisdiction, program rules, and project eligibility; do not assume a percentage without confirmation.
Recommended Reading: Packaging Machine Solutions – King Pack Packaging Equipment – King Pack Machinery
Industry 4.0 & Smart Packaging: Future-Proofing Your Line
Modern packaging lines incorporate connectivity and data collection capabilities that extend beyond simple automation. Industry 4.0 integration transforms packaging equipment from isolated machines into networked systems that optimize performance and predict maintenance needs.

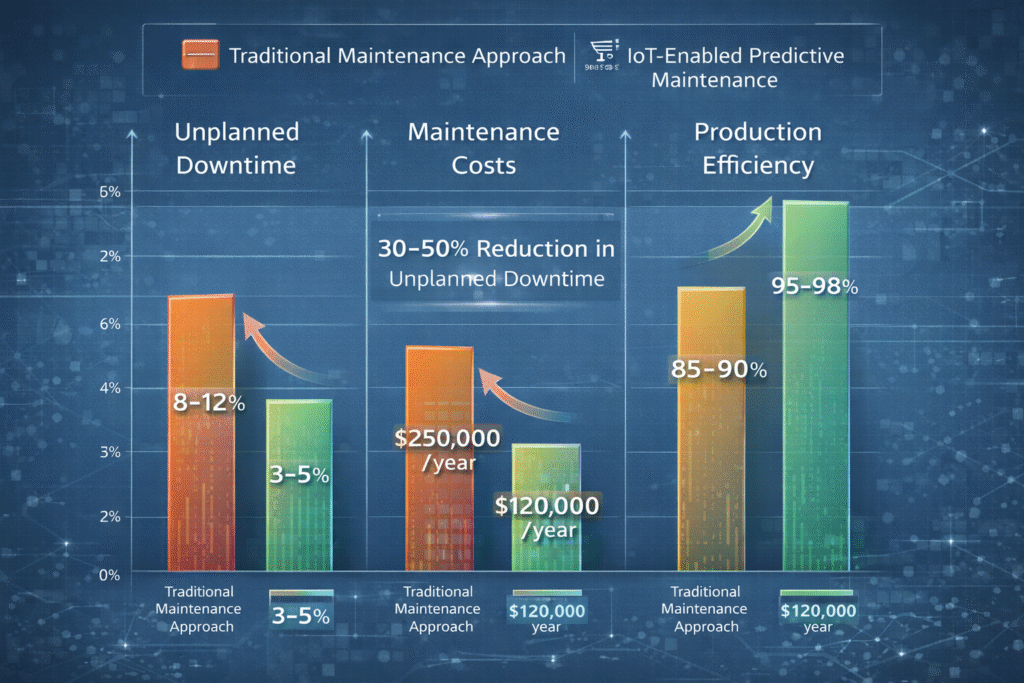

Data Point Focus: Utilizing IoT for Predictive Maintenance to Eliminate Unexpected Downtime
Modern monitoring systems use Internet of Things (IoT) sensors to track key conditions across manufacturing equipment in real time on an Automatic Packing Line or Automatic Production Line:
- Vibration Monitoring: Identifies bearing wear, imbalance, or misalignment in core-line machinery before failure
- Temperature Tracking: Flags overheating motors, drives, and electrical components during long continuous operation
- Power and Load Monitoring: Detects abnormal current draw that signals mechanical resistance or component wear
- Cycle and Output Tracking: Links machine cycles and Bottles Per Minute data to maintenance intervals for critical parts
Predictive maintenance may reduce some unplanned downtime when sensors, thresholds, maintenance workflows, and data quality are appropriate. The percentage effect must be measured for the site.
Advanced systems connect the monitoring system to a touch screen control panel or maintenance software, triggering alerts and work orders when issues develop. This approach improves operational flexibility and keeps conveyor lines and packaging automation machinery running consistently.
Remote Monitoring and Diagnostics: Support and Uptime
Connected equipment enables technical support teams to diagnose problems remotely, often resolving issues without on-site visits.
Secure VPN connections allow equipment suppliers to:
- View real-time production data and identify performance issues
- Access machine diagnostics and error logs to troubleshoot problems
- Adjust parameters remotely to optimize performance
- Monitor system health and recommend preventive actions
King Pack states that it has completed projects in multiple markets; verify current project references, support coverage, and service response terms during supplier evaluation.
For manufacturers in regions with limited local technical resources, remote support capabilities become especially valuable. Real-time troubleshooting can resolve problems in hours rather than days, preventing extended production stoppages while waiting for on-site service visits.
Recommended Reading: Multilane Packing Machines – High‑Speed Multichannel Sachet & Stick‑Pack Solutions | King Pack – King Pack Machinery
Conclusion: Taking the First Step Toward Your Automated Future
Automation may reduce repetitive labor and improve consistency or throughput, but results depend on configuration, integration, maintenance, and operating discipline.
Success requires careful planning, proper equipment selection, and integration with experienced suppliers.
Start by evaluating current operations to identify bottlenecks and labor-intensive processes. Calculate existing costs including direct labor, product waste, and quality-related expenses. These baseline numbers establish the foundation for ROI calculations and help prioritize automation investments.
Request a Technical Consultation on Automated Line Solutions
Every manufacturing operation faces unique challenges based on products, production volumes, facility constraints, and budget considerations. Direct consultation with automation specialists helps identify optimal configurations and develop realistic implementation timelines.
The technical team can review product, capacity, layout, utilities, and integration constraints. Confirm the proposed scope, assumptions, tests, service terms, and acceptance criteria before purchase.
Technical consultations typically include:
- Production capacity analysis and bottleneck identification
- Equipment compatibility assessment for integrating new automation with existing machinery
- Utility requirements evaluation (compressed air, electrical, floor space)
- Preliminary ROI calculations based on current labor costs and projected savings
- Implementation timeline development with minimal production disruption
Contact King Pack to schedule a consultation and begin planning your automated packaging line transformation.
Frequently Asked Questions (FAQs) on Packaging Automation
What is the typical payback period (ROI) for a fully automated packaging line?
Most manufacturers see payback within 18–36 months, depending on labor costs, production volume, and system scope. High labor rates and multi-shift operations usually shorten the return period.
How does the OEE metric relate to manual labor reduction?
Higher OEE means more output with fewer operators. Automation improves availability, speed consistency, and quality, allowing the same production volume with less labor.
What is the difference between conventional and robotic palletizers?
Conventional palletizers run faster and suit single-product, high-volume lines. Robotic palletizers offer greater flexibility for multiple products and patterns, with slightly lower speeds.
What’s required to integrate machines from different vendors into one line?
Integration relies on common communication protocols, compatible PLC systems, and well-matched conveyors. An integration specialist coordinates controls, handshakes, and operator interfaces to keep the line running smoothly.
