The cheapest mistake on a gel bait syringe filling project is to choose the filling line first and the package second. An automated line is configured around the barrel, the piston, the plunger, and the closure, and most of the variables that drive the configuration live with the package supplier, not the machine supplier. If those variables are not pinned down before the line is specified, the buyer ends up with a line that can run the samples it was demonstrated on, and a list of package changes required to run the rest of the portfolio. This article lays out what a buyer should ask the package supplier for, and why each item is on the list.
Why the Package Drives the Line
Every station in an automated gel bait syringe filling line—feeding, orientation, dosing, piston insertion, closure, inspection—has a tolerance that is set against the package. A feed track tuned to a 12.5 mm barrel diameter will not accept a 12.7 mm barrel without adjustment. A piston-insertion station designed for a pre-seated piston will not assemble loose pistons from bulk. A closure station sized for a snap-fit tip will mis-thread a Luer-style closure. The package is not an accessory; it is the spec.
The practical consequence is that any package change after a line is built costs time and money. Buyers who want a line that runs their full portfolio, or who may add a new SKU later, need to confirm the package set—geometry, tolerances, supply state—before the line is built, not after.

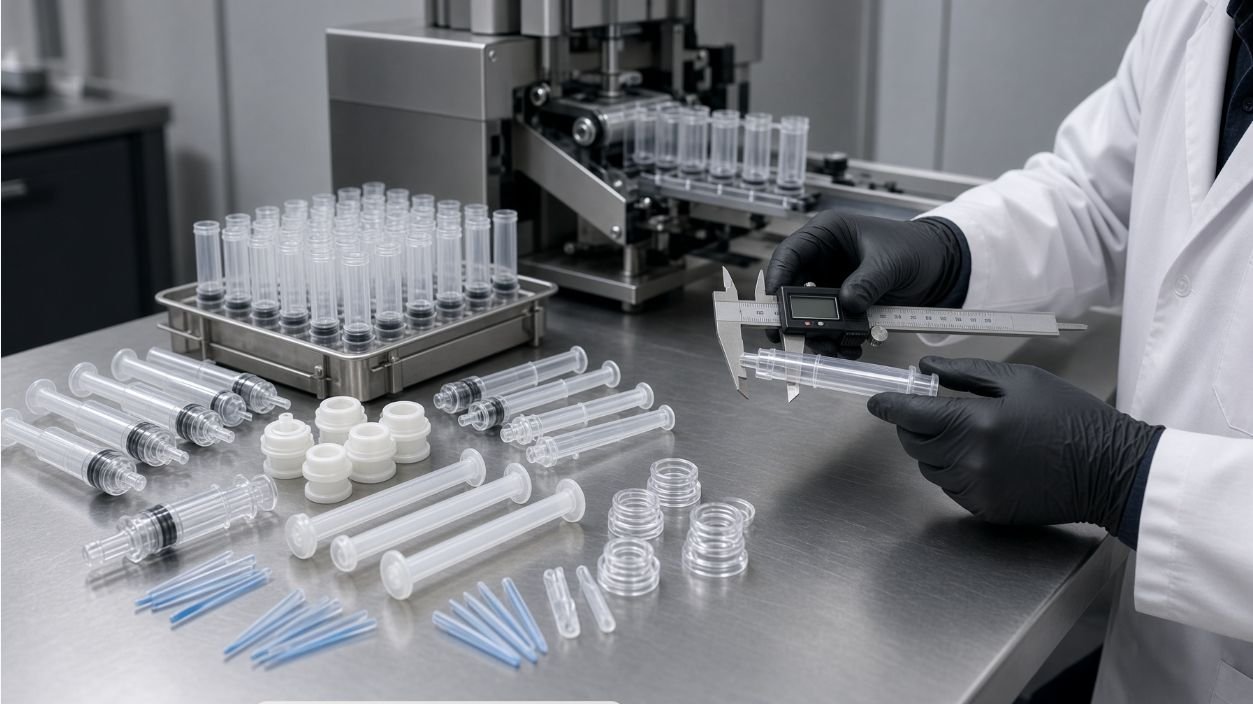

Barrel Geometry: The Reference Dimensions
The first set of information to collect is the barrel geometry. For each format the line is expected to run, the buyer should have:
- Outer diameter of the barrel at the body, the shoulder, and the tip end, with tolerance. A few tenths of a millimetre can change the feed track and orientation tooling.
- Inner diameter of the dosing chamber, with tolerance. The inner diameter, together with the target net content, sets the dose length the metering system must deliver.
- Total barrel length and the length from the open end to the piston stop, with tolerance. This is the reference for piston-insertion depth.
- Flange or collar geometry (if present): outer diameter, thickness, and the orientation feature (flat, notch, key). The line uses this feature to align the barrel for tip-side operations.
- Tip interface geometry: thread spec, snap-fit dimensions, Luer-style taper, or custom. The fill nozzle and the closure station both key off this.
These are the numbers a supplier needs to specify the feed track, the dosing nozzle, and the closure station. Without them, the line is sized to a sample, not to a spec.

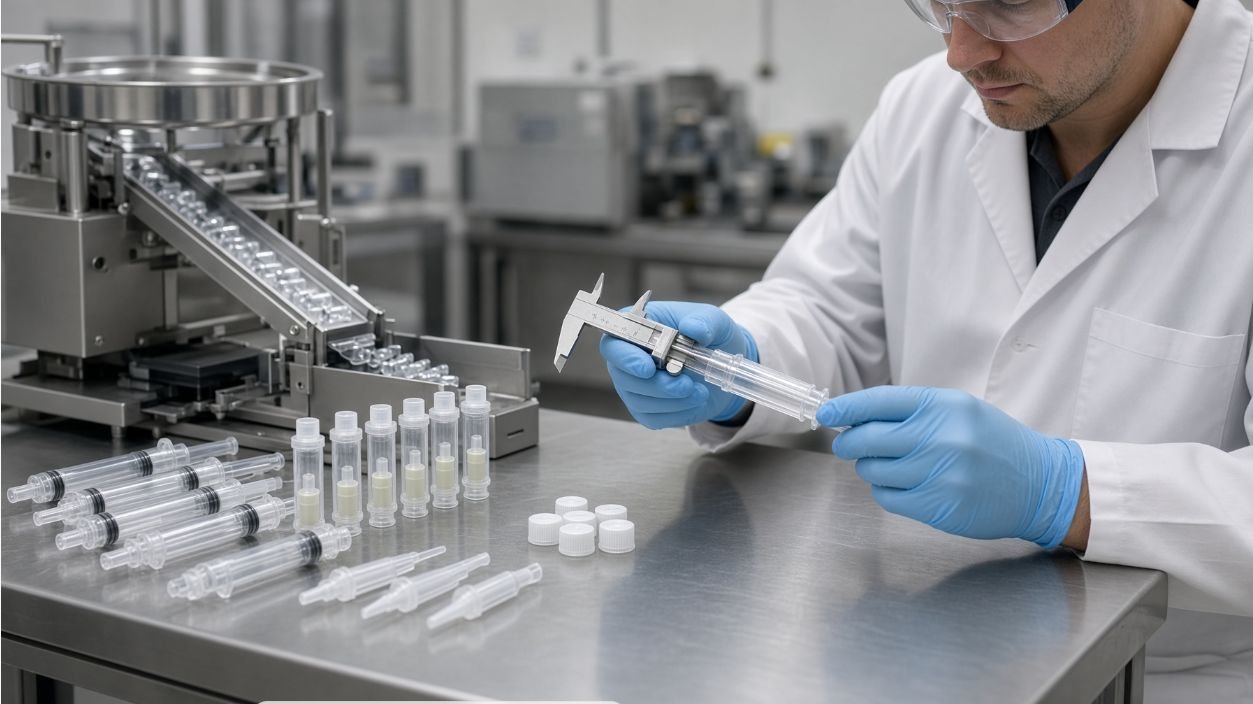

Tip and Closure Interfaces
The tip and the closure are the parts the dosing nozzle touches and the part the end user pulls off. Both are engineering interfaces, not just packaging features.
- Tip open path. Internal diameter at the tip and the length of the narrow passage. For front-filling, this is the fill path; for rear-filling, the tip is closed by the cap before fill but its geometry still matters for closure.
- Cap or closure geometry. Thread pitch, sealing feature, and retention requirement. Snap-fit closures are sensitive to mould flash; threaded closures need correct torque to seal without cracking the tip.
- Material compatibility. The closure material must seal against the tip without chemical interaction with the paste (active ingredients, solvents, or water in the formulation can attack some plastics).
- Marking and orientation. If the cap or tip carries a printed mark, the line may need a vision station to confirm orientation before closure.
These details are not just procurement questions. They are the inputs that decide whether the closure station is a single-serve tool or a multi-format tool, and whether a vision station is part of the line.
Piston and Plunger Supply State
How the piston and plunger arrive is the question that decides whether the line is a dosing-and-closure line or a dosing, piston-insertion, and closure line. The buyer should confirm, per format:
- Piston: pre-inserted at the barrel tail, supplied loose in a bag, or supplied pre-assembled with the plunger rod. Pre-insertion closes the rear-fill route; loose supply forces rear-filling with an insertion station.
- Plunger rod: included, sold separately, or omitted for gun-compatible cartridges. The rod affects orientation and the assembly sequence, not the fill route.
- Bore size of the piston vs. the barrel inner diameter: the seal relies on this fit being within tolerance. A loose fit leaks; a tight fit binds during insertion.
- Storage and shelf life of pre-inserted pistons: long storage can deform the elastomer; the line may need to accept pistons that have been in the barrel for weeks.
These answers fix whether the line is built around front or rear filling, and whether piston-insertion and venting are part of the configuration. They are usually the items most often left vague at the inquiry stage.
Bulk Packing and Feeding Conditions
A line that runs barrels in a tray does not run barrels in a bulk bag without an upstream solution. The package supplier’s bulk packing is a line input, not a logistical detail.
- Bulk form: oriented in trays, randomly in a bag, in a blister, in a sleeve. Random bulk needs an unscrambling and orientation station; tray-packed barrels may feed directly.
- Count per pack and pack size: sets the upstream buffer and the changeover cadence.
- Particulate or static load: some barrels carry static that interferes with singulation; some bulk packs deform barrels at the bottom. The line should be sized to handle the worst case in the buyer’s real supply.
- Storage conditions: if the package is stored cold, condensation on the line can change the fill nozzle and the closure seat; the buyer may need a preconditioning step.
These are the conditions that decide whether the front of the line is simple (tray feed) or includes singulation, orientation, and pre-conditioning.

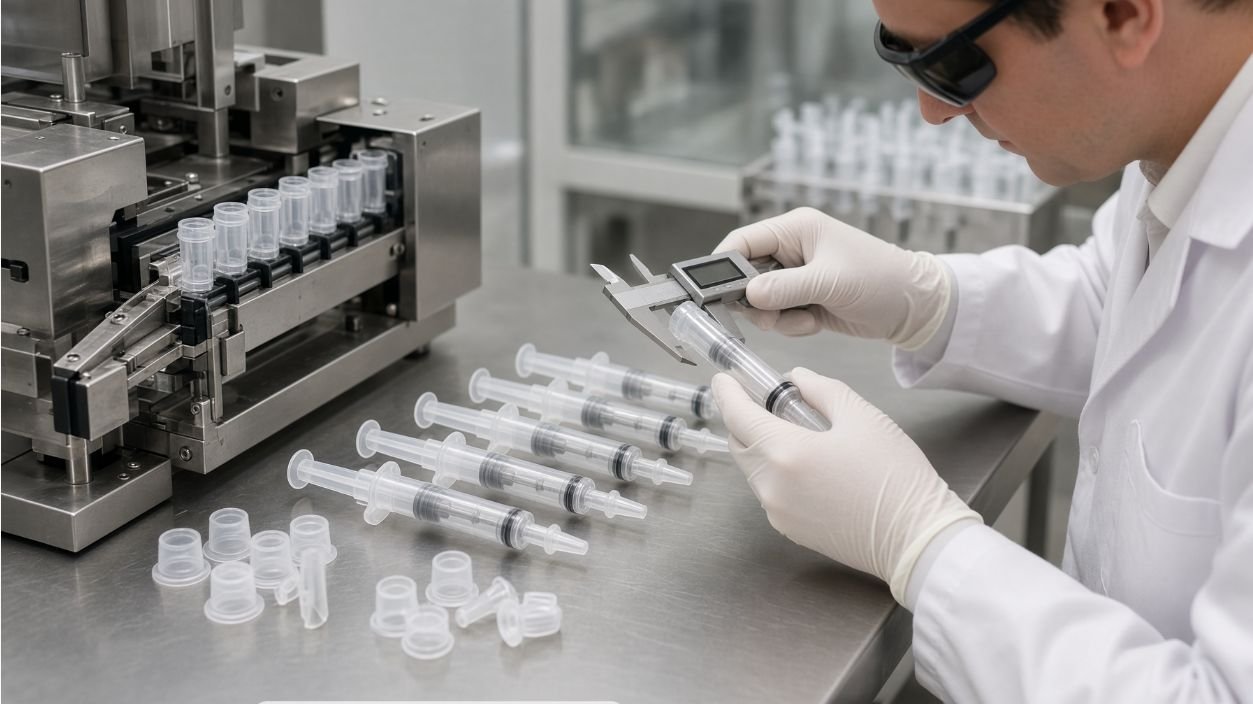

Material Compatibility and the Active Ingredient
The active ingredient in a gel bait is not inert to every plastic. Indoxacarb-based formulations, for example, are common in cockroach gel baits; the package supplier should be asked to confirm that the barrel, piston, and closure materials are compatible with the active and the matrix over the claimed shelf life. The buyer should also confirm that any silicone or mould-release residue from barrel manufacture does not interfere with the bait’s attractant performance. A material compatibility statement, with a reference to the active and the matrix, belongs in the supplier file.
Drawing and Tolerance Package: What to Ask For
The package supplier’s drawing and tolerance package is the document the line supplier uses. A useful package includes:
- A drawing of the assembled syringe and of each component (barrel, piston, plunger, tip, cap).
- Critical dimensions with tolerances called out, in a single table.
- A note of which dimensions are inspection-gated and which are reference.
- Material specifications with the relevant regulatory or industry compliance notes (e.g., food-contact, recyclability statements where relevant).
- Storage and shelf-life conditions for the components and the assembled syringe.
- A point of contact for engineering questions during the line project.
A package that arrives without tolerances, or with tolerances only on a subset of dimensions, is not a specification. The buyer should ask the package supplier to fill in the missing items before the line is configured.
Common Risks and Mistakes
- Treating the package as commodity. Two barrels from different suppliers, both described as “30 g syringe,” can differ in dimensions and supply state enough to require different line configurations.
- Asking for samples but not for the drawing. Samples demonstrate what the package looks like; drawings specify what the line must accept. A line designed only from samples is sized to one lot, not to a spec.
- Confirming dimensions without tolerances. A dimension without tolerance is a sample, not a specification.
- Ignoring bulk packing. A line that assumes tray-feed is useless if the supply arrives in bulk bags, and vice versa.
- Skipping material compatibility. A package that interacts with the active is a quality problem waiting to happen, not a filling problem.
How King Pack Supports This Application
King Pack Machinery (Wuxi King-Pack / Wuxi Jingpai Machinery Co., Ltd., founded 2009, with a core technical team carrying more than 20 years of industry experience) treats the package as the first input, not the last. The relevant support for a buyer selecting gel bait syringes for an automated line is:
- Package review against an application URS. Reviewing the barrel, piston, closure, and bulk packing drawings against what an automated line can accept, with a written list of items to confirm with the package supplier.
- Sample-based testing. Verifying that the actual samples, with the actual paste, run through a configured line before the line is committed.
- Tolerance and supply-state feedback. Translating the package supplier’s drawing and tolerance table into the line’s station-by-station requirements.
- Documentation and training. A documentation set the buyer’s engineering and operations teams can re-use when a new package format is added.
King Pack does not claim a verified dedicated gel-bait machine from a standard catalogue. A configuration is developed against the package and the paste a buyer actually supplies. That is the difference between a quote for a machine and a proposal for a working line.
Conclusion
A gel bait syringe that fills well in the lab can fail on an automated line if the package was not specified for automation. The buyer who collects the geometry, tolerances, tip and closure interfaces, piston and plunger supply state, bulk packing, and material compatibility—and who gets them in a drawing, not a sample—saves the project from a re-design. The package is the spec; the line follows.
Planning a gel bait syringe filling line? Send your barrel, piston, plunger, tip, and cap drawings with tolerances, your bulk packing information, and your product data, and request a package review against an application URS.
