Liquid wash pot

Working volume (L) : 500
Main pan thickness (mm) : 6*5*3
Mixing power (Kw) : 3
Mixing speed (rpm) : 0~86
Mixing blade thickness (mm) : 12
Homogenizer power (Kw) : 7.5
Electric heating power (Kw) : 22
Homogeneous speed (rpm) : 100~2950
Sealing method: mechanical seal, oil seal
Machine size (LxWxH)m: 950*1900

Are you a factory or trading company?

We are a factory established in 2009 in Wuxi City, 1 hour’s way from Shanghai. We have independent R&D, PMC, QC and production departments. The quality and delivery are fully controllable. We have 12 sets of CNC machines in in total.

If l have problems in using the machines, could you support me?

Instant Response + Professional Team + Polite Attitude.
We have professional English-speaking team to support any time by video meeting. Our factory has enough stock of spares to save your waiting time. Please use our machines safely and happily.

How can l know what machine models are suitable to me?

Kingpack has obtained more than 3000 projects experience. You just provide your sales quantity, products and packages to us, and we design semi-auto or fully-auto machine solutions, specific models and budget, deliver plan for you.

Is your machine quantity reliable?

Our machines were exported to over 60 countries, qualified with CE, ISO certificate. We provide the same or similar project case references. Site or remote FAT acceptance are provided strictly and comprehensively for customer’s confirm. The parameters, features, appearance and Operation reliability are confirmed one by one.

Why choose King Pack?

Focus on emulsifying machine and tube filling machine Since 2009
Over 3000+ customers’s projects experience, reliable and safe project solution provider
Professional pre-sale and after-sale technical support team at 7X 24
GMP, ISO9001 and CE quality management system and quality standard

Characteristics

Liquid preparation and mixing

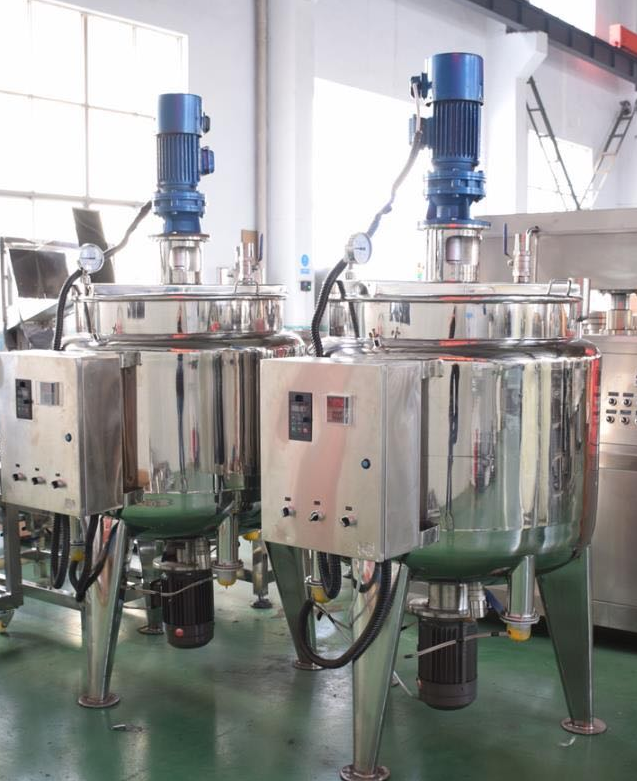

This liquid wash pot is a tank-and-agitator system for liquid preparation. Applications described for this equipment include oral liquids, disinfectants, dairy products and lotions, subject to confirmation of formulation, product-contact compatibility and the required production process. It is a preparation vessel, not a bottle-filling or sterilization system.

Configuration options

The basic arrangement combines a tank, agitator and control cabinet. Heating, cooling, vacuum, weighing and a bottom-mounted high-shear homogenizer can be discussed as customized options. Confirm which items are included in the quotation and how the vessel will connect to upstream charging and downstream transfer.

Information to prepare for a quotation

Product type, viscosity range, foaming behavior and any suspended ingredients.
Minimum and normal batch volumes, operating temperature and heating or cooling duty.
Mixing objective: blending, dispersion or homogenization, with an agreed sample-trial method where needed.
Product-contact materials, cleaning access, discharge arrangement and available utilities.
Installation clearance, overall dimensions and interfaces with transfer and filling equipment.

The listed parameters describe the published configuration. Confirm the final scope, dimensions and performance requirements in the technical proposal. For alternative preparation systems, compare the mixing and emulsifying equipment range.
