Emulsifying pot：
Working volume（L）：500
Main pot thickness (mm)：6*5*3
Scraper stirring power (KW)：4
Scraper stirring speed (RPM)：0~62
Homogenizer power (KW)：7.5
Lifting power (KW)：1.5 hydraulic pressure
Homogenizer speed (RPM)：100~2950
Sealing method： Skeleton oil seal；Mechanical seal

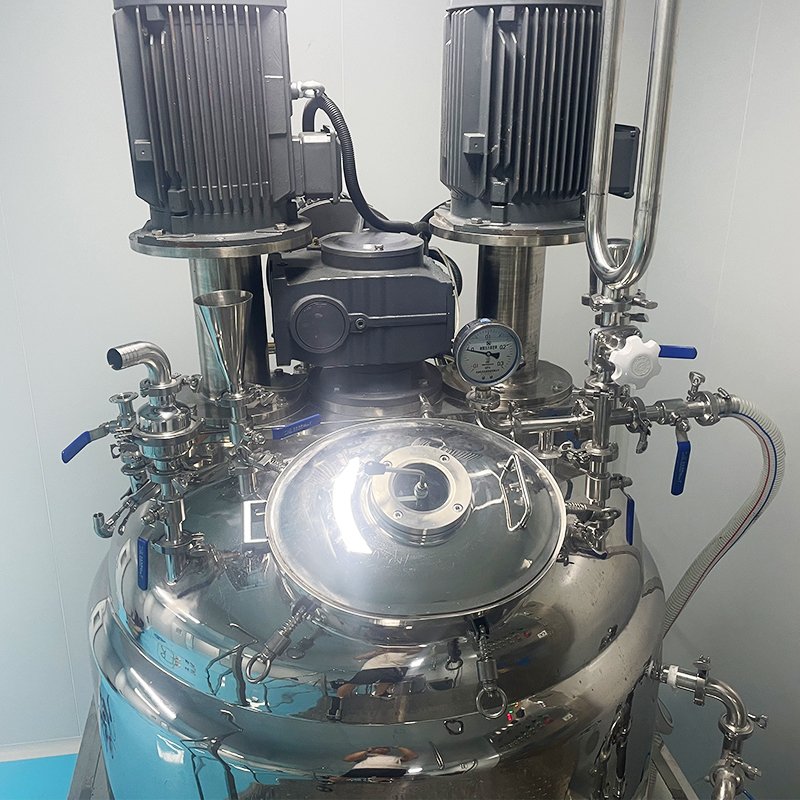

Water pot：
Capacity (L):320
Water pot thickness (mm):4*3
Dispersing speed (RPM):1400
Dispersing power (KW):1.1
Oil pot:
Capacity (L):210
Oil pot thickness (mm):4*3*3
Dispersing speed (RPM)：1400
Dispersing power (KW)：1.1
Overall：
Size (LxWxH) (mm)：2600*3600*2980(4300
We are a factory established in 2009 in Wuxi City, 1 hour’s way from Shanghai. We have independent R&D, PMC, QC and production departments. The quality and delivery are fully controllable. We have 12 sets of CNC machines in in total.
Instant Response + Professional Team + Polite Attitude.
We have professional English-speaking team to support any time by video meeting. Our factory has enough stock of spares to save your waiting time. Please use our machines safely and happily.
Kingpack has obtained more than 3000 projects experience. You just provide your sales quantity, products and packages to us, and we design semi-auto or fully-auto machine solutions, specific models and budget, deliver plan for you.
Our machines were exported to over 60 countries, qualified with CE, ISO certificate. We provide the same or similar project case references. Site or remote FAT acceptance are provided strictly and comprehensively for customer’s confirm. The parameters, features, appearance and Operation reliability are confirmed one by one.
Product Introduction:

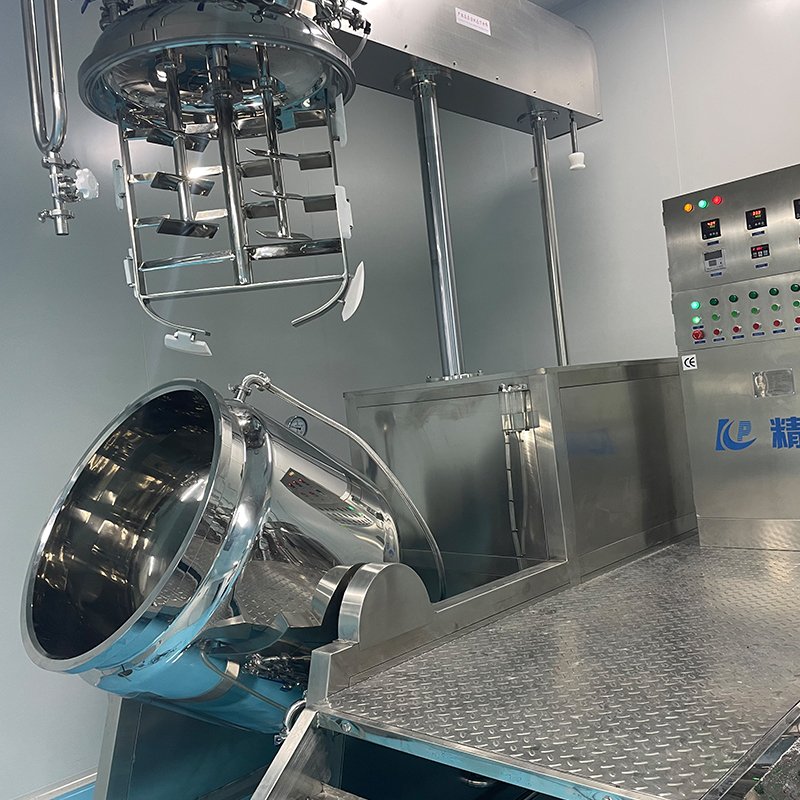

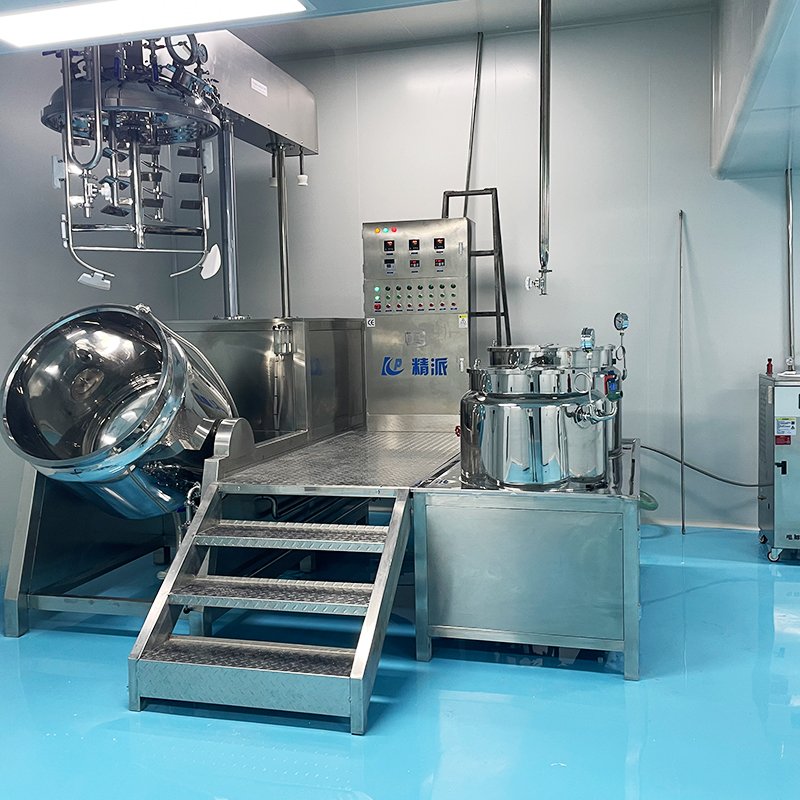

The vacuum homogenizing emulsification unit is composed of homogenizing pot (elevating pot cover, overturning pot body), water phase pot, oil phase pot,scraping wall mixing system, homogenizing emulsification system, vacuum
system, heating temperature control system, hydraulic lifting system, electrical
control system, etc. The pot body is made of high-quality stainless steel, welded
with the national standard head, and has a three-layer cylinder structure.
Hygienic fine polishing inside and outside the cylinder, the system is designed as a closed process path; actual dust, bioburden and microbial control depend on the supplied configuration, seals, cleaning, environment and validated operating procedure. Vacuum homogenization emulsification machine is a special equipment for producing medicinal ointment, high-grade cream, lotion and other products. The published reference limits are up to 100000 cps viscosity and 0.2–5 μm shearing fineness; achievable results depend on formulation, temperature, batch conditions, rotor/stator setup and the agreed test method.
Product Features:

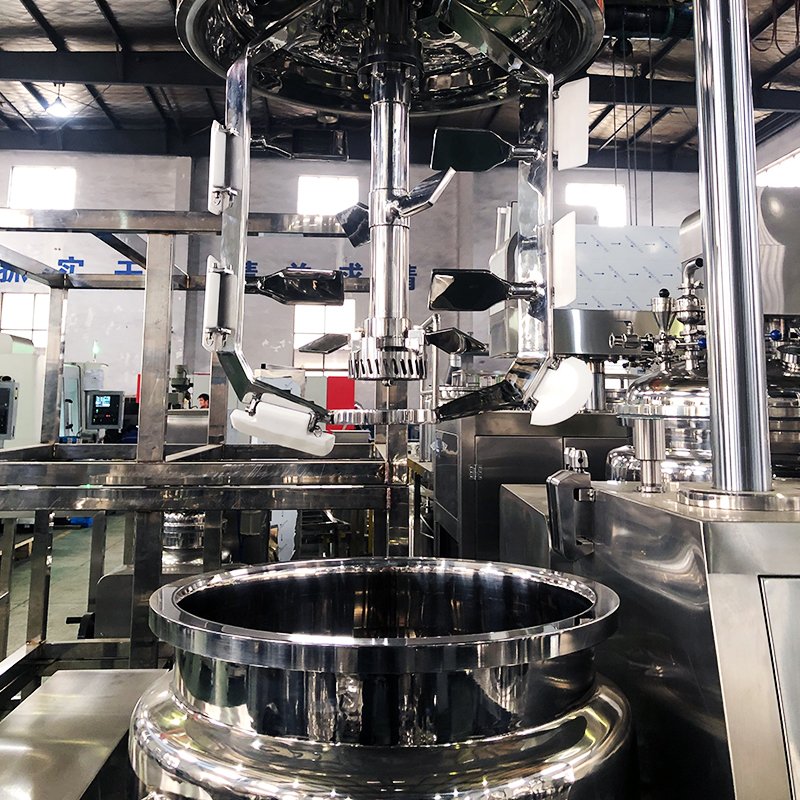

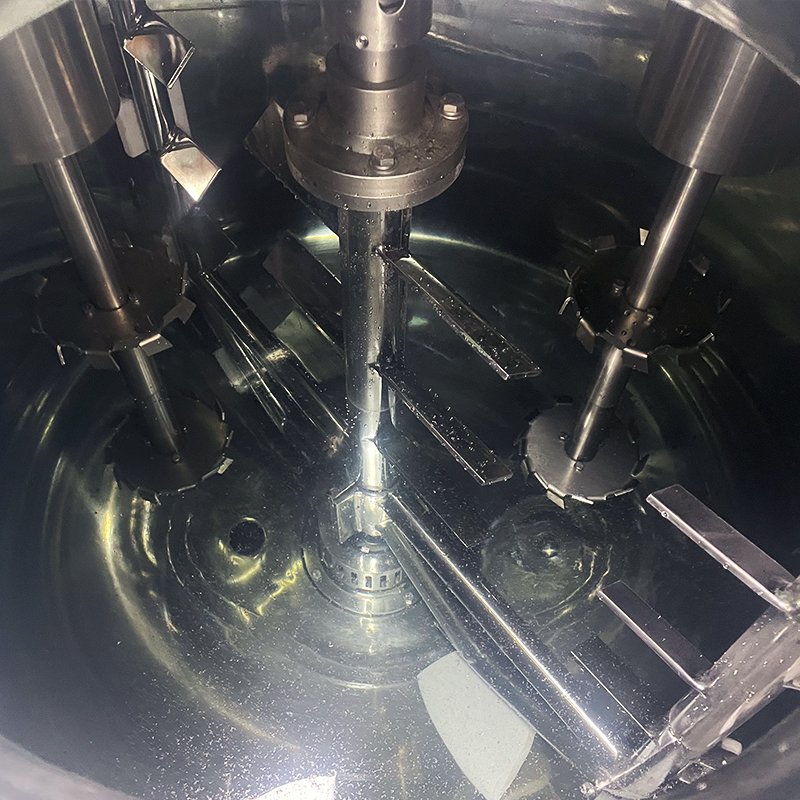

Self developed homogenization technology, opposite double mixing,
variable frequency stepless speed ;
The material contacting parts of the tank body are made of high-quality SUS316L stainless steel, and the mirror surface is polished to the quoted finish specification; GMP compliance depends on the complete facility, process, documentation and validation.
Adopt PLC intelligent control, which can customize management
authority, audit tracking, remote control, data remote and other
functions;
Water ring vacuum pump, anti suction pipeline design, the listed vacuum degree is a reference configuration value; actual vacuum depends on pump performance, leak rate, product load and site utilities.
With heating and cooling functions, PID precise temperature control, no delay and no buffer;
National standard elliptical head production, three layer tank design;
Equipped with guide belt, heating and cooling performance and temperature uniformity depend on load, media, circulation, control settings and validation.
