A spot-on filling line should be sized from saleable dose demand and available production time, not from the highest speed printed on a quotation. Annual demand must first be converted into individual pipettes or other dose units. Planned maintenance, holidays, campaign changeovers, sanitation, line clearance, startup losses, short stops, rejects and the real bottleneck then determine how many of those units can be delivered in each scheduled minute.

The most common sizing error is to divide annual demand by calendar minutes and call the result required BPM. The second is to subtract every loss separately and then apply an OEE value that already includes the same availability, performance and quality losses. Both approaches can produce a misleading answer. A credible model states the boundary of every factor and keeps one auditable route from demand to good output.

This capacity article is narrower than the existing veterinary pipette filling machine buyer’s guide. That guide covers broader machine selection. Here the output is a project-specific BPM range, a bottleneck map and a sustained-run acceptance plan. All values in the worked example are planning assumptions, not KING PACK performance claims or industry benchmarks.

Quick answer: Calculate required spot-on line speed by dividing buffered annual saleable dose demand by effective production minutes. Effective minutes are scheduled production minutes after clearly defined planned exclusions, multiplied by one efficiency factor whose loss boundary is documented. Confirm the resulting BPM with the actual formulation, approved pipettes, seal materials, pack mix and worst-case changeovers during sample testing and a sustained FAT run.

Use One Capacity Formula with a Defined Loss Boundary

Direct answer: Required nominal BPM equals buffered annual good-dose demand divided by effective production minutes; define whether quality loss is inside OEE before adding any separate reject allowance.

A practical model starts with annual saleable units. Multiply forecast demand by the approved planning buffer, then divide by scheduled production minutes that remain after excluded planned time. If the OEE assumption includes availability, performance and quality, multiply the remaining minutes by OEE and do not divide again by a separate yield factor. If the site uses an operating-efficiency factor that excludes quality, apply a separate first-pass yield only once.

Written as a decision equation: Required BPM = Annual saleable units x demand buffer / (scheduled run minutes x defined efficiency factor). The numerator and denominator must use the same unit and time boundary. If one pipette contains several doses, or one retail carton contains several pipettes, convert the commercial forecast into the individual unit actually passing the filling and sealing stations before calculating speed.

NIST material notes that OEE is commonly based on availability, performance and quality and also warns that definitions and calculations can vary. Treat OEE as a site-defined assumption supported by actual data or a documented ramp-up model, not as a universal target supplied by the machine vendor.

Capacity term	Definition for this model	Typical owner	Double-counting check
Annual saleable units	Good pipettes or dose packs required for the planning year	Sales and supply planning	Do not mix cartons and individual pipettes
Demand buffer	Approved uplift for forecast error, growth or recovery	Supply planning and finance	Do not add the same buffer again as spare capacity
Scheduled run minutes	Time deliberately allocated to the line	Production planning	Remove only planned exclusions named in the model
Efficiency factor	Defined availability, speed and possibly quality losses	Operations and engineering	State whether rejects are already included
Required BPM	Good-output demand translated to the line’s rated-unit basis	Project engineering	Map multiple lanes or cavities to units per minute

Convert the Commercial Forecast into Line Units

Direct answer: Capacity starts with the number of units that cross the filler and sealer, not revenue, liters or cartons alone.

Build a format table by SKU. Record forecast cartons, pipettes per carton, fill volume, pipette material and seal format. Annual line units equal cartons multiplied by pipettes per carton, plus approved samples and any separately planned stability or validation quantities. Keep saleable demand separate from expected process rejects so the loss treatment remains visible.

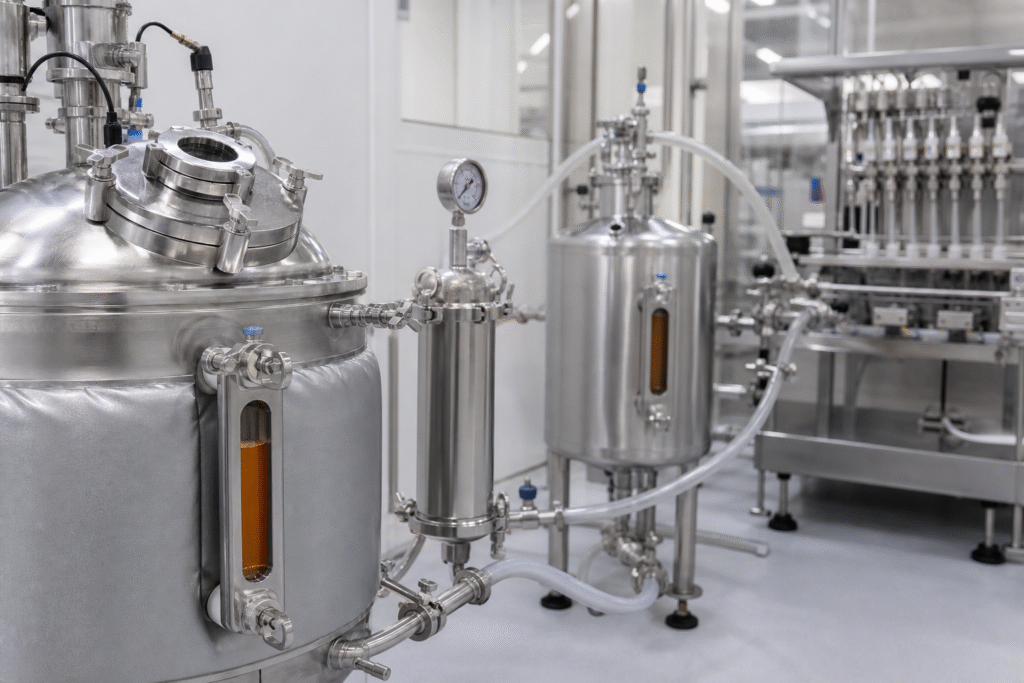

For liquid planning, liters are useful for bulk preparation and tank sizing but do not directly set packaging BPM. Two SKUs can consume the same annual liters while requiring very different numbers of pipettes and changeovers. Capacity must therefore be calculated by individual format and then aggregated through the campaign calendar.

Freeze the planning horizon and forecast version. Identify launch products, phase-outs and seasonal demand. A line selected from one total annual number can be undersized if most demand must be produced in a short peak window or if the pack mix creates many low-volume campaigns.

Build the Scheduled-Minute Calendar Before Applying OEE

Direct answer: Use production minutes that the factory can actually assign to the line, then list every planned exclusion explicitly.

Start with production days multiplied by shifts per day, paid production hours per shift and 60 minutes. Next remove time that is intentionally unavailable: holidays inside the planning calendar, planned preventive maintenance, qualification campaigns, sanitation or line clearance outside the OEE boundary, and shared-utility restrictions. Keep the calculation in a worksheet that shows both gross and net scheduled minutes.

Decide how breaks, shift handovers and routine meetings are treated. The correct treatment is less important than consistency. If they are removed before OEE, the historical OEE used in the model must have been calculated on the same planned-production boundary. If they are retained, the efficiency factor must capture the associated availability loss.

Do not assume that a second shift doubles annual capacity. Staffing, quality support, component staging, bulk availability, cleaning, maintenance coverage and downstream cartoning may not be available for both shifts. The schedule should be jointly approved by production, quality, maintenance and supply planning.

Model Campaigns and Changeovers by Format

Direct answer: Changeover demand is a function of SKU sequence and campaign size, so it should be modeled as events rather than a generic percentage when data are available.

List each expected campaign, its good-unit target and the preceding and following formats. Separate product-path cleaning, package-format change, printed-material clearance, recipe verification, startup sampling and quality release. Some activities can overlap; others keep the complete line unavailable. Record the critical path rather than adding every task duration blindly.

Use at least three scenarios: base campaign plan, peak-season plan and disruption recovery. A small annual volume divided among many SKUs may require more capacity than a larger single-SKU program because the line repeatedly stops, clears, changes and restarts. The model should show changeover minutes and number of events for each format.

When the project has no reliable history, use a provisional engineering allowance and label it as an assumption to be replaced during trial and ramp-up. Request that the supplier demonstrate mechanical changeover steps, recipe control and first-good-unit checks during FAT, but keep site cleaning validation and organizational release time in the owner’s model.

Apply OEE and Reject Assumptions Without Counting Losses Twice

Direct answer: Choose either a complete OEE factor or separate availability, performance and quality factors, then document the source and period for each input.

OEE is often expressed as availability multiplied by performance multiplied by quality. Availability captures losses while the equipment is scheduled, performance captures operation below the defined ideal rate and quality captures good output relative to total output. The exact site rules for micro-stops, startup rejects and planned losses must be stated because organizations classify them differently.

If the model uses OEE including quality, do not also divide by one minus reject rate. If the model instead uses run availability and speed efficiency only, divide by a separately defined good-yield factor. In both cases, preserve the source: current comparable line data, a ramp-up assumption, or an approved management target. A supplier’s nameplate rate is not an OEE value.

Run sensitivity cases rather than arguing over one optimistic percentage. Show required BPM at a conservative ramp-up factor, a base factor and a mature factor. The purchase decision should survive the lower credible case or have an explicit plan for overtime, extra shifts, parallel modules or outsourced recovery.

Worked Example: Convert 3.6 Million Good Units into BPM

Direct answer: With the stated example assumptions, 3.6 million annual good units plus a 10% demand buffer require about 34.5 BPM, rounded upward before line-balance and recovery review.

Assume a site plans 220 production days, two eight-hour shifts per day and 20,000 minutes of named planned exclusions. Gross scheduled time is 211,200 minutes; net scheduled run time is 191,200 minutes. Assume an OEE of 60% that already includes availability, performance and quality. These figures are examples only and are not benchmarks.

Buffered demand is 3,600,000 x 1.10 = 3,960,000 good units. Effective good-output time is 191,200 x 0.60 = 114,720 minutes. Required rate is 3,960,000 / 114,720 = 34.5 good units per minute. Rounding to 35 BPM only completes the arithmetic; it does not prove that a 35-BPM configuration can sustain the product, seal, inspection and downstream pack requirements.

Repeat the calculation by SKU and peak month. If a four-lane machine completes one indexed machine cycle while producing four pipettes, convert cycles to individual units consistently. Then test whether the slowest approved format, not the easiest sample, can achieve the modeled sustained rate with acceptable rejects.

Example input	Assumption	Calculation	Result
Annual good demand	3,600,000 units	3,600,000 x 1.10 buffer	3,960,000
Gross schedule	220 days x 2 shifts x 8 h	220 x 2 x 8 x 60	211,200 min
Named planned exclusions	20,000 min	211,200 – 20,000	191,200 min
Defined OEE	60%, includes quality	191,200 x 0.60	114,720 effective min
Required nominal rate	Buffered units / effective minutes	3,960,000 / 114,720	34.5 BPM

Balance Filling, Sealing, Inspection and Cartoning

Direct answer: The line capacity is the sustainable good-output rate of the slowest validated operation after transfer and buffer limits are included.

Create a station table for pipette feeding, orientation, filling, tail or body sealing, coding, leak or visual inspection, counting, cartoning and case packing. For every format, record sustained rate, planned challenge frequency, reject behavior and buffer capacity. Nameplate rates from separate machines cannot simply be added together.

If the filler and sealer are integrated, determine which operation limits the index rate and how a jam affects product already filled but not sealed. If equipment is separate, define the allowable waiting time, accumulation orientation, product protection and disposition after an extended stop. The KING PACK spot-on filling and sealing platform is a relevant equipment family, but its project rate must be confirmed with the customer’s formula and package.

Downstream inspection and cartoning deserve the same attention as filling. A filler that repeatedly starves a manual cartoner creates work in process and identity risk. A high-speed cartoner does not solve an upstream seal-cooling limit. Review the complete value stream and identify the constraint for each SKU.

Select Pilot, Compact or High-Output Architecture by Campaign Behavior

Direct answer: Architecture should follow campaign length, format count, labor model and recovery strategy; universal BPM bands are less useful than the ratio of demand to proven sustainable capacity.

A pilot or low-volume arrangement is suitable when development flexibility, frequent format work and manual observation matter more than automation. A compact automated line fits repeated commercial campaigns with controlled labor and moderate accumulation. A high-output or multi-lane architecture becomes relevant when long campaigns, peak demand and upstream bulk supply can keep it loaded.

Do not equate more lanes with lower risk. Multi-lane feeding, dose distribution, seal tooling, inspection and rejects must remain balanced. A single lane may be easier to change and investigate; multiple lanes can reduce footprint per unit but increase the amount of evidence required to show equivalent performance across lanes.

Use the required BPM as a starting point, then compare annual utilization, peak utilization, spare capacity after the slowest format, expected changeover share and the consequence of one module being unavailable. The decision table should state which recovery options are actually funded and staffed.

Set Growth, Recovery and Buffer Capacity Deliberately

Direct answer: Headroom should correspond to a named business risk such as forecast growth, maintenance recovery or peak-season production, not an unexplained percentage.

Separate forecast buffer in the numerator from equipment headroom in the selected configuration. The first protects demand planning; the second creates the ability to recover from disruptions or absorb growth. If both are used, label them and show their combined effect so capacity is neither understated nor padded invisibly.

Consider alternative recovery paths: weekend production, an extra shift, faster campaign sequencing, parallel filling heads, a duplicate critical module or finished-goods inventory. Each option has quality, labor, maintenance and cash implications. A buyer should choose the least risky feasible combination rather than simply buying the fastest machine.

Buffer conveyors can decouple short stops but do not create capacity. Define maximum accumulation, product waiting time, first-in/first-out behavior and the status of units between fill and seal. The KING PACK filling and capping line range can support broader line-interface discussions where spot-on packs connect to secondary handling.

Confirm the Model with Product and Package Trials

Direct answer: Arithmetic proposes a rate; representative product and package testing establishes whether the rate is technically credible.

Supply the actual formulation or a justified simulant that reproduces viscosity, surface behavior, solvent interaction, foaming and sealing-zone contamination risk. Provide approved pipettes across tolerance extremes, seal materials, labels and downstream packs. Water and nominal empty components can check motion but rarely represent the complete operating window.

Test the slowest and most difficult formats at the proposed rate. Observe dose consistency, product path stability, nozzle behavior, seal-zone cleanliness, seal appearance, cooling, package handling, code quality, inspection and rejects. Record results by lane or head where applicable and retain the machine recipe and sample identities.

FDA’s process-validation guidance describes a lifecycle approach in which process design, process qualification and continued verification work together. FAT is supplier-site equipment evidence inside that larger lifecycle; it is not commercial process validation or product approval.

Require Sustained-Run FAT Evidence

Direct answer: A short best-case demonstration cannot support an annual capacity claim; FAT should prove the agreed sustainable rate and loss response for representative formats.

EU GMP Annex 15 states that qualification and validation should address critical aspects through a risk-based approach and defines FAT/SAT considerations. Use the applicable site quality system to set protocol approval, deviations and acceptance. The supplier and user should agree what FAT can prove and what remains for installation, operation and performance qualification.

• Freeze test units, formulation or simulant, format revision and environmental assumptions before FAT.
• State whether the target is gross units, accepted units or cartons per minute and how multiple lanes are counted.
• Run startup, steady state, planned stop, restart, low bulk level and batch-end conditions.
• Record total units, accepted units, rejects, reasons, downtime and actual run time using one clock boundary.
• Challenge pipette feed, filling, sealing, coding, inspection, reject and downstream handoff functions.
• Demonstrate the slowest format and at least one relevant changeover instead of only the easiest sample.
• Identify site-only SAT and qualification items rather than marking untested functions as accepted.
• Retain raw records, settings, sample references, open-item list and approved test report.

Prepare a Capacity Data Pack for the RFQ

Direct answer: A useful quotation requires demand, time, product, package and acceptance inputs in one controlled data pack.

Keep assumptions distinct from requirements. If the site does not yet have measured OEE or changeover data, state the provisional values and ask the bidder to show sensitivity. Do not let a vendor replace missing owner inputs with an untraceable capacity promise.

• Annual and peak-month saleable units by SKU, plus pipettes per carton and approved forecast buffer.
• Production days, shifts, staffed hours, planned exclusions and the exact OEE or loss-factor definition.
• Campaign sizes, sequence constraints, expected changeovers and site cleaning or line-clearance assumptions.
• Formulation properties, temperature range, fill volumes, pipette drawings, material structures and samples.
• Required coding, inspection, leak-test, reject, cartoning and data-recording functions.
• Current and future format list, peak recovery strategy, utilities, room constraints and interfaces.
• FAT/SAT protocol expectations, sustained-run duration, good-output definition and reporting format.

How to Evaluate a Spot-On Line Supplier

Direct answer: Choose a supplier that can reproduce the capacity calculation, expose bottlenecks and test sustainable good output with the customer’s real formats.

The KING PACK pharmaceutical and veterinary industry page provides broader application context. The final purchasing decision should still be driven by the approved capacity model and representative testing evidence.

• Request a line-balance table by SKU with nominal, sustained and accepted-output definitions.
• Review which losses are inside the proposed rate and which remain owner assumptions.
• Ask for sample testing, seal-window development boundaries and documented settings by format.
• Review layout, accumulation, reject control, electrical drawings, alarm list and spare-parts strategy.
• Confirm FAT/SAT scope, calibration, manuals, training and IQ/OQ support where contracted.
• Verify the exact scope of CE, ISO or other evidence; do not treat a generic certificate as product approval.

How KING PACK Turns Demand Inputs into a Line-Speed Review

Direct answer: KING PACK can use the customer’s forecast, formats and production calendar to frame a required BPM range, identify the expected bottleneck and define sample-test evidence.

KING PACK Machinery is a China-based manufacturer of pharmaceutical, veterinary, cosmetic and liquid filling and packaging equipment, with core solutions covering tube filling and sealing, vacuum emulsifying, liquid filling, pet spot-on filling and prefilled syringe production systems.

For a spot-on project, the engineering review can connect annual dose demand, pack mix, campaign pattern, shifts, efficiency assumptions, product behavior, pipette geometry, sealing, inspection and secondary packaging. The result should be an assumption-led speed range rather than a single unsupported headline rate.

Send annual units by SKU, peak demand, pipettes per carton, planned days and shifts, OEE definition, changeover count, formulation data, component drawings and samples through the KING PACK contact page. KING PACK can then propose the sample trial, line balance and FAT evidence needed to confirm capacity.

Frequently Asked Questions

What is the basic formula for spot-on filling line BPM?

Divide buffered annual good units by effective production minutes. Effective minutes equal the scheduled time remaining after named planned exclusions multiplied by a clearly defined efficiency factor.

Should rejects be added on top of OEE?

Only if the efficiency factor excludes quality loss. If OEE already includes quality, adding a separate reject factor counts the same loss twice.

Is a higher nameplate speed always safer?

No. Excess speed can add cost and complexity while the actual bottleneck remains sealing, inspection, changeover or cartoning. Compare sustainable accepted output by format.

How should several pipette sizes be combined?

Convert every SKU forecast into individual line units, calculate campaign and changeover time by format, and confirm the slowest approved format at FAT.

Can water be used for the capacity test?

Water can test basic motion but may not represent viscosity, surface behavior, solvent effects, dripping or seal-zone contamination. Use the product or a justified simulant.

How much OEE should be assumed for a new line?

There is no universal value. Use comparable site history or clearly labeled ramp-up scenarios, and show how the required BPM changes across credible cases.

Does a buffer conveyor increase annual capacity?

No. It can absorb short mismatches between stations but does not increase the sustainable rate of the bottleneck. Waiting-time and product-status rules are still needed.

What should an FAT speed report contain?

Record the format, samples, recipe, target and actual rate, run time, good units, reject reasons, downtime, operating states, changeover result, deviations and open SAT items.
