Applicable Materials: Liquid and ointment
Applicable Specifications: Various types of prefilled syringes
Filling Range: 0.1–30ml (requires change of plunger pump)
Number of Injection Nozzles: —
Filling Accuracy: ≤ ±1.5%
Production Capacity: 3,600–3,900 pcs/h
Power: 4 kW
Voltage: 380V, 50Hz
Compressed Air: 0.6–0.7 MPa
Dimensions: L3195 × W1458 × H1970 mm
Weight: 800 kg
We are a factory established in 2009 in Wuxi City, 1 hour’s way from Shanghai. We have independent R&D, PMC, QC and production departments. The quality and delivery are fully controllable. We have 12 sets of CNC machines in in total.
Instant Response + Professional Team + Polite Attitude.
We have professional English-speaking team to support any time by video meeting. Our factory has enough stock of spares to save your waiting time. Please use our machines safely and happily.
Kingpack has obtained more than 3000 projects experience. You just provide your sales quantity, products and packages to us, and we design semi-auto or fully-auto machine solutions, specific models and budget, deliver plan for you.
Our machines were exported to over 60 countries, qualified with CE, ISO certificate. We provide the same or similar project case references. Site or remote FAT acceptance are provided strictly and comprehensively for customer’s confirm. The parameters, features, appearance and Operation reliability are confirmed one by one.
Features
Applicable to all types of prefilled syringes, with customization available for special syringe types.
The surface is made of SUS304 stainless steel, while product-contact parts are made of SUS316L stainless steel and medical-grade silicone rubber, fully compliant with GMP standards.

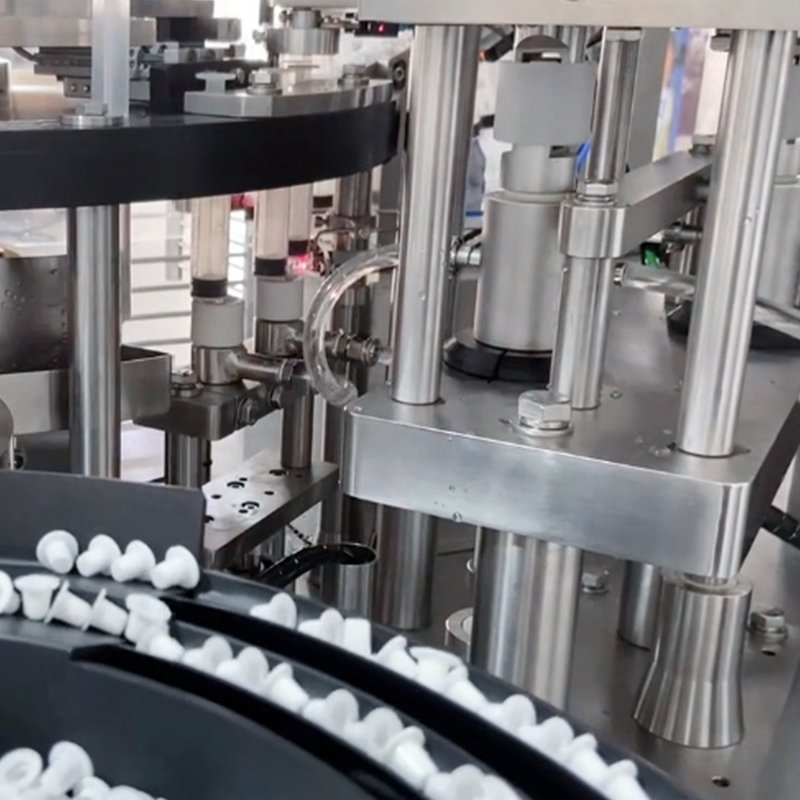

Ceramic plunger pump enables precise quantitative filling, with resistance to acid, alkali, wear, and high temperatures, ensuring high filling accuracy.

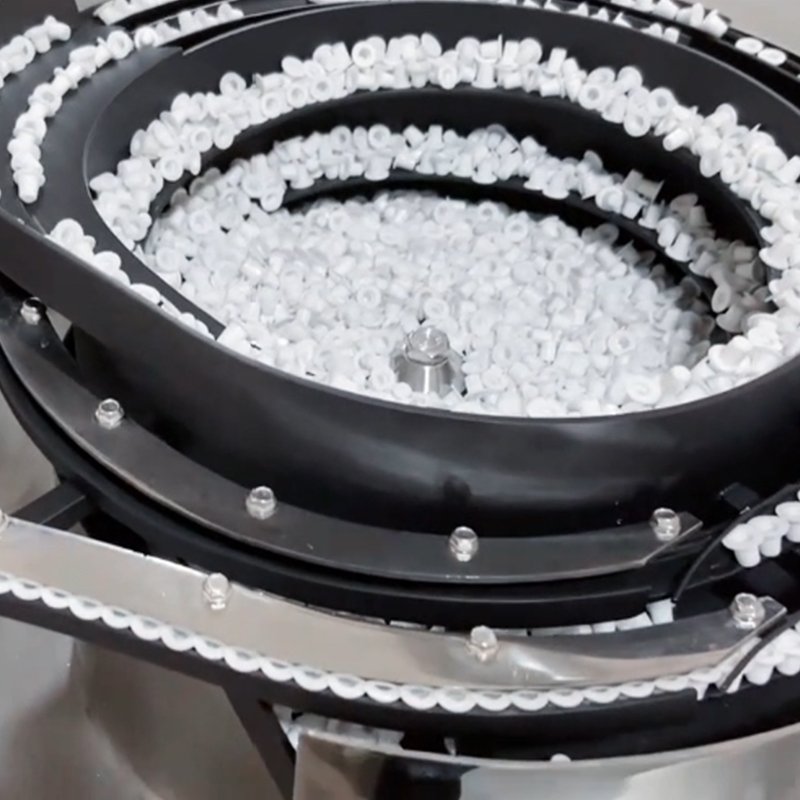

Cap sorting and conveying are achieved via a vibrating plate made of SUS316L stainless steel, with no cleaning dead corners. The top plate is detachable and supports sterilization.

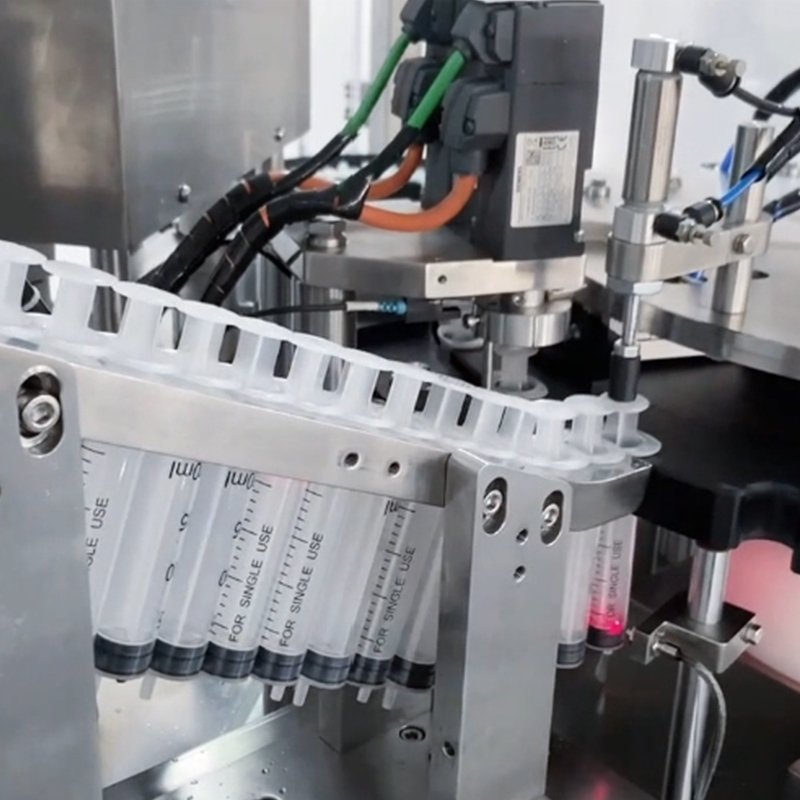

Syringe feeding is realized through a centrifugal plate, offering high stability, fast speed, and low noise.
Equipped with internationally renowned electrical components, adopting non-interference modular control. All synchronous actions are driven by servo motors for high accuracy, reliability, and easy operation.
Motor operation is controlled by a PLC system. The HMI provides real-time monitoring of each station, with automatic alarms showing fault location and prompts.
Multiple filling volumes and methods are available, supporting storage of various formula parameters.
Fully automatic operation including syringe feeding, filling, cap sorting, and capping.
Modular design allows adaptation to various syringe specifications by changing format parts. Can operate as a stand-alone machine or be integrated with elevators, labeling machines, light inspection systems, and other equipment to form a complete production line.
Optional automatic feeding system with liquid level sensing ensures continuous material supply.
Optional Class A laminar flow hood available for high-level cleanroom production.
