Working volume (L) : 500 Main pan thickness (mm) : 6*5*3 Mixing power (Kw) : 3 Mixing speed (rpm) : 0~86 Mixing blade thickness (mm) : 12 Homogenizer power (Kw) : 7.5 Electric heating power (Kw) : 22 Homogeneous speed (rpm) : 100~2950 Sealing method: mechanical seal, oil seal Machine size (LxWxH)m: 950*1900

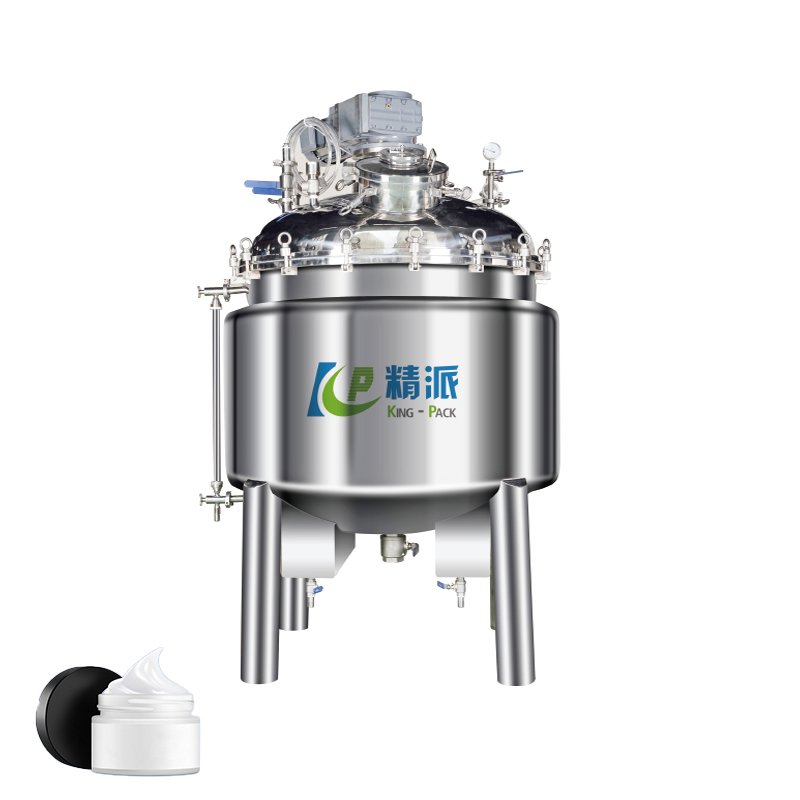

Emulsifying pot： Working volume（L）：500 Main pot thickness (mm)：6*5*3 Scraper stirring power (KW)：4 Scraper stirring speed (RPM)：0~62 Homogenizer power (KW)：7.5 Lifting power (KW)：1.5 hydraulic pressure Homogenizer speed (RPM)：100~2950 Sealing method： Skeleton oil seal；Mechanical seal Water pot： Capacity (L):320 Water pot thickness (mm):4*3 Dispersing speed (RPM):1400 Dispersing power (KW):1.1 Oil pot: Capacity (L):210 Oil pot thickness (mm):4*3*3 Dispersing speed (RPM)：1400 Dispersing power (KW)：1.1 Overall： Size (LxWxH) (mm)：2600*3600*2980(4300

Design Volume(L):12.5 Capacity(L):10 Scraper Stirring Power(kw):0.55 Scraper StirringSpeed(rpm):0-86 Homogenizer Power(kw):1.5 ElectricalHeating Power(kw):1 HomogenizerSpeed(rpm):2900

Product Model :KPZRJ-100 Main pan thickness :4*3*3mm Lifting power :1.5 hydraulic pressure Homogenizer power :3kW Homogeneous speed :100~2850rpm Mixing speed of scraper: 0-86rpm

Mainpot： Working volume (L)：500 Scraper stirring power (kw)：5.5 Scraper stirring speed (rpm)：0~62 Dispersing power (KW)*2：5.5 Dispersing speed (rmp)：0~1400 Hydraulic Lifting power (kw)：2.2 Sealing method：Mechanical seal, Oil seal Water pot： Working volume (L)：300 Dispersing speed (rmp)：1400 Dispersing power (kw)：1.1 Electric heating power (kw)：12 Oil pot： Working volume (L)：200 Dispersing speed (rmp)：120 Dispersing power (kw)：1.1 Electric heating power (kw)：12 Powder tank： Working volume (L)：500 Mixing power (kw)：2.2 Mixing speed (kw)：42 Size（L×W×H）mm：2880*2575*2850（3840） Main machine： Overall (L×W×H) mm：2880*2575*2850（3840）

Capacity: 300L (Design 350L)Structure: 3-layer pot with heating, insulation, cooling, and vacuum systemStirring: Frame wall scraping, two-way; external PTFE scraper; 2.2 kW; 0-63 rpm; SS 316 agitatorHomogenizer: Upper homogenizer; 5.5 kW; 0-3000 rpm; SS 316Sealing: Skeleton oil seal (pot and homogenizer)Cover: Sealed, non-openingHeating: Electric 12 kWFeeding: Vacuum suction or direct feedDischarge: Bottom discharge; φ50mm SS ball or butterfly valveTemperature Display: Electric thermometerVacuum Display: Pointer vacuum gaugePan Lid Features: Material filter, vacuum ports, inspection lamp, mirror with scraper, spice bucket, rotary cleaning ball, air respiratorCleaning: 360° rotary cleaning ball

Model: KPPM-100 Vacuum Planetary Mixer Basic Structure: Lifting lid with sealed planetary gearbox Dual mixing shafts with PTFE scrapers and emulsifier Contact parts made of SUS316L stainless steel Outer panels made of SUS304 stainless steel Working Volume: 100 L Design Volume: 149 L Main Power: 23 kW Power Supply: 380V / 50Hz / 3Ph; Control voltage: 24V Overall Dimensions: As per drawing Weight: Approx. 1300 kg

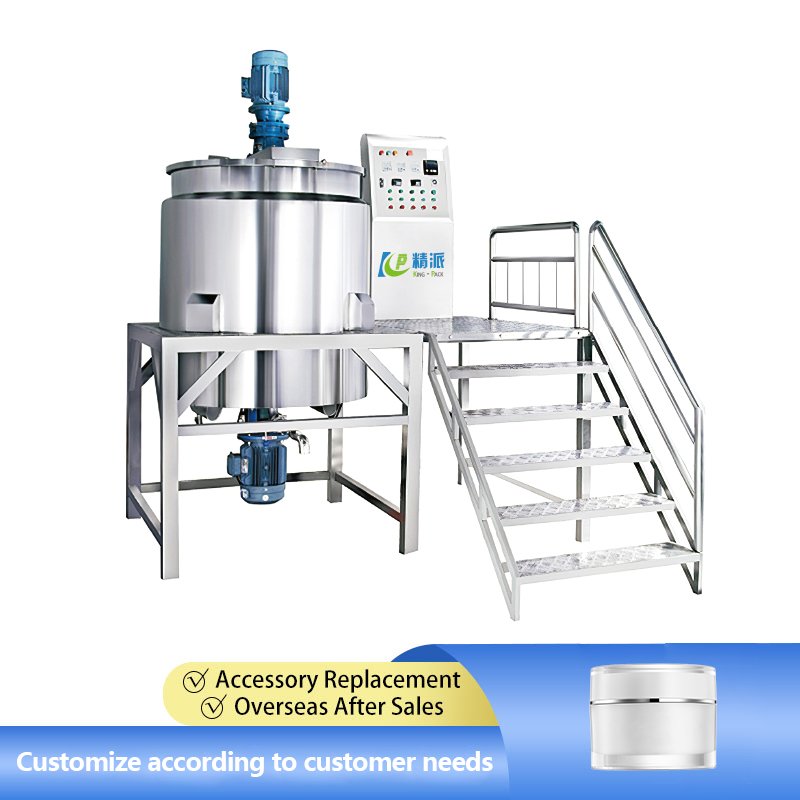

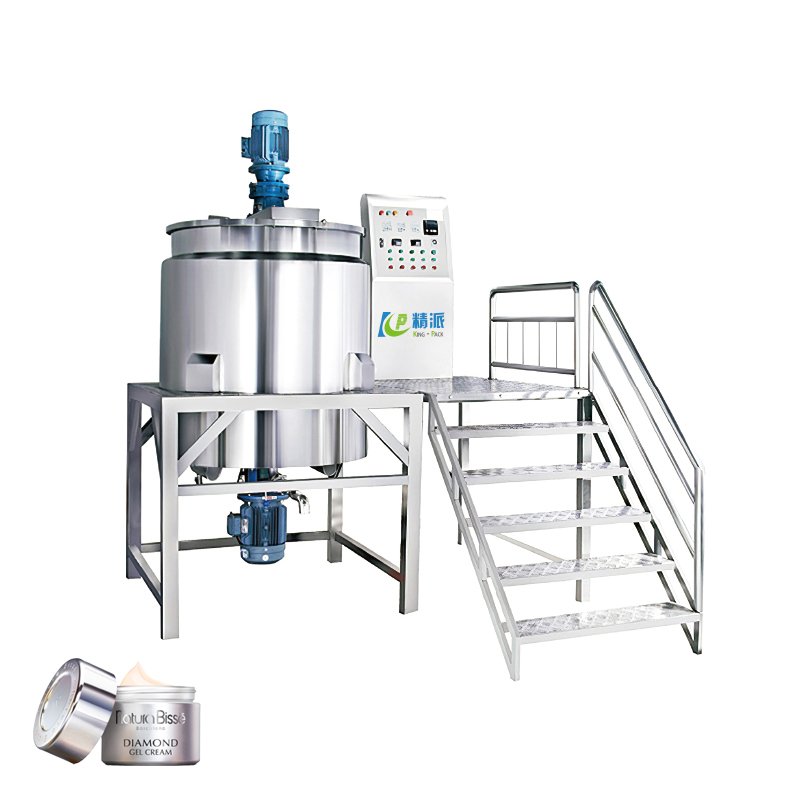

KPY type liquid washing reaction mixing tank is a daily chemical industry equipment, it is suitable for the mixing of different materials, such as the production of shampoo, body wash and other mucus mixing, dissolution, uniform mixing, etc., set mixing, dispersion, heating, cooling, pumping, defoaming (optional) and other functions in one, is the ideal equipment […]
