Last reviewed: September 4, 2026.
A veterinary liquid filling line is not CIP-ready merely because a recipe can start a pump and open valves. Validation evidence must show that the defined product-contact path receives the intended cleaning conditions, drains predictably, reaches justified endpoints and remains controlled until the next use. If sterilization in place is part of the process, its separate boundary and critical conditions also require qualification.
eSee our filling and capping line solutions for integrated sanitary production.
The central buying decision is therefore not whether a supplier offers a button labelled CIP or SIP. It is whether the mechanical design, instrumentation, automation records, sampling strategy and test plan can support the product owner’s cleaning and contamination-control rationale. That evidence should begin with the user requirements specification and continue through design review, FAT, SAT, IQ, OQ and site cleaning validation.
This guide focuses narrowly on product paths, drainability, coverage, cleaning endpoints and hold-time evidence. It does not prescribe universal velocities, slopes, dead-leg ratios, temperatures, chemical concentrations or microbiological limits. Those values depend on the formulation, soil, detergent, equipment geometry, utilities, applicable market and the manufacturer’s approved validation strategy.
Quick answer: CIP/SIP readiness is supported by a traceable chain of evidence: an approved boundary and P&ID, hygienic-design review, documented recipe parameters, coverage and drainage challenges, calibrated monitoring, justified analytical endpoints, hold-time studies and closed deviations. The project team must define product, soil, detergent, utility and acceptance inputs before testing; representative product or scientifically justified soil and site validation must confirm that the selected conditions work in the installed system.
1. Use an Evidence Chain, Not a CIP Feature Checklist
Direct answer: The decision rule is simple: every critical design and recipe claim must connect to an approved requirement, an executable test, a predefined acceptance criterion and a retained record.
Start with the contamination and carryover risks that the cleaning process must control. Map each risk to a design feature or operating parameter, then identify how the feature will be inspected or challenged. A self-draining valve, for example, is not accepted from a catalogue statement alone; its installed orientation, downstream low point, actuation state and residual liquid after the recipe must be examined.
The evidence chain should distinguish equipment qualification from process validation. A supplier can demonstrate valve sequencing, instrument function, repeatable flow paths and representative coverage. The manufacturing site remains responsible for choosing worst cases, setting residue and microbiological acceptance criteria, validating analytical methods and demonstrating cleaning effectiveness with its products and procedures.
2. Freeze the Product Path and Cleaning Boundary
Direct answer: Validation cannot be complete until the team agrees exactly which vessels, hoses, pumps, meters, valves, manifolds, nozzles, return lines and temporary connections are inside the cleaning boundary.

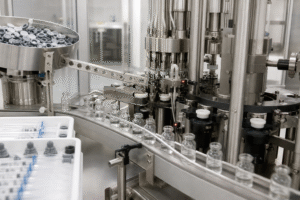

Mark the boundary on a controlled P&ID and assign equipment and instrument tags. Include normal production paths, recirculation loops, bypasses, sampling points, pressure-relief routes, drain branches and the wetted faces of isolation valves. If the KING PACK filling and capping line receives product from an upstream hold vessel, define who supplies, cleans and releases the interface hose and connection.
Record every machine state that changes the path: production, recirculation, CIP supply, CIP return, drain, air blow, manual sampling and maintenance. Temporary jumpers and manually moved hoses deserve special attention because an automation record cannot prove a path that depends on an undocumented operator connection. The boundary drawing should match the installed line before OQ begins.
3. Turn Product and Soil Data into Cleaning Inputs
Direct answer: The cleaning cycle should be developed from the hardest credible soil and exposure condition, not copied from an unrelated liquid line.
Provide the formulation family, viscosity versus temperature, solubility, foaming tendency, potency or sensitization concerns, microbial susceptibility, colorants, preservatives and maximum pre-clean hold. Identify whether the residue dries, polymerizes, crystallizes or becomes more difficult to remove after heating. The existing liquid filling machine selection guide is useful for product-handling context, while this article owns cleaning evidence rather than filler selection.
Add detergent and rinse-water data: approved chemical identity, intended concentration range, compatible temperature range, contact time, water quality, disposal constraints and neutralization requirements. The equipment supplier needs these inputs to review materials, seals, pump duty, heating, instrumentation and recipe sequences. The user then links them to residue limits and validated methods.
4. Prove Drainability by Inspection and Challenge
Direct answer: Drainability is demonstrated by the installed geometry and a repeatable drainage test; a nominal pipe slope on a drawing is only one input.
Review elevations, valve orientations, reducer direction, instrument pockets, hose routing, nozzle manifolds and removable parts. Identify every low point and define how it drains. Flexible hoses may be hygienic when installed correctly yet retain liquid when allowed to sag. A line that drains when empty may also trap a viscous veterinary formulation or foam-laden rinse under production conditions.
During FAT or SAT, use a safe test liquid selected by the protocol, execute the normal end-of-cycle sequence and measure or otherwise document residual locations. Photographs, tagged observations, collected residual volume where meaningful, drain-time trends and deviation records create stronger evidence than a pass/fail statement. Site verification is essential when final utility pressure, floor drains or installed hose elevations differ from the vendor floor.
5. Review Dead Legs, Low-Flow Branches and Air Pockets
Direct answer: A branch is acceptable only when its geometry, orientation and operating sequence allow the required cleaning and drainage performance to be demonstrated for the actual project.
Do not adopt one unexplained dead-leg ratio as a universal answer. Instead, list branches to pressure transmitters, sample valves, spare ports, bypasses and nozzle drops, then assess length, diameter, orientation, flow regime and whether the branch is actively swept. A short branch can still be problematic if gas blocks liquid entry or if its valve face remains outside the cleaning path.
Challenge unfavorable valve combinations and the end points of manifolds. Transparent mock-ups, removable inspection pieces or targeted coverage indicators may help during development, but final acceptance should reflect the installed metallic path and approved cleaning recipe. Any uncleanable branch should be redesigned, removed or assigned a controlled manual-cleaning method with its own verification.
6. Establish Flow and Coverage Without Inventing Universal Thresholds
Direct answer: Specify measurable flow, pressure or return conditions for each circuit, then prove that those conditions reach the complete path and remain within a validated operating range.
The required conditions vary with pipe size, spray device, soil, liquid properties and circuit geometry. Record supply and return flow where practical, pressure at meaningful locations, valve state, pump speed and abnormal conditions such as cavitation or an empty return. A pump setpoint alone is weak evidence because the same speed can produce different flow after a route or restriction changes.
Metering technology and product-path restrictions influence both production and cleaning behavior. The piston, peristaltic and magnetic pump comparison helps explain the production-side choice; the cleaning protocol must separately confirm whether the selected meter is included in CIP, bypassed, dismantled or replaced between products.
7. Control Time, Action, Chemistry and Temperature
Direct answer: A defensible recipe records the critical cleaning conditions at locations that represent what the soil actually experiences, not just what the utility skid sends.
For each step, define the sequence, route, minimum effective contact time, acceptable chemical concentration, temperature range where relevant, mechanical action and rinse endpoint. Place instruments where they can detect loss of control. A supply temperature may not represent a remote return branch, and a tank conductivity reading may not prove the concentration at the far end of the filler manifold.
Define how concentration is prepared and confirmed, how timing starts, what pauses the timer and how alarms affect disposition. Calibrate critical instruments and retain batch-readable records. When the recipe uses air blows or purge gas, specify filtration, pressure, duration and drainage purpose without assuming that gas contact sterilizes or dries the system to a validated endpoint.
8. Use Coverage Studies for Development, Not as a Substitute for Validation
Direct answer: A fluorescent indicator such as riboflavin can reveal missed wetting or shadowing, but it does not by itself establish chemical residue removal, microbial control or sterilization.
Before the study, define the surface preparation, application method, drying condition, cleaning recipe, inspection method, lighting, access and acceptance rules. Record all tested valve states and spray-device conditions. False confidence can arise if the indicator is easier to remove than the real soil, if inaccessible surfaces cannot be inspected or if rinsing after the official cycle removes evidence before examination.
Use the study to refine spray locations, flow paths and inspection points. Then perform cleaning validation with the selected worst-case product or scientifically justified representative, validated sampling recovery and analytical methods. Visual cleanliness is important, but EU GMP Annex 15 states that visual inspection alone is generally not an adequate cleaning-validation acceptance criterion.
9. Define Cleaning Endpoints and Sampling Rationale
Direct answer: Endpoint evidence should combine process-parameter records with product-specific chemical, physical and, where justified, microbiological verification.
Possible endpoints include detergent concentration or absence, product residue, conductivity, total organic carbon, pH, rinse appearance and microbiological results. None is automatically suitable. Select methods for the residue and risk, establish sensitivity and recovery, and justify locations. A clean return sample can miss a poorly swept gasket face, valve cavity or nozzle tip.
Use swab samples for accessible worst-case surfaces and rinse samples where they meaningfully represent the path. Explain which areas each sample can and cannot assess. Acceptance limits, method validation, recovery correction and sampling frequency belong to the site quality system. The supplier should make the defined sample points accessible and repeatable without introducing a new contamination path.
10. Treat SIP as a Separate Qualified Function
Direct answer: SIP is relevant only when the product and contamination-control strategy require an in-place sterilization step and the equipment is designed for the selected sterilizing process.
Do not use CIP and SIP as interchangeable labels. Cleaning removes soil so that a subsequent sterilization process can operate on a controlled surface. Where SIP is required, define the sterilization boundary, utility quality, air removal, condensate drainage, temperature-monitoring locations, cold spots, exposure calculation, post-cycle protection and release logic.
Worst-case load and configuration studies should be designed by the manufacturer’s validation team. Heat-distribution and, where justified, biological-challenge evidence must follow approved protocols. The applicable veterinary market and dosage form determine the regulatory context; a nonsterile oral liquid line should not inherit sterile claims merely because heated water or steam is connected.
11. Validate Dirty Hold, Clean Hold and Post-SIP Hold Times
Direct answer: Hold times are established with studies that bracket the intended operating window and challenge the conditions most likely to worsen residue or contamination risk.
Dirty hold time begins at a defined production endpoint and ends when cleaning starts. Study the formulation, temperature, drying and equipment locations that create the hardest credible soil. Clean hold time begins after an approved cleaning endpoint and covers the protected period before use. Define whether the equipment is closed, dried, vented through a filter, reassembled or exposed during sampling.
If SIP is used, separately define the post-SIP hold boundary and protection strategy. Set alarm and disposition rules for expired holds: repeat cleaning, repeat sterilization, additional verification or quality review as justified. The time stamps should be captured automatically where practical and reconciled to batch and equipment status records.
12. Build Recipe Control, Alarms and Data Integrity into the URS
Direct answer: Automation should make the approved sequence reproducible, prevent invalid routing and produce a reviewable record of critical conditions and exceptions.
Define user roles, recipe version control, parameter limits, electronic records, time synchronization, audit trails where applicable, backup, alarm acknowledgement and manual-override governance. Interlock incompatible valve states and require an authorized disposition after critical alarms. A completed-cycle flag should depend on the approved conditions, not merely on the final step executing.
Specify which raw and calculated values appear in the report, the sampling interval, units and how out-of-range periods are handled. Review the report with operators and quality users during design. The goal is a concise batch record that lets a reviewer reconstruct what happened without relying on screenshots or uncontrolled supplier service logs.
13. Allocate Evidence Across FAT, SAT, IQ and OQ
Direct answer: Test early where the result will survive transport, repeat site-dependent tests after installation and reserve product-specific cleaning validation for the manufacturing site.
EU GMP Annex 15 permits suitable FAT evidence to support later qualification when the approach is justified and functionality is not affected by transport or installation. Use that opportunity to inspect construction, reconcile tags, challenge sequences and correct design issues before shipment. The protocol should state which tests are credited, repeated or completed only at site.
| Evidence item | FAT focus | SAT/IQ/OQ focus | Site validation focus |
|---|---|---|---|
| Boundary and P&ID | Tag and route reconciliation | As-installed utilities and connections | Approved manufacturing boundary |
| Drainability | Machine skid and manifolds | Final elevations, hoses and drains | Worst-case product and hold effects |
| Coverage | Representative circuits and recipes | Installed flow, pressure and return | Residue and microbial endpoints |
| Instrumentation | Range, alarms and data capture | Calibration, loops and records | Routine review and trending |
| Hold times | Timer and alarm logic | State control and timestamps | Dirty, clean and post-SIP studies |
| Deviations | Design and vendor corrections | Installation and utility resolution | Quality disposition and lifecycle control |
14. How to Evaluate a CIP/SIP-Ready Filling-Line Supplier
Direct answer: Choose a supplier that can convert the user’s cleaning strategy into drawings, controlled recipes, inspectable construction and executable evidence instead of making a generic hygienic-design claim.
The KING PACK pharmaceutical and veterinary industry solutions provide the application context for liquid, drop, ointment and gel projects. The equipment proposal should still be evaluated against the owner’s dosage form, intended market, cleaning risk assessment and validation master plan.
- Request a tagged product-contact and cleaning-boundary P&ID before design freeze.

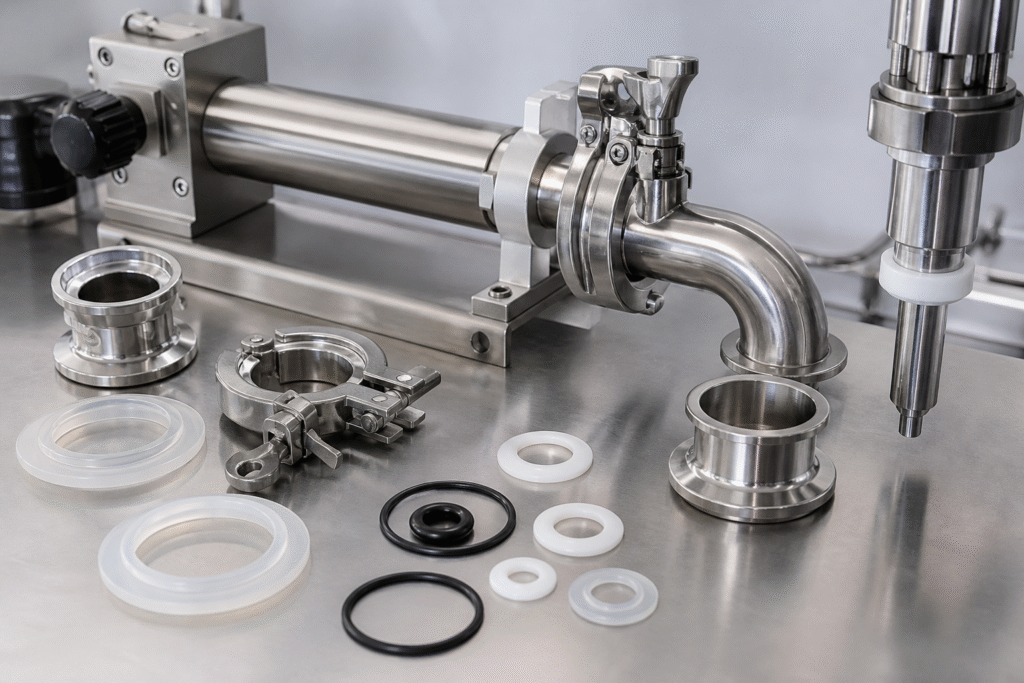

- Review the product-contact materials list, certificates, surface requirements, weld and passivation records where specified.
- Inspect valve orientation, low points, flexible hoses, sample points, nozzle circuits and return routing.
- Require an I/O and alarm matrix, recipe parameter list, role definition and report sample.
- Agree FAT media, worst-case circuits, coverage method, drainage evidence and deviation handling.
- Define SAT, IQ/OQ support, calibration documents, manuals, spare parts and site-only tests.
- Verify the exact certification and regulatory scope; do not accept an unsupported blanket GMP claim.
15. How KING PACK Can Support the Validation Package
Direct answer: KING PACK can support design review and equipment-level testing when the customer supplies the product-path, cleaning and acceptance inputs needed to build a traceable protocol.
KING PACK Machinery is a China-based manufacturer of pharmaceutical, veterinary, cosmetic and liquid filling and packaging equipment, with core solutions covering tube filling and sealing, vacuum emulsifying, liquid filling, pet spot-on filling and prefilled syringe production systems.
For a veterinary liquid project, KING PACK can map tanks, transfer, pumps, meters, valves, nozzles and return paths; identify instruments and recipe states; and align FAT checks with the approved URS. Site cleaning validation, residue limits, analytical methods and final release decisions remain the manufacturer’s responsibility.
Send the controlled P&ID or process sketch, formulations or justified worst-case family, cleaning agents, utility data, residue limits, dirty and clean hold needs, package samples and documentation list through the KING PACK contact page. The team can then prepare a project-specific FAT/OQ evidence matrix rather than a generic CIP checklist.
| Customer input | Why it matters | Supplier deliverable |
|---|---|---|
| Product/soil family | Defines worst-case handling and cleaning challenge | Risk questions and sample-test plan |
| Cleaning agents and utilities | Drives materials, heating, pumps and monitoring | Compatibility and instrumentation review |
| Boundary and P&ID | Defines all routes and responsibilities | Tagged drawings and valve-state matrix |
| Acceptance limits and methods | Connects equipment features to site validation | Sampling access and evidence allocation |
| Hold-time requirements | Defines timers, state protection and alarms | Recipe logic and record requirements |
Frequently Asked Questions
What proves CIP coverage on a veterinary filling line?
Use an approved boundary, tagged P&ID, documented circuit conditions, a justified coverage challenge, drainage evidence and site cleaning results. No single test proves every aspect.
Is a riboflavin test the same as cleaning validation?
No. It is a useful visual coverage-development tool, but it does not prove removal of the actual product, detergent residues, microorganisms or sterilization.
What pipe velocity is required for CIP?
There is no universal value for every circuit. Define and validate flow conditions from the geometry, soil, cleaning chemistry and equipment duty, then measure meaningful supply or return conditions.
Does every veterinary liquid filling line need SIP?
No. SIP is relevant when the product and contamination-control strategy require in-place sterilization and the system is designed for it. Nonsterile lines should not inherit sterile claims.
How should dirty hold time be selected?
Study the longest intended delay under the hardest credible soil condition, including drying, temperature and difficult locations, with a justified margin and predefined response when the limit is exceeded.
Can visual cleanliness be the only acceptance criterion?
Visual inspection is important, but it is generally insufficient alone for cleaning validation. Use justified chemical, physical and microbiological evidence based on risk.
Which CIP tests can be completed at FAT?
FAT can inspect construction and tags and challenge sequences, alarms, representative flow paths, coverage and drainage. Installed utilities, final hose routing and product-specific validation normally require site work.
What should a buyer send before requesting a CIP/SIP proposal?
Send the process boundary, product and soil data, cleaning agents, utility conditions, residue limits, hold-time needs, intended market and required qualification documents.
