Applicable Materials: Liquid
Applicable Specifications: 1ml long / 1–3ml / 5ml / 10ml (requires change of format parts)
Filling Range: 0.1–10ml (requires change of plunger pump)
Number of Injection Nozzles: 10
Filling Accuracy: ≤ ±1.5%
Production Capacity: 9,000–10,000 pcs/h
Power: 15 kW
Voltage: 380V, 50Hz
Compressed Air: 0.6–0.7 MPa
Dimensions: L4469 × W1438 × H1878 mm
Weight: 2000 kg
We are a factory established in 2009 in Wuxi City, 1 hour’s way from Shanghai. We have independent R&D, PMC, QC and production departments. The quality and delivery are fully controllable. We have 12 sets of CNC machines in in total.
Instant Response + Professional Team + Polite Attitude.
We have professional English-speaking team to support any time by video meeting. Our factory has enough stock of spares to save your waiting time. Please use our machines safely and happily.
Kingpack has obtained more than 3000 projects experience. You just provide your sales quantity, products and packages to us, and we design semi-auto or fully-auto machine solutions, specific models and budget, deliver plan for you.
Our machines were exported to over 60 countries, qualified with CE, ISO certificate. We provide the same or similar project case references. Site or remote FAT acceptance are provided strictly and comprehensively for customer’s confirm. The parameters, features, appearance and Operation reliability are confirmed one by one.
Features
Applicable to various brands of RTU nested prefilled syringe packaging materials.
The surface is made of SUS304 stainless steel, while product-contact parts are made of SUS316L stainless steel and medical-grade silicone rubber, fully meeting GMP requirements.
Ceramic plunger pump enables precise quantitative filling, featuring resistance to acid, alkali, wear, and high temperatures, with high filling accuracy.

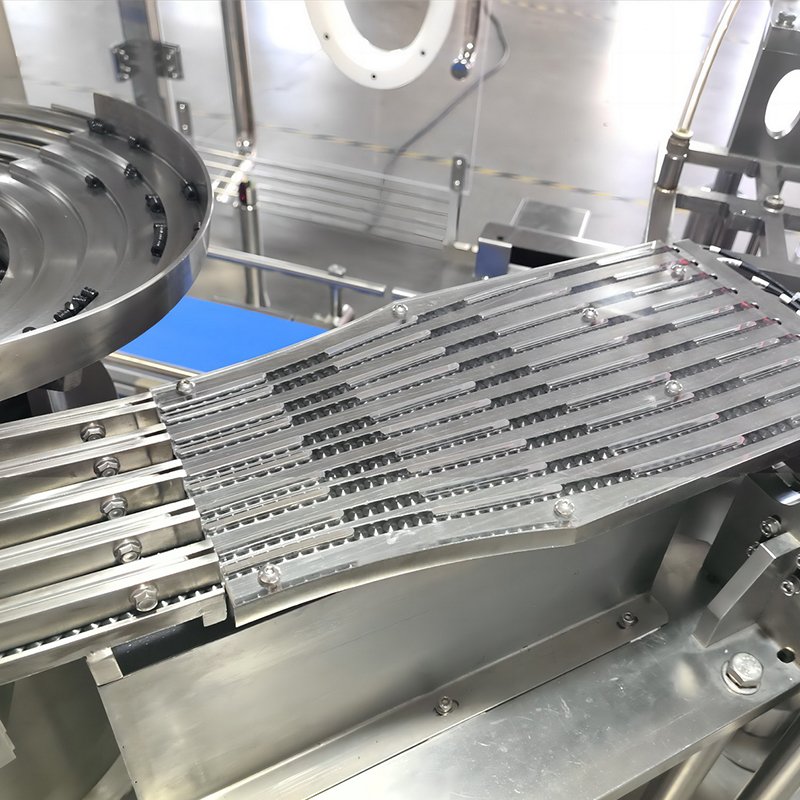

Rubber stopper sorting and conveying are achieved by a vibrating plate made of SUS316L stainless steel, ensuring no cleaning dead corners. The top plate is detachable and supports sterilization.
Equipped with internationally renowned electrical components, adopting modular control with no interference. All synchronous actions are driven by servo motors for high accuracy, reliability, and easy operation.
Motor operation is controlled by a PLC system, with HMI for real-time monitoring of each station. Automatic alarms display fault locations and troubleshooting guidance in real time.
Multiple filling volumes and methods available, supporting storage of multiple formula parameters.

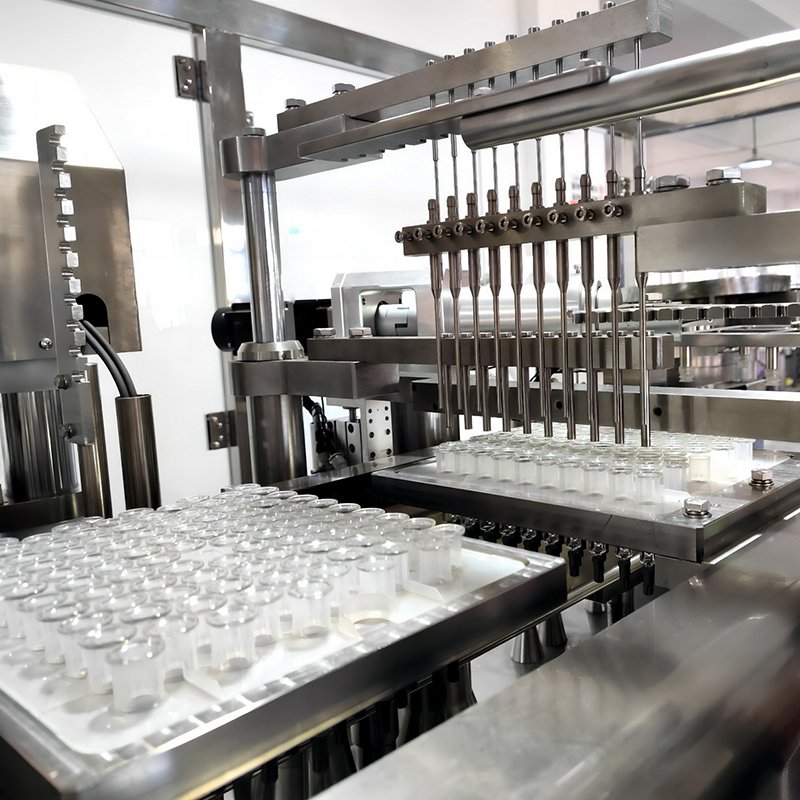

Filling needles move upward with the liquid level during filling to prevent splashing.
High degree of automation with minimal staffing requirements, as few as two operators.
