Mainpot：
Working volume (L)：500
Scraper stirring power (kw)：5.5
Scraper stirring speed (rpm)：0~62
Dispersing power (KW)*2：5.5
Dispersing speed (rmp)：0~1400
Hydraulic Lifting power (kw)：2.2
Sealing method：Mechanical seal, Oil seal
Water pot：
Working volume (L)：300
Dispersing speed (rmp)：1400
Dispersing power (kw)：1.1
Electric heating power (kw)：12
Oil pot：
Working volume (L)：200
Dispersing speed (rmp)：120
Dispersing power (kw)：1.1
Electric heating power (kw)：12
Powder tank：
Working volume (L)：500
Mixing power (kw)：2.2
Mixing speed (kw)：42
Size（L×W×H）mm：2880*2575*2850（3840）
Main machine：
Overall (L×W×H) mm：2880*2575*2850（3840）
We are a factory established in 2009 in Wuxi City, 1 hour’s way from Shanghai. We have independent R&D, PMC, QC and production departments. The quality and delivery are fully controllable. We have 12 sets of CNC machines in in total.
Instant Response + Professional Team + Polite Attitude.
We have professional English-speaking team to support any time by video meeting. Our factory has enough stock of spares to save your waiting time. Please use our machines safely and happily.
Kingpack has obtained more than 3000 projects experience. You just provide your sales quantity, products and packages to us, and we design semi-auto or fully-auto machine solutions, specific models and budget, deliver plan for you.
Our machines were exported to over 60 countries, qualified with CE, ISO certificate. We provide the same or similar project case references. Site or remote FAT acceptance are provided strictly and comprehensively for customer’s confirm. The parameters, features, appearance and Operation reliability are confirmed one by one.
Product Introduction：

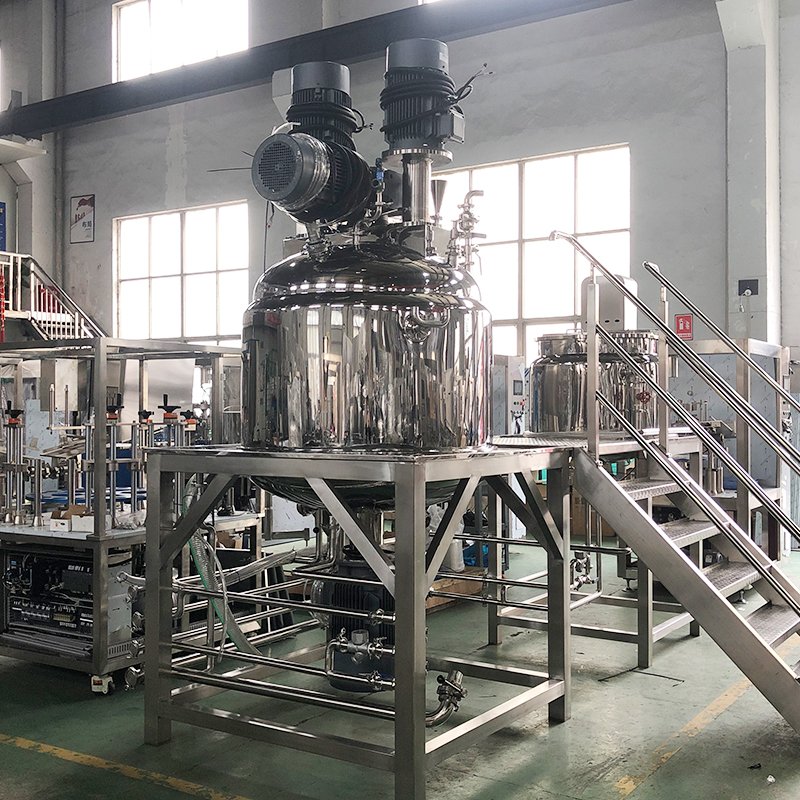

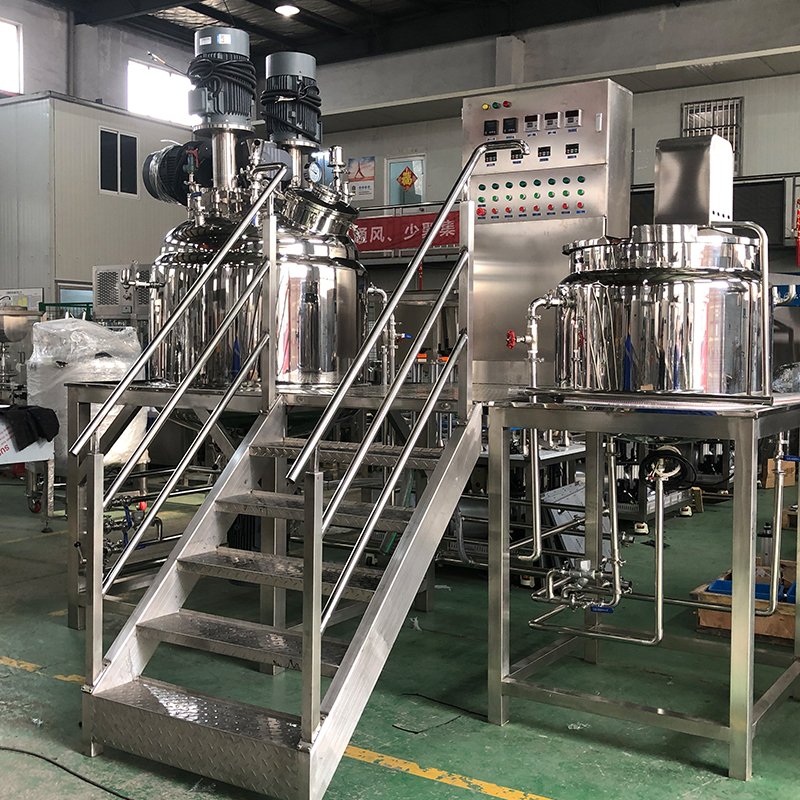

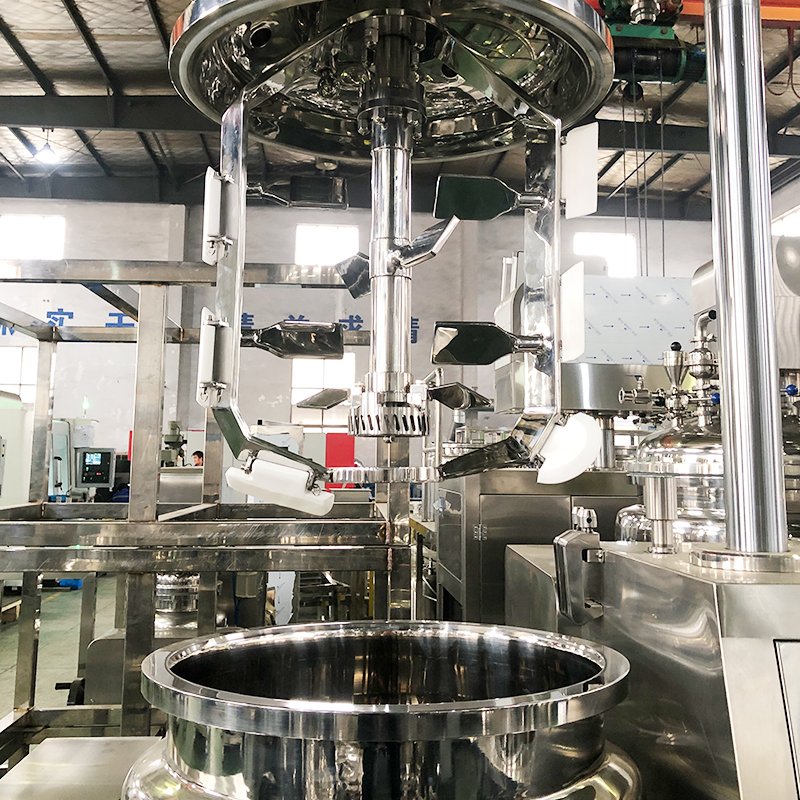

KPYGP vacuum paste making machine is a new generation paste making equipment developed. Under the vacuum state, the scraping agitator
makes the materials in the tank flow from the periphery to the shear in the middle, allowing the materials to move up and down at the same time. Two high-speed rotating shear dispersers rotate at a high speed to fully mix and reorganize the solid powder and liquid materials. The bottom homogeniz
er (optional) continuously cuts and grinds the materials to achieve a stable paste state, so as to ensure that the materials are fine, glossy and bubble
free.

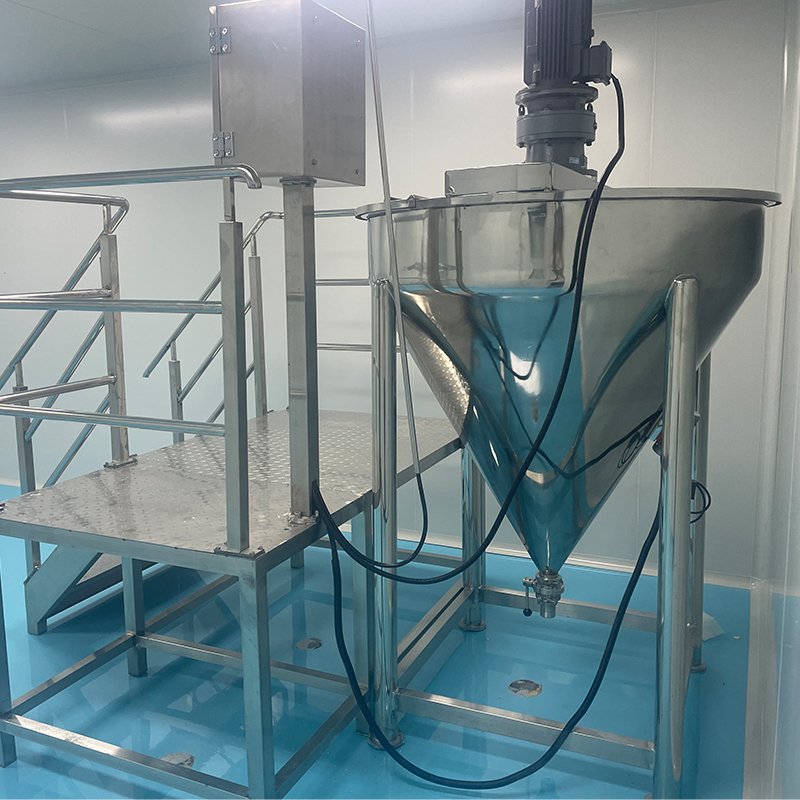

Powder feeding is an important part of the equipment. The supporting equipment integrates powder pneumatic conveying, powder dedusting, whole process closed conveying, and no pollution. It is convenient to operate with the material metering module. It communicates with the host computer to feed back the feeding process in real time. The advanced PLC control system and procedures effectively reduce the amount of air entering and
shorten the product degassing time.
Product Features：
HMI human-computer interaction intelligent control;
The highest vacuum degree of 24-hour pressure maintaining vacuum system can reach -0.0973Mpa;
The homogenization system has advanced technology, axial injection, powerful circulation, and the finished product is more delicate, with
Italian technology;
Easy and efficient cleaning, efficient dispersion, Swiss technology;
The three-level control data is traceable.
