Filling Materials: Fresh ground coffee powder; instant milk powder; instant powder
Speed: ≤ 5,000–6,000 pcs/h
Dosing Method: Servo motor + precision screw
Filling Accuracy: ±0.2 g
Filling Range: 0–10 g (coffee powder); 20–30 g (milk powder)
Sealing: Double in-line cut & seal; reinforced heat sealing
Power Consumption: 7.5 kW
Voltage: AC 380V, 50/60 Hz
Compressed Air: P ≥ 7 Bar
Machine Weight: 2,000 kg
Machine Dimensions: 5,650 mm (L) × 900 mm (W) × 2,500 mm (H)
Packing for Shipment: Wooden case
We are a factory established in 2009 in Wuxi City, 1 hour’s way from Shanghai. We have independent R&D, PMC, QC and production departments. The quality and delivery are fully controllable. We have 12 sets of CNC machines in in total.
Instant Response + Professional Team + Polite Attitude.
We have professional English-speaking team to support any time by video meeting. Our factory has enough stock of spares to save your waiting time. Please use our machines safely and happily.
Kingpack has obtained more than 3000 projects experience. You just provide your sales quantity, products and packages to us, and we design semi-auto or fully-auto machine solutions, specific models and budget, deliver plan for you.
Our machines were exported to over 60 countries, qualified with CE, ISO certificate. We provide the same or similar project case references. Site or remote FAT acceptance are provided strictly and comprehensively for customer’s confirm. The parameters, features, appearance and Operation reliability are confirmed one by one.
○ Automatic cup sorting with an elevator and vibrating plate
○ An extra-large stainless steel hopper lifts capsules onto a vibrating sorting plate via an elevator
○ A gripping system picks up the cups and places them into the machine’s die hole

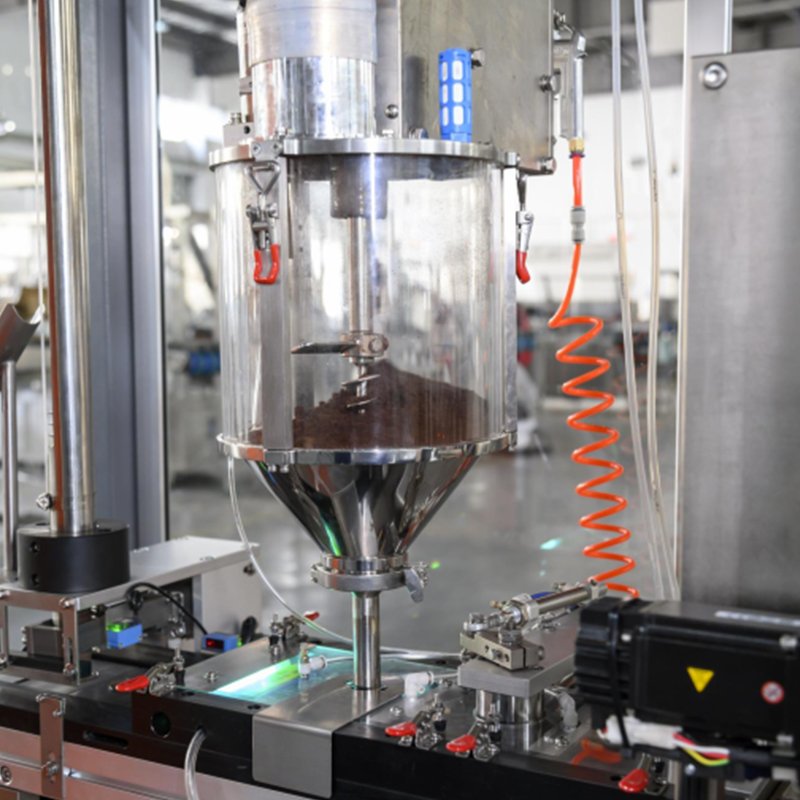

○ A servo motor drives a refined screw for filling and feeding
○ A stirring function ensures uniformity of material in the barrel
○ Visible barrel
○ The entire unloading system can be removed for cleaning and maintenance
○ The barrel cups are equipped with a level sensor, providing a signal to the automatic instant refill system

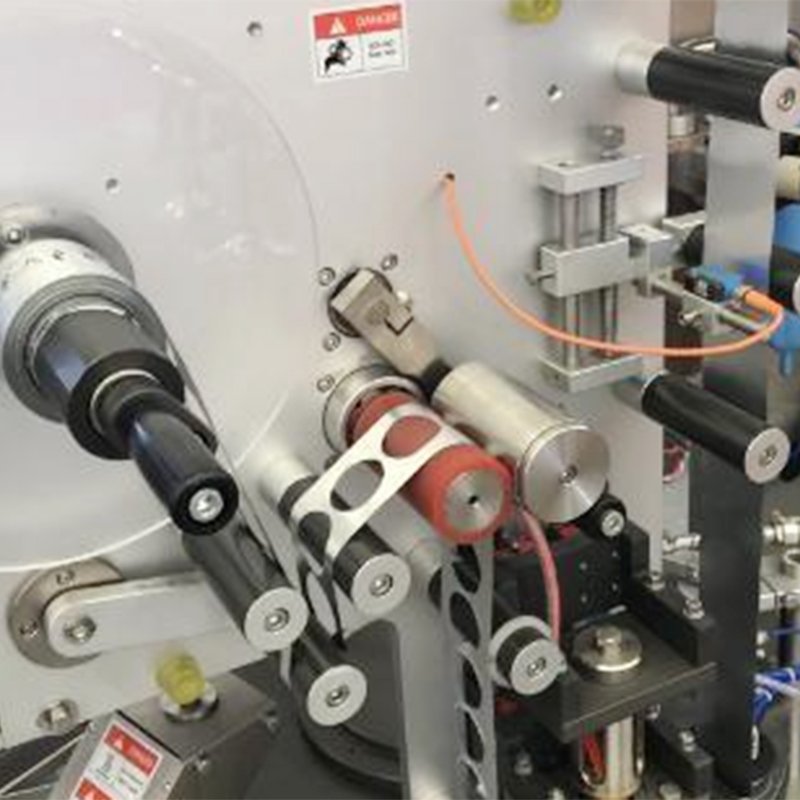

○ A servo motor controls the film roll’s circular motion
○ Cursor recognition ensures the film roll travels the same distance each time
○ Special materials and precision-machined serrated blades ensure high film cutting accuracy, with an offset error of 0.3mm
○ Ample space for loading and unloading new and used rolls ensures continuous machine operation
