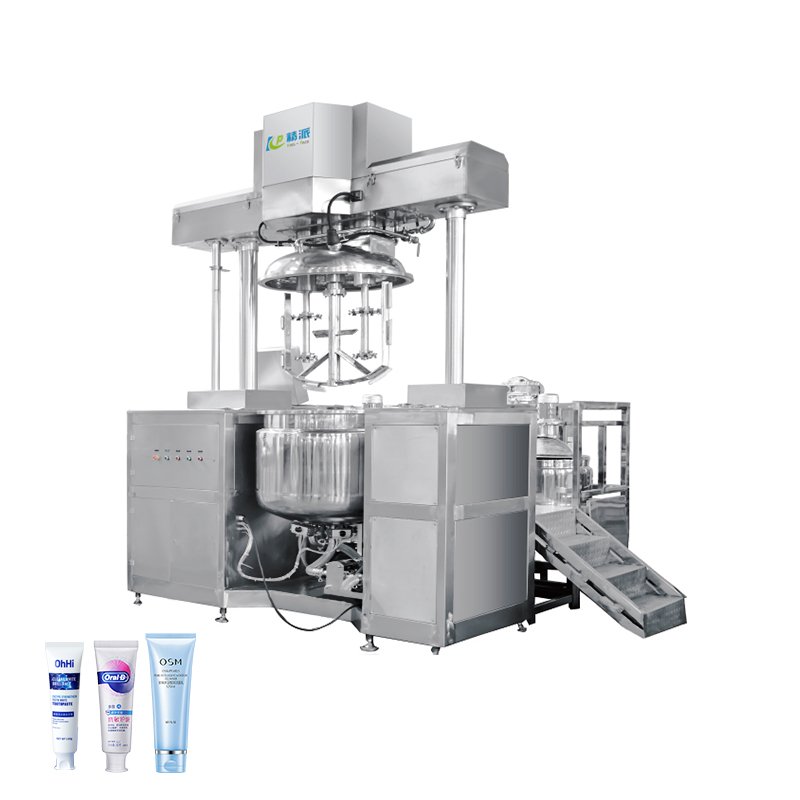

Mainpot： Working volume (L)：500 Scraper stirring power (kw)：5.5 Scraper stirring speed (rpm)：0~62 Dispersing power (KW)*2：5.5 Dispersing speed (rmp)：0~1400 Hydraulic Lifting power (kw)：2.2 Sealing method：Mechanical seal, Oil seal Water pot： Working volume (L)：300 Dispersing speed (rmp)：1400 Dispersing power (kw)：1.1 Electric heating power (kw)：12 Oil pot： Working volume (L)：200 Dispersing speed (rmp)：120 Dispersing power (kw)：1.1 Electric heating power (kw)：12 Powder tank： Working volume (L)：500 Mixing power (kw)：2.2 Mixing speed (kw)：42 Size（L×W×H）mm：2880*2575*2850（3840） Main machine： Overall (L×W×H) mm：2880*2575*2850（3840）

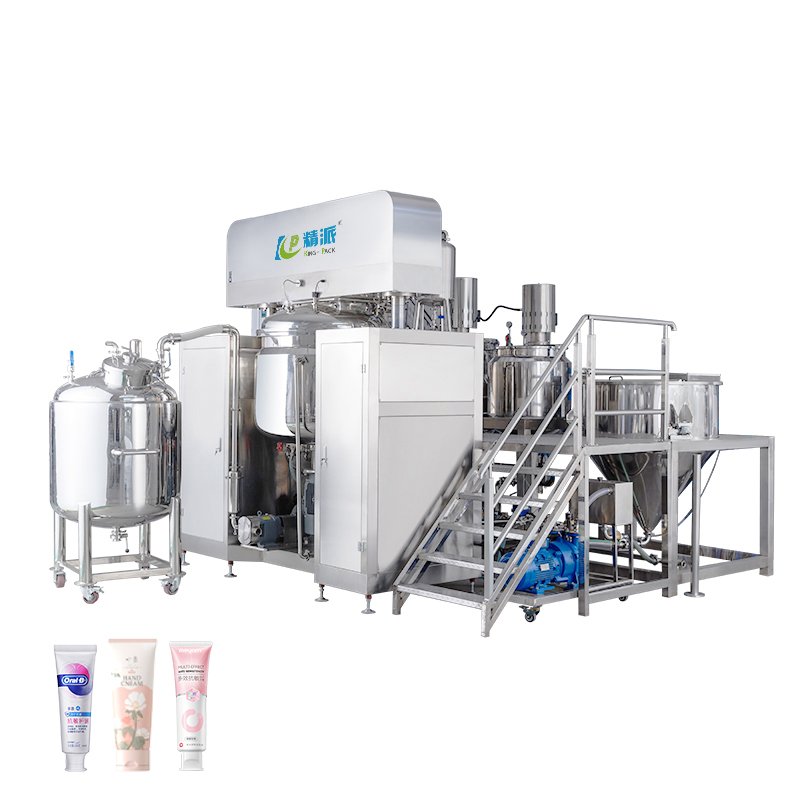

Capacity: 300L (Design 350L)Structure: 3-layer pot with heating, insulation, cooling, and vacuum systemStirring: Frame wall scraping, two-way; external PTFE scraper; 2.2 kW; 0-63 rpm; SS 316 agitatorHomogenizer: Upper homogenizer; 5.5 kW; 0-3000 rpm; SS 316Sealing: Skeleton oil seal (pot and homogenizer)Cover: Sealed, non-openingHeating: Electric 12 kWFeeding: Vacuum suction or direct feedDischarge: Bottom discharge; φ50mm SS ball or butterfly valveTemperature Display: Electric thermometerVacuum Display: Pointer vacuum gaugePan Lid Features: Material filter, vacuum ports, inspection lamp, mirror with scraper, spice bucket, rotary cleaning ball, air respiratorCleaning: 360° rotary cleaning ball
