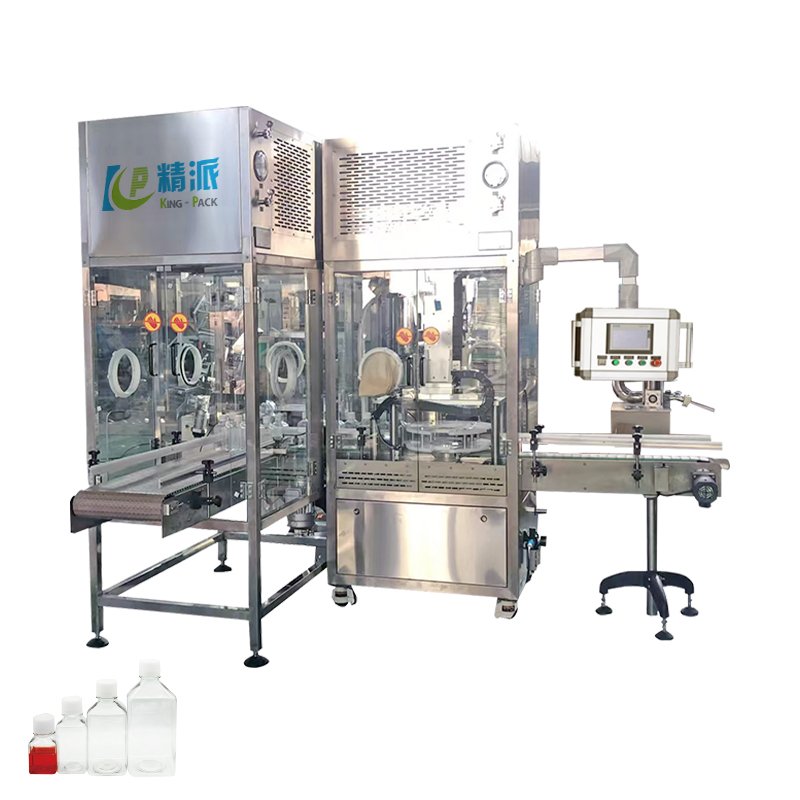

Output: Depends on actual operationFilling method: Peristaltic pumpFilling volume: 500–1000 mlFilling accuracy: ±2%, approx. 5 bottles/minCap opening and locking: Three-jaw capping head, servo motor driven, torque can be set and detectedClean bottle conveying: Conveyor belt + linear module, Zone A and Zone B operate independentlyControl system: Touch screen + PLC controlPower supply: 220V, 50Hz, 1P, 3.2KWAir supply: 3–5 Kg/cm², 0.3 m³/minLaminar flow hood: Class 100Weight: Approx. 600 KgMain machine dimensions: 900 × 800 mm

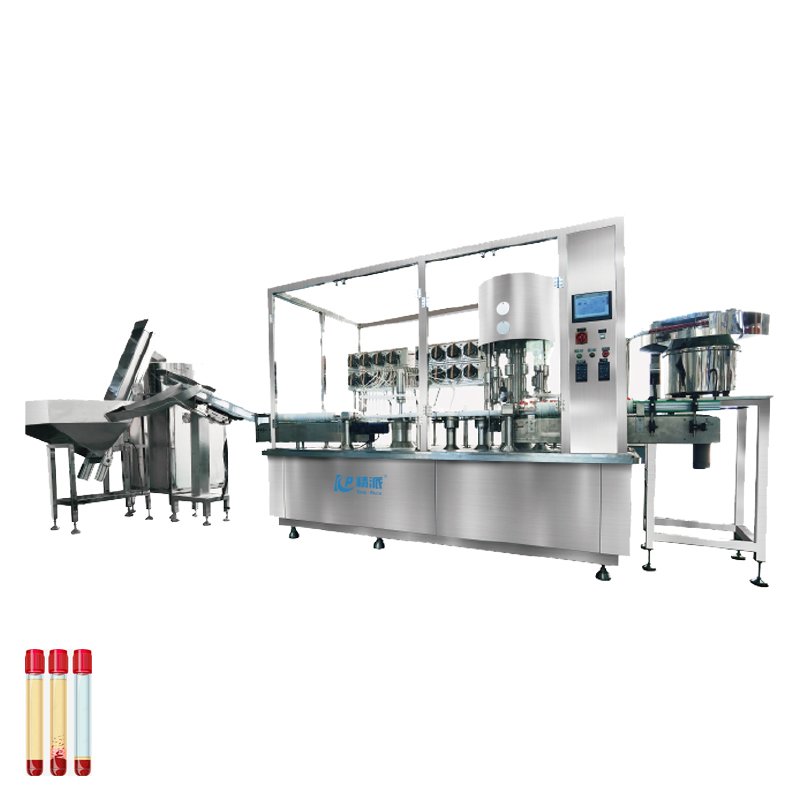

Model:  KPGX-16-12 Applicable Bottle Type: Reagent tubes, customized according to customer samples Filling Volume: 3–15 ml (customizable) Production Capacity: 160–230 bottles/min Filling Heads: 16 Capping Heads: 12 Filling Accuracy: ≤ ±1–3% Capping Qualification Rate: ≥ 99.8% Compressed Air Pressure: 0.4–0.6 MPa Compressed Air Consumption: 5–10 L/min Total Power: 6 kW, 220V, 50Hz Net Weight: ≤ 2500 kg Machine Dimensions (L×W×H): 3000 × 1800 × 1800 mm (refer to layout drawing)
